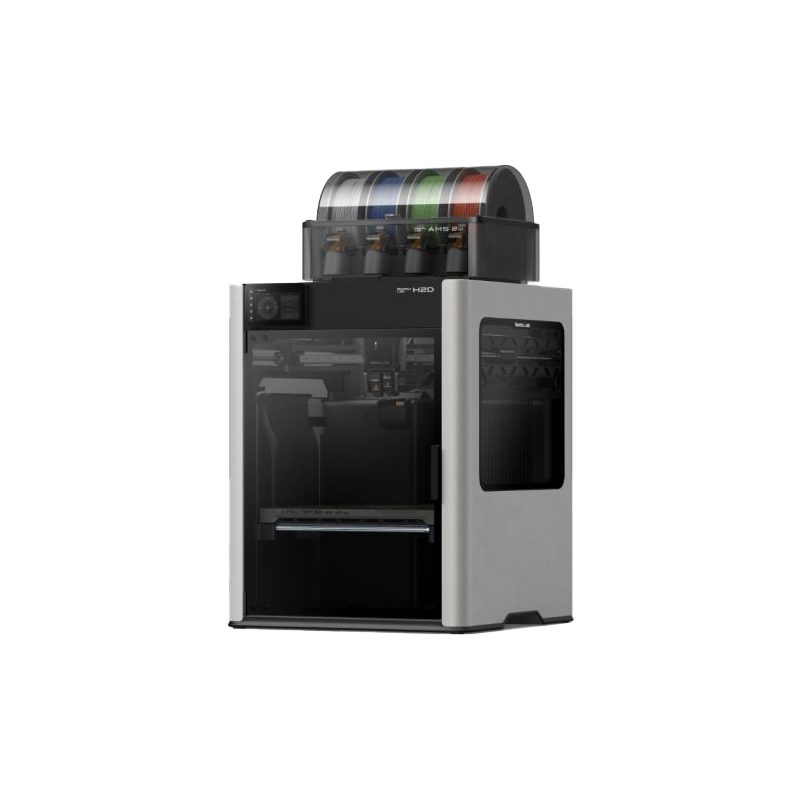

Bambu Lab H2D Pro Combo 3D Printer

Printing Technology

• Technology: Fused Deposition Modeling (FDM)

Body & Build Volume

• Build Volume
• Single Nozzle Printing: 325 × 320 × 325 mm³
• Dual Nozzle Printing: 300 × 320 × 325 mm³
• Total Volume for Two Nozzles: 350 × 320 × 325 mm³
• Chassis: Aluminum and Steel
• Outer Frame: Plastic and Glass

Physical Dimensions

• Printer Dimensions: 492 × 514 × 626 mm³
• Net Weight: 31 kg

Toolhead

• Hotend: All Metal
• Extruder Gear: Hardened Steel
• Nozzle: Tungsten Carbide
• Max Nozzle Temperature: 350 ℃
• Included Nozzle Diameter: 0.4 mm
• Supported Nozzle Diameters: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
• Filament Cutter: Built-in
• Filament Diameter: 1.75 mm
• Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor

Heatbed

• Build Plate Material: Flexible Steel Plate
• Included Build Plate Type: Textured PEI Plate
• Supported Build Plate Types: Textured PEI Plate, Smooth PEI Plate
• Max Heatbed Temperature: 120 ℃

Speed

• Max Speed of Toolhead: 1000 mm/s
• Max Acceleration of Toolhead: 20,000 mm/s²
• Max Flow for Hotend: 40 mm³/s
  (Test parameters: 250 mm round model with single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)

Chamber Temperature Control

• Active Chamber Heating: Supported
• Max Chamber Temperature: 65 ℃

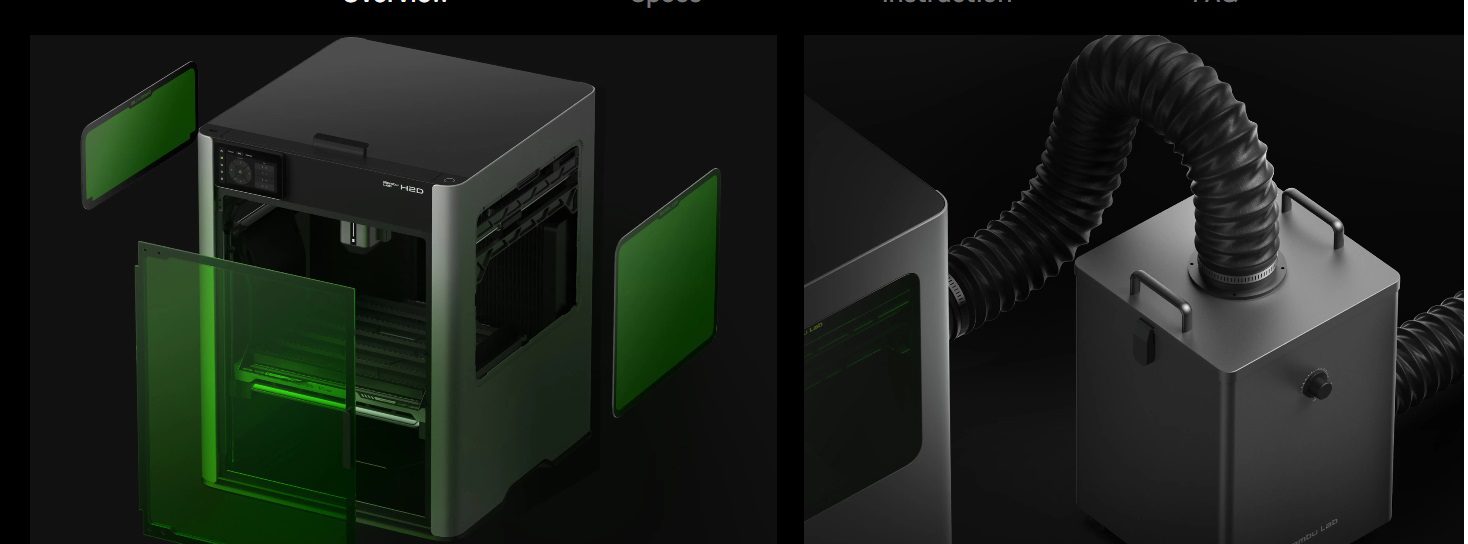

Air Purification

• Pre-filter Grade: G3
• HEPA Filter Grade: H12
• Activated Carbon Filter: Granulated Coconut Shell
• VOC Filtration: Superior
• Particulate Matter Filtration: Supported

Cooling System

• All fans use Closed Loop Control:
• Part Cooling Fan
• Hotend Cooling Fan
• Main Control Board Fan
• Chamber Exhaust Fan
• Chamber Heat Circulation Fan
• Auxiliary Part Cooling Fan
• Toolhead Enhanced Cooling Fan

Supported Filament Types

• Optimal: PLA, PETG, TPU, PVA, BVOH
• Superior: ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA
• Ideal: PPA-CF/GF, PPS, PPS-CF/GF

Sensors & Smart Features

• Live View Camera: Built-in, 1920 × 1080
• Nozzle Camera: Built-in, 1920 × 1080
• Toolhead Camera: Built-in, 1920 × 1080
• Door Sensor: Supported
• Filament Run-out Sensor: Supported
• Filament Tangle Sensor: Supported
• Filament Odometry: Supported with AMS
• Power Loss Recovery: Supported

Electrical Requirements

• Voltage: 100–120 VAC / 200–240 VAC, 50/60 Hz
• Max Power:
• 2200 W @ 220 V
• 1320 W @ 110 V
•  Please purchase the version corresponding to your region’s voltage

Working Environment

• Operating Temperature: 10 ℃ – 30 ℃

Electronics & Control

• Touchscreen: 5-inch, 720 × 1280 Touchscreen
• Storage: Built-in 32 GB EMMC & USB Port
• Control Interface: Touchscreen, Mobile App, PC App
• Motion Controller: Dual-core Cortex-M4 & Single-core Cortex-M7
• Application Processor: Quad-core 1.5 GHz ARM A7
• Neural Processing Unit: 2 TOPS

Software

• Slicer: Bambu Studio
• Third-Party Slicer Support: Super Slicer, PrusaSlicer, Cura (standard G-code supported; some advanced features may not be available)
• Supported OS: MacOS, Windows

Network Control

• Ethernet: Available
• Wireless Network: Wi-Fi
• Network Kill Switch: Wi-Fi and Ethernet
• Removable Network Module: Available
• 802.1X Network Access Control: Available

Wi-Fi

• Operating Frequency:
  • 2412–2472 MHz, 5150–5850 MHz (FCC/CE)
  • 2400–2483.5 MHz, 5150–5850 MHz (SRRC)
• Transmitter Power (EIRP):
  • 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
  • 5 GHz Band 1/2: <23 dBm (FCC/CE/SRRC/MIC)
  • 5 GHz Band 3: <30 dBm (CE); <24 dBm (FCC)
  • 5 GHz Band 4: <23 dBm (FCC/SRRC); <14 dBm (CE)
• Protocol: IEEE 802.11 a/b/g/n

Ethernet

• Port Type: RJ45
• Speed: 100 Mbps Full-Duplex

AMS 2 Pro

• Dimensions: 372 × 280 × 226 mm³
• Net Weight: 2.5 kg
• Housing Material: ABS/PC

Filament Support

• Supported:
  PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS,
  Bambu PLA-CF / PAHT-CF / PETG-CF, Support for PLA/PETG, and TPU for AMS
• Not Supported:
  TPE, generic TPU, PVA (damp), BVOH (damp), Bambu PET-CF / TPU 95A, and other filaments with carbon fiber or glass fiber
• Filament Diameter: 1.75 mm
• Spool Dimension:
  • Width: 50–68 mm
  • Diameter: 197–202 mm
• RFID Identification: Supported

Performance

• Highest Temperature: 65 ℃
• Active Moisture Discharge: Supported
• Sealed Storage: Supported
• Temperature & Humidity Detection/Maintenance: Supported (real-time data viewable on screen, Bambu Studio, and Bambu Handy)

Power

• Input: 24 V 4 A

AMS HT

• Dimensions: 114 × 280 × 245 mm³
• Net Weight: 1.21 kg
• Housing Material: PC/PA
• Flame Retardant Grade: UL 94 V-0
• Screen: Displays real-time temperature, humidity, and remaining drying duration

Filament Support

• Feeder Unit Inlet (Supported):
  PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS,
  Bambu PLA-CF / PAHT-CF / PETG-CF, Support for PLA/PETG, and TPU for AMS
• Bypass Filament Outlet (Supported):
  TPE, generic TPU, Bambu PET-CF / TPU 95A, and other filaments with carbon fiber or glass fiber
• Not Supported: PVA (damp), BVOH (damp)
• Filament Diameter: 1.75 mm
• Spool Dimension:
  • Width: 50–68 mm
  • Diameter: 197–202 mm
• RFID Identification: Supported
• Filament Odometry: Supported

Performance

• Maximum Temperature: 85 ℃
• Active Moisture Discharge: Supported
• Rotating Drying Mode: Supported
• Sealed Storage: Supported
• Top Lid Open Detection: Supported
• Temperature & Humidity Detection/Maintenance: Supported (real-time data viewable on printer screen, AMS HT screen, Bambu Studio, and Bambu Handy)

Power

• Voltage:
  • DC: 24 V
  • AC: 100 V–240 V~, 50/60 Hz
• Average Power: 150 W

Package Includes:

1 x Bambu Lab H2D Pro

1 x Bambu Lab AMS 2 Pro

1 x Bambu Lab AMS HT

1 x  Vision Encoder Plate

1 x Textured  PEI build plate

1 x Accessory Box

1 x Safety Key
