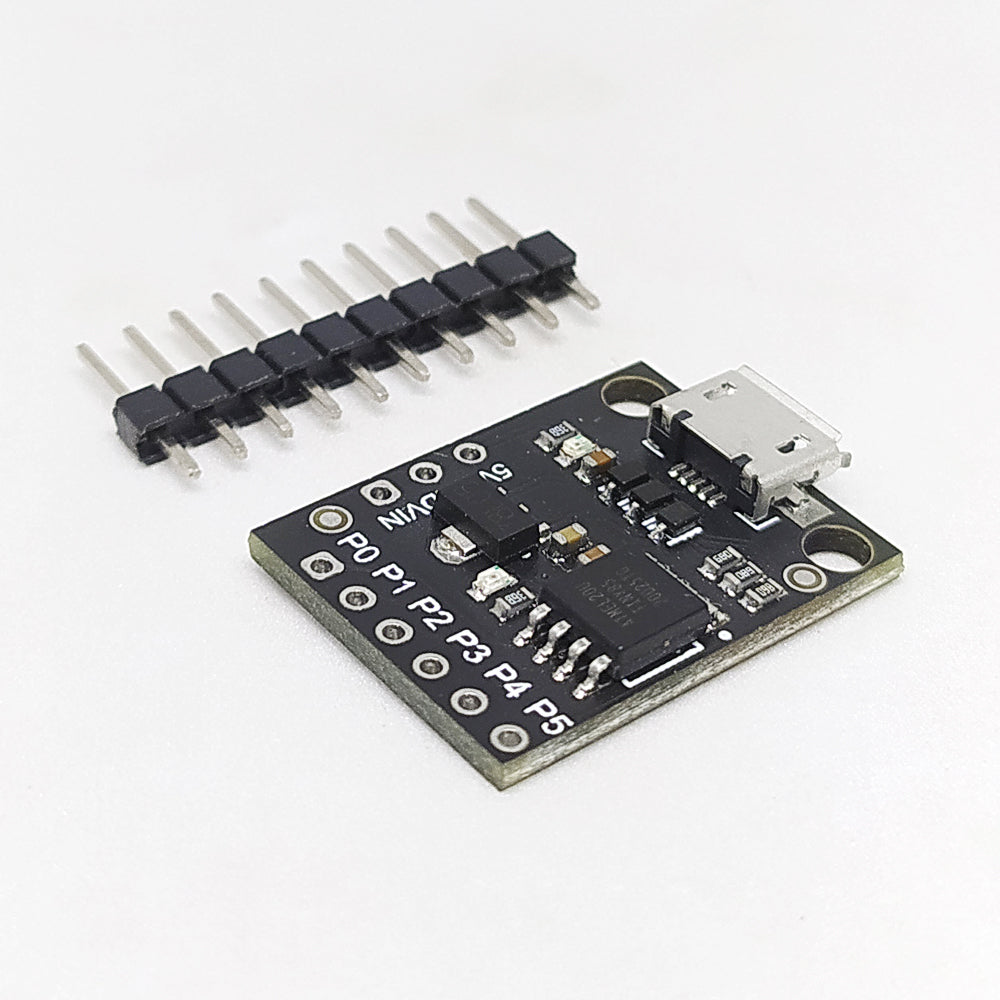

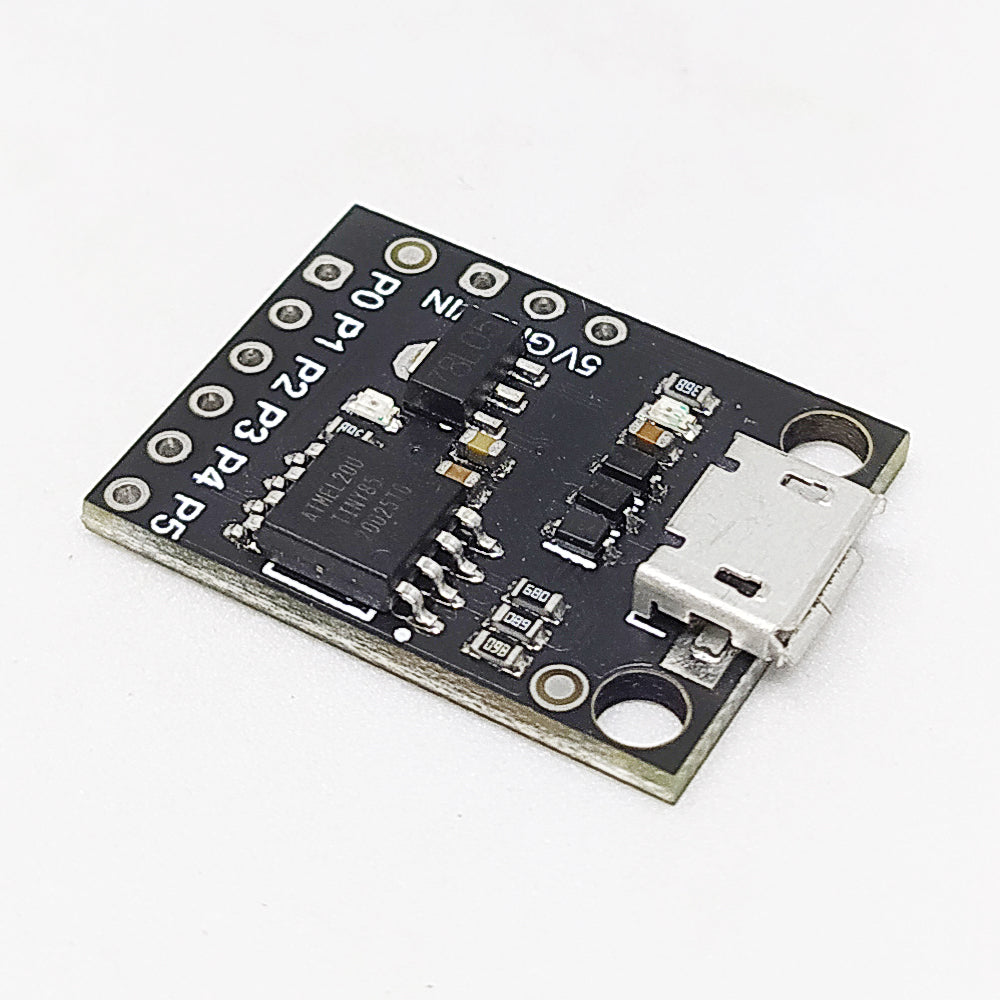

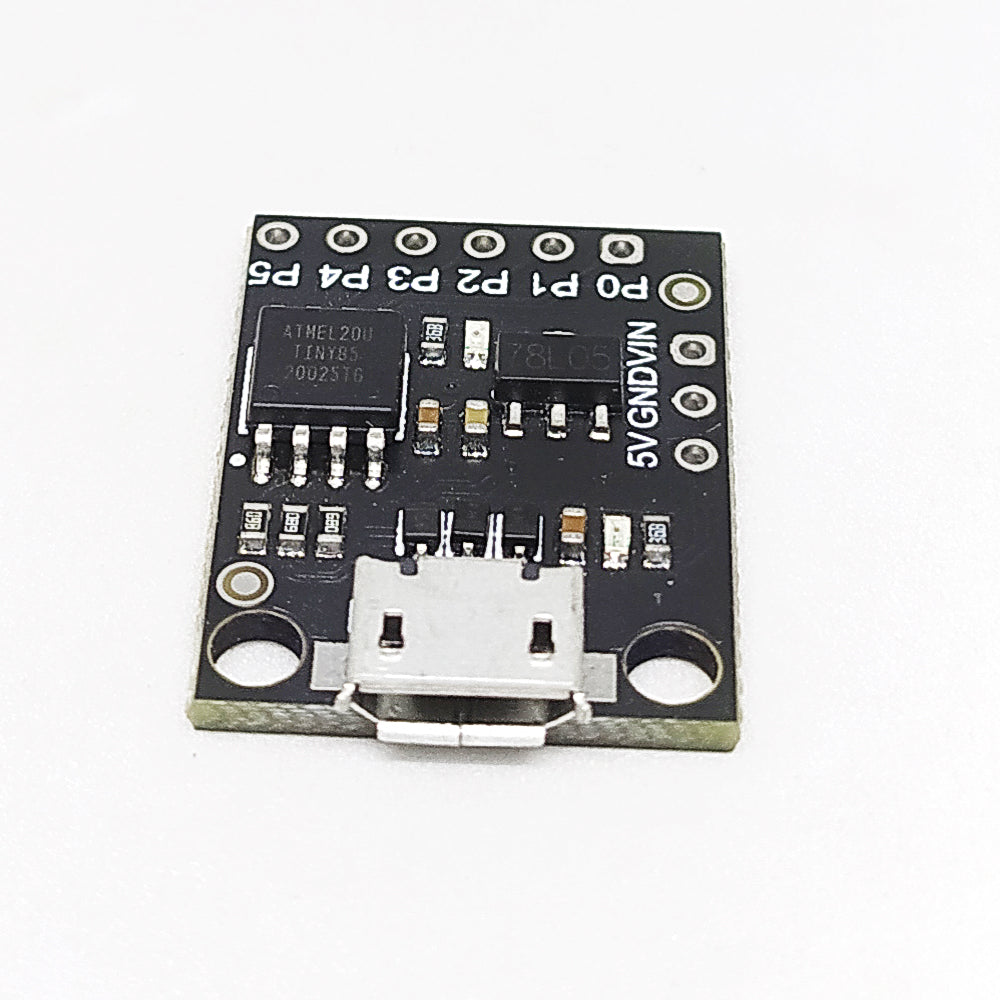

Attiny85 Mini USB MCU Development Board for Arduino

1. High Performance, Low Power AVR® 8-Bit Microcontroller
2. Non-volatile Program and Data Memories
3. 512 Bytes In-System Programmable EEPROM
4. 512 Bytes Internal SRAM
5. USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
6. 10-bit ADC
7. 4 Single Ended Channels
8. Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
9. Low Power Consumption
10. Active Mode:1 MHz, 1.8V: 300 µA

The attiny85 based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino ide, this board is a great way to jump into microcontroller electronics. Applications: Support for the Arduino ide 1. 0+ (osx/win/linux). Power via USB or external source - 5v or 7-16v (automatic selection). On-board 150ma 5v regulator. Built-in USB (and serial debugging). 6 i/o pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB) 8k flash memory (about 6k after boot loader) i2c and spi (via usi) pwm on 3 pins (more possible with software pwm) a DC on 4 pins power LED and test/status LED.

Features :

1. High Performance, Low Power AVR® 8-Bit Microcontroller
2. Non-volatile Program and Data Memories
3. 8K Bytes of In-System Programmable Program Memory Flash
4. Endurance: 10,000 Write/Erase Cycles
5. 512 Bytes In-System Programmable EEPROM
6. 512 Bytes Internal SRAM
7. Peripheral Features
8. Two High-Frequency PWM Outputs with Separate Output Compare Registers
9. USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
10. 10-bit ADC
11. 4 Single Ended Channels
12. Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
13. Speed Grade
14. 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
15. Industrial Temperature Range
16. Low Power Consumption
17. Active Mode:1 MHz, 1.8V: 300 µA
