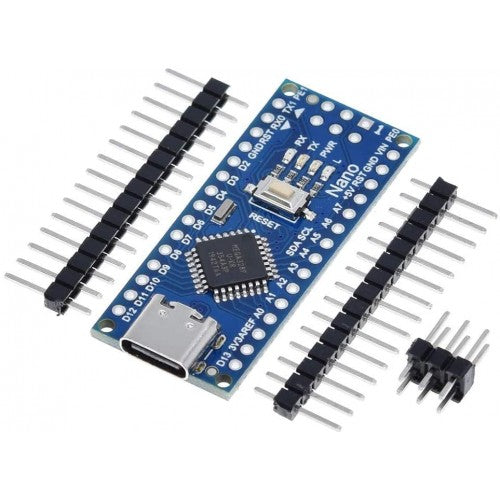

Arduino Nano Type-C CH340 (Unsoldered)

Rs. 259.00
Rs. 259.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption

The Arduino Nano Type-C CH340 (Unsoldered) is a compact, breadboard-friendly microcontroller board based on the ATmega328, with a USB Type-C interface and a CH340 USB-to-serial converter. Compatible with the Arduino IDE, it suits prototyping, embedded learning, and everyday maker projects.

Features

  1. Based on ATmega328 microcontroller
  2. USB Type-C interface for modern connectivity
  3. Uses CH340 USB to Serial converter (driver required)
  4. Compact and breadboard-friendly DIP form factor
  5. Supports UART, SPI, and I2C communication
  6. Onboard voltage regulator for stable 5V and 3.3V supply
  7. Compatible with Arduino IDE

Specifications

  • Microcontroller: ATmega328
  • USB Interface IC: CH340
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7–12V
  • Digital I/O Pins: 14 (6 PWM outputs)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (ATmega328P), 2 KB used by bootloader
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • USB Connector: Type-C
  • Package Type: DIP (dual inline package)
