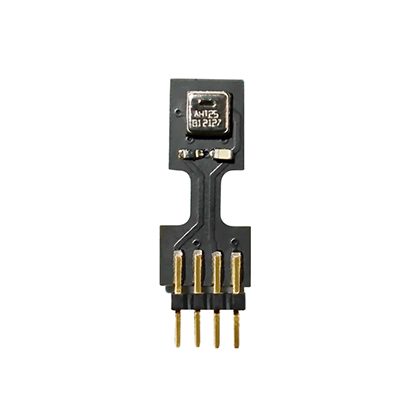

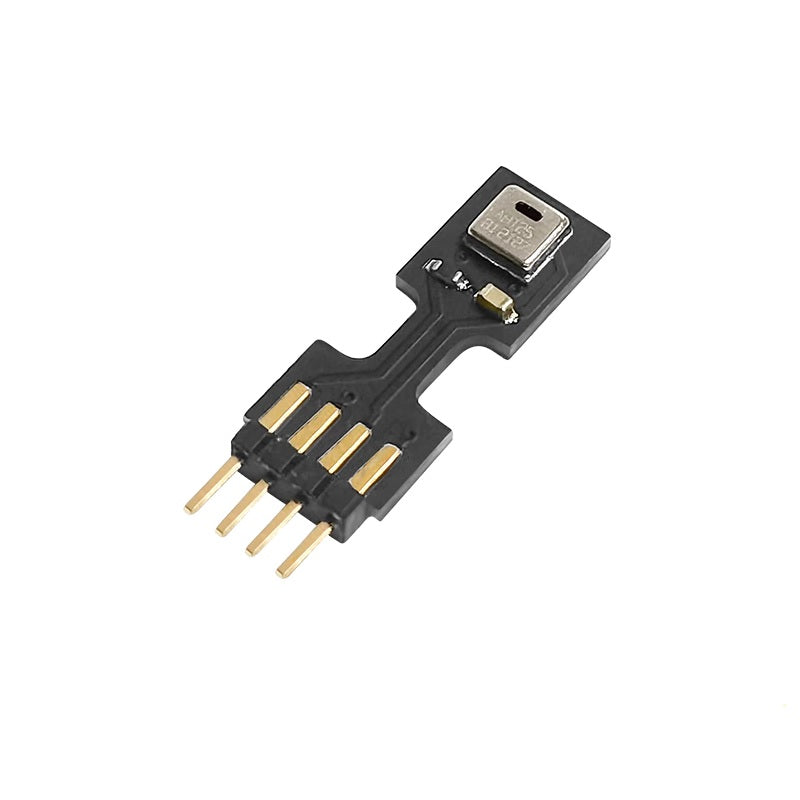

AHT25 Integrated Temperature And Humidity Sensor

AHT25 Integrated temperature and humidity sensor -40 ~ + 80 ℃. The AHT25 temperature and humidity sensor is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor, and a standard temperature sensor element. Its performance has reached the industry’s advanced level. The improved new generation temperature and humidity sensor AHT25 has a more stable performance in harsh environments and can maintain good accuracy in a larger measurement range. AHT25 uses standard-pitch plug-in connectors, which can be easily replaced in applications. Every sensor has been rigorously calibrated and tested. Due to the improvement and miniaturization of the sensor, its cost performance has become higher. This product is known as a Temperature sensor, Temperature and humidity sensor, AHT25 Temperature, AHT25 Temperature and humidity sensor, AHT25 Sensor.

Features:

• Fully calibrated
• Digital output, I²C interface
• Excellent long-term stability
• Quick response and strong anti-interference ability
• Relative humidity and temperature output
• Excellent long-term stability
• Fast-response and anti-interference capability
• Superior sensor performance

Features/Specs:

• Part No: AHT25
• Temperature Sensing Range: -40 ~ +80℃
• Operating Voltage: 2.2 to 5.5VDC
• Sensor performance accuracy: ±3%, T: ±0.5℃
• Signal Output: I2C signal
• I²C address: 0x38
• Typical accuracy RH: ±3%, T: ±0.5℃
• Length: 16.5 mm
• Width: 6 mm
• Approx Weight: 1 gm

Applications:

• Industrial equipment
• Warming Electrical Radiators
• Calibration and Instrumentation
• Heating/cooling systems
• Laboratory

Package Includes:

• 1 x AHT25 Integrated Temperature And Humidity Sensor

Note: Product Images are shown for illustrative purposes only and may differ from the actual product
