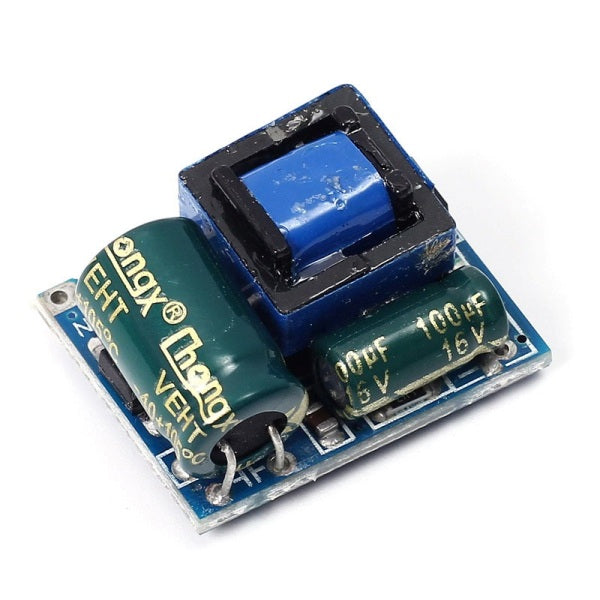

AC-DC 5V 600mA 3W Isolated Switching Power Supply Module

• Input Voltage Range: AC 85-277V; DC 70-390V

•  No Load Power: <0.05W; max input power: 3.5W

•  Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW

•  Output Current: 0-600mA; output indicator lamp 1mA red light

•  Output Power: 3W; efficiency 80%

•  Output Indicator: 1mA Red Light

•  Size: 23.5 * 16 * 13.5mm

AC-DC 5V 600mA 3W Isolated Switching Power Supply Module 220V to 5V Buck Step Down Module Voltage Regulator for Arduino

This Isolated Switching Power Supply is isolated industrial power modules, with a temperature protection, over current and short circuit full protection, high and low voltage isolation, AC85 ~ 265V wide voltage input, AC and DC, 431 DC5V output voltage precision, ultra-small size, high reliability, cost performance characteristics.

Description:

•  Input Voltage Range: AC 85-277V; DC 70-390V

•  No Load Power: <0.05W; max input power: 3.5W

•  Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW

•  Output Current: 0-600mA; output indicator lamp 1mA red light

•  Output Power: 3W; efficiency 80%

•  Output Indicator: 1mA Red Light

•  Size: 23.5 * 16 * 13.5mm

•  Output Protection: over voltage, over current, over temperature, overpower, short circuit protection etc

•  Applications: for zero line, live line intelligent switch, intelligent socket, equipment and instructions, other controllers etc

•  Working temperature:-25~85℃

Installation Way:

•  Solder the input and output port pin on the PCB as independent components

•  Solder the lead wire, and use the glue to fix

•  PCB slotting, directly plug it on the PCB to solder

Note:

If it is used  in single live line intelligent on-off value, take off the LED and change the starting resistor will be OK; if you want to change 10M resistor into 20M, just remove the LED.
