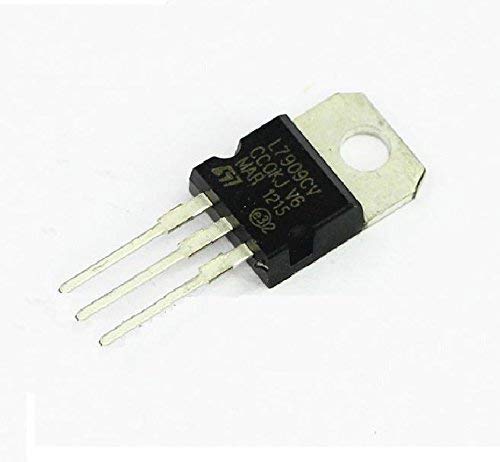

7909 Voltage Regulator IC -9V
7909 Voltage Regulator IC -9V
Couldn't load pickup availability
Description:-
OUTPUT CURRENT UP TO 1.5 A
OUTPUT VOLTAGESOF -5; -5.2; -6; -8; -9; -12; -15; -18; -20; -22; -24V
THERMAL OVERLOADPROTECTION
SHORT CIRCUIT PROTECTION
OUTPUT TRANSITION SOA PROTECTION
--
The L7909 series of three-terminal negative regulators is available in TO-220, ISOWATT220 TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L7800 positive standard series, they are particularly suited for split power supplies. In addition, the -5.2V is also available for ECL system. If adequate heat sinking is provided, they can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents
