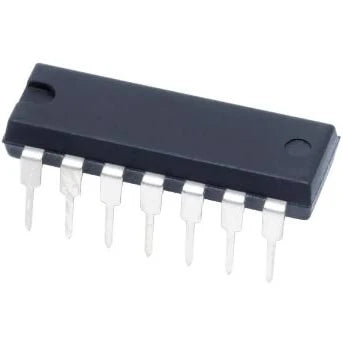

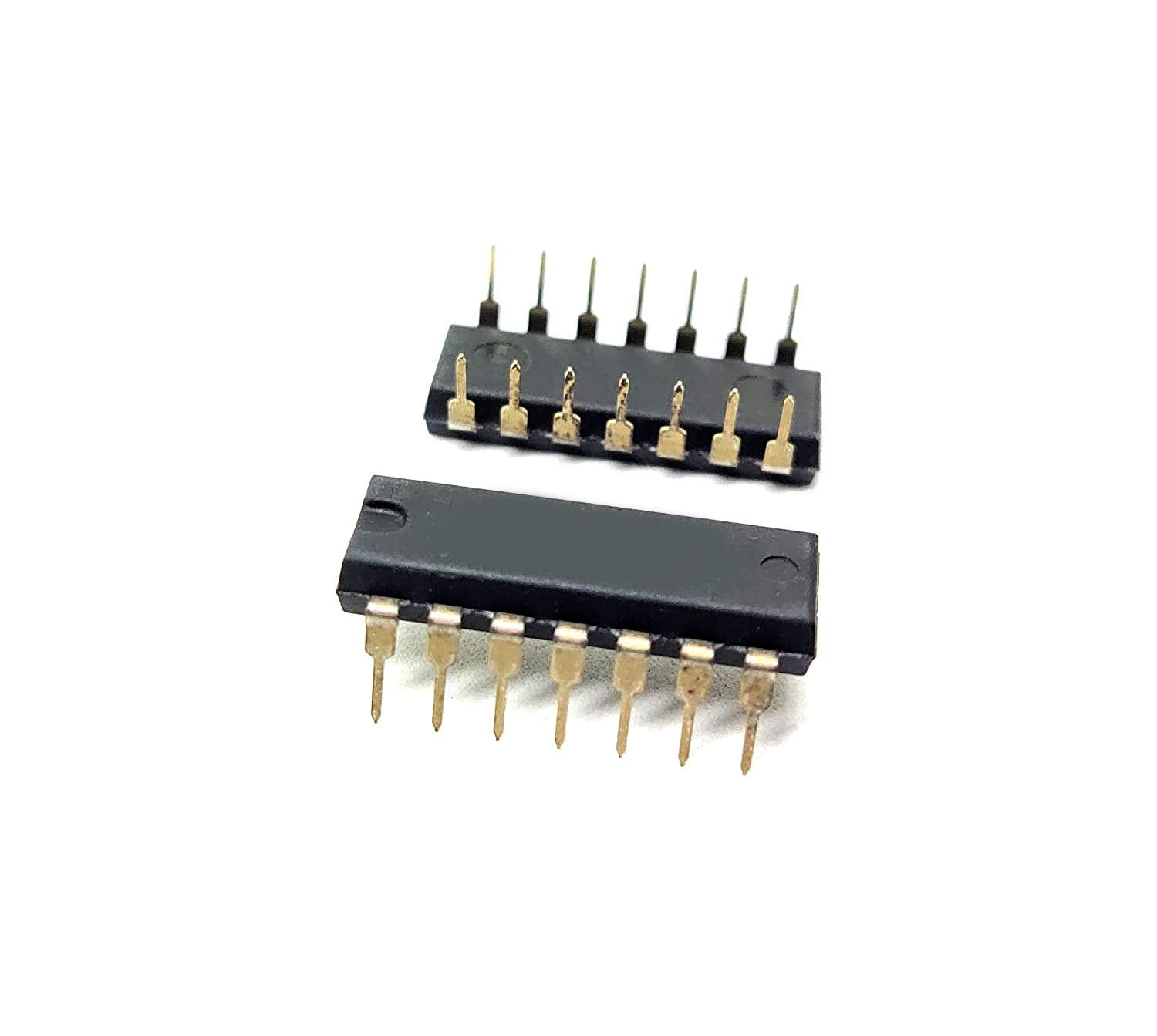

74266 Quad 2 Input Exclusive-NOR Gate IC
74266 Quad 2 Input Exclusive-NOR Gate IC
Regular price
Rs. 85.00
Regular price
Sale price
Rs. 85.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
| Number of Pins | 14 |
| Technical | |
| High Level Output Current | -100 µA |
| Logic Function | XNOR |
| Low Level Output Current | 8 mA |
| Max Operating Temperature | 70 °C |
| Max Output Current | 8 mA |
| Max Supply Voltage | 5.25 V |
| Min Operating Temperature | 0 °C |
| Min Supply Voltage | 4.75 V |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5 V |
| Output Current | 8 mA |
| Propagation Delay | 30 ns |
| Quiescent Current | 8 mA |
| Termination | Through Hole |
This device contains four independent gates each of which performs the logic exclusive-NOR function. Outputs are open collector.
