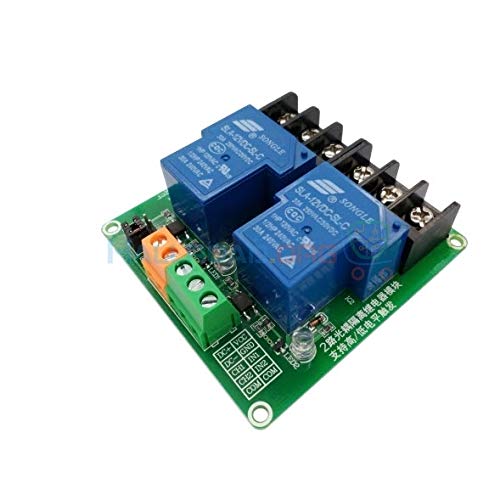

5V 2Ch 30A Relay Module with Optocoupler H/L Level Trigger

Rs. 699.00 Rs. 750.00
The module voltage: 5V Output capacity: within DC 30V 30A or AC 250V 30A. Using optocoupler isolation, strong anti-jamming capability and stable performance. The module can be set high or low trigger.--This is a relay module with high performance, which is convenient and practical for users. Features: The module voltage:...

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

The module voltage: 5V
Output capacity: within DC 30V 30A or AC 250V 30A.
Using optocoupler isolation, strong anti-jamming capability and stable performance.
The module can be set high or low trigger.


--

This is a relay module with high performance, which is convenient and practical for users. Features: The module voltage: 5V, Output capacity: within DC 30V 30A or AC 250V 30A. Using optocoupler isolation, strong anti-jamming capability and stable performance. The module can be set high or low trigger. With power indicator and working indicator. To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals. All interfaces can be connected directly via terminal wiring leads, very convenient. Module Interface Description: 1. DC +: DC power supply positive; 2. DC -: DC power supply module negative; 3. IN: Signal input terminal(support High/Low Level switch freely); 4. Normally open (NO): Relay normally open; 5. Common terminal (COM): Relay common; 6. Normally closed terminal (NC): relay normally closed terminal; Specifications: Type: 2-Channel Relay Voltage: 5V Output Capacity: within DC 30V 30A or AC 250V 30A Quiescent Current: 5mA Maximum Current: 5V: 190mA; Trigger Current: 5mA Module Size: 1-Channel: 66 * 40 * 22mm; 2-Channel: 69 * 66 * 22mm Module Weight: 2-Channel: 90g Package List: 1 * Relay Module

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
5V 2Ch 30A Relay Module with Optocoupler H/L Level Trigger
