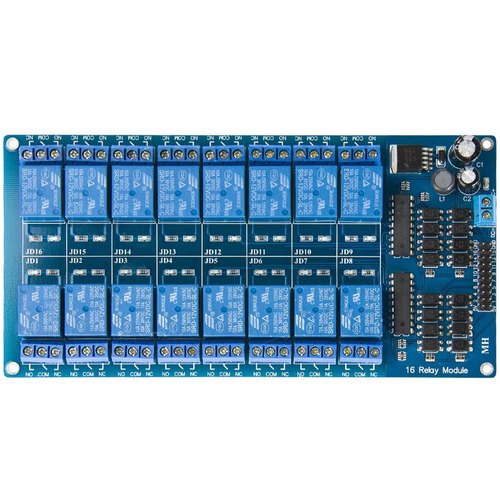

5V 16Ch 10A Relay Module with Optocoupler

Rs. 699.00 Rs. 850.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • 5V relay with AC contact capacity of 10A 250V and optocoupler protection.
  • Onboard power supply module does not need an external power supply. I / O port driver is active low.
  • The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
  • It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
  • The 1-16 road can be any full on/off or any road.
  • Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
  • Each relay is equipped with motion lights.
  • All interfaces can be directly connected through the terminal leads, very convenient.

  • Working voltage: 5 Volts
  • Maximum Current: 500 mA
  • Low State Voltage: 0 - 0.5 volts (Relay is ON)
  • High State Voltage: 3.7 to 5 volts  (Relay is OFF)
  • Number of Channel: 16
  • Dimension: 180 x 90 x 20mm (L x W x H)
  • Weight: 100 g
  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
