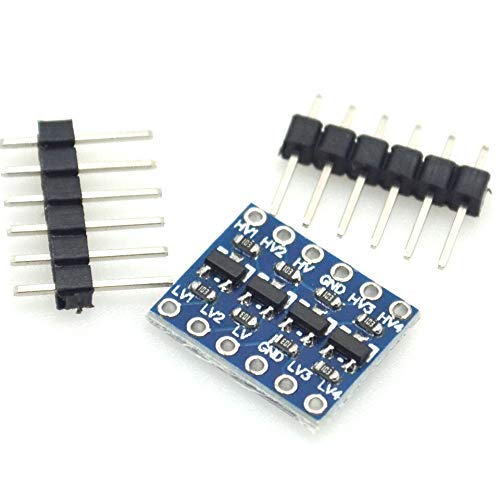

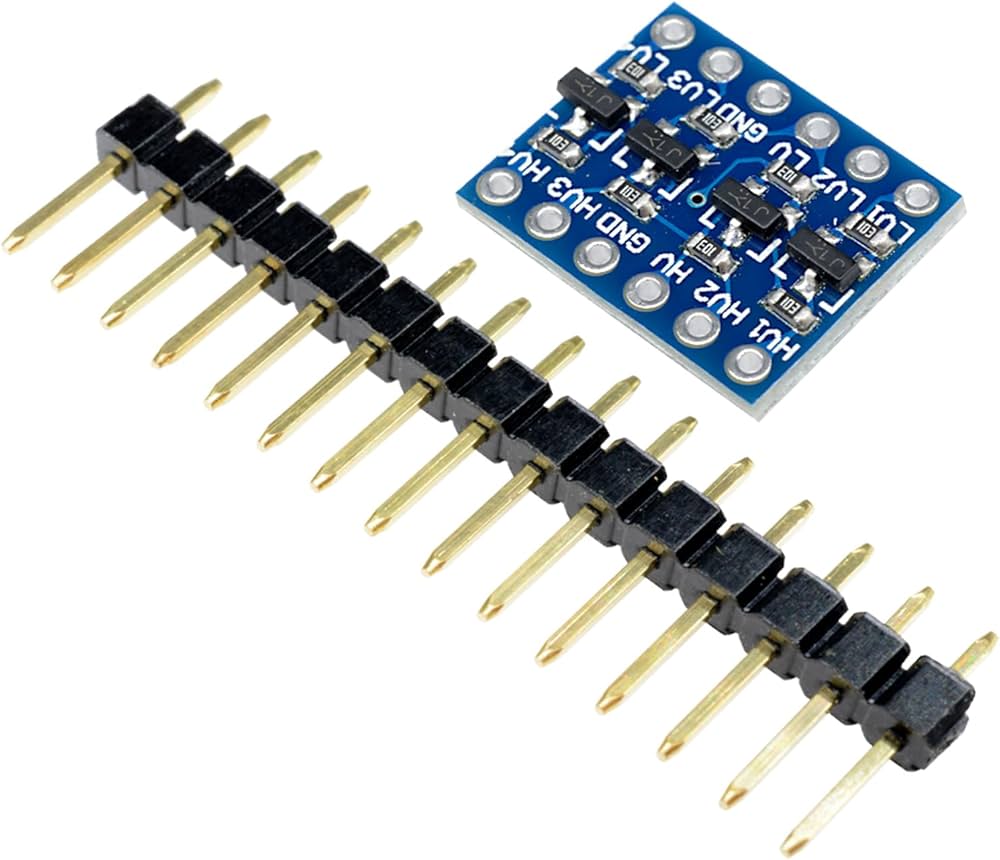

4 Channel LLC I2C Logic Level Converter Bi-Directional Module 5V to 3. 3V
Subcribe to back in stock notification
All Prices Incuding GST
All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number
Estimated time to pack : 15 Mins.
11 AM- 7 PM
Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha
Same Day Dispatch.
Shipping Charge Flat-70/-
Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
Number of Channels: 4 Voltage on Lx Side: 1.8V-5V Voltage on Hx Side: 2.8V-6V Power: 2.8V - 6V Conversion Method: MOSFET Based (without signal inversion)

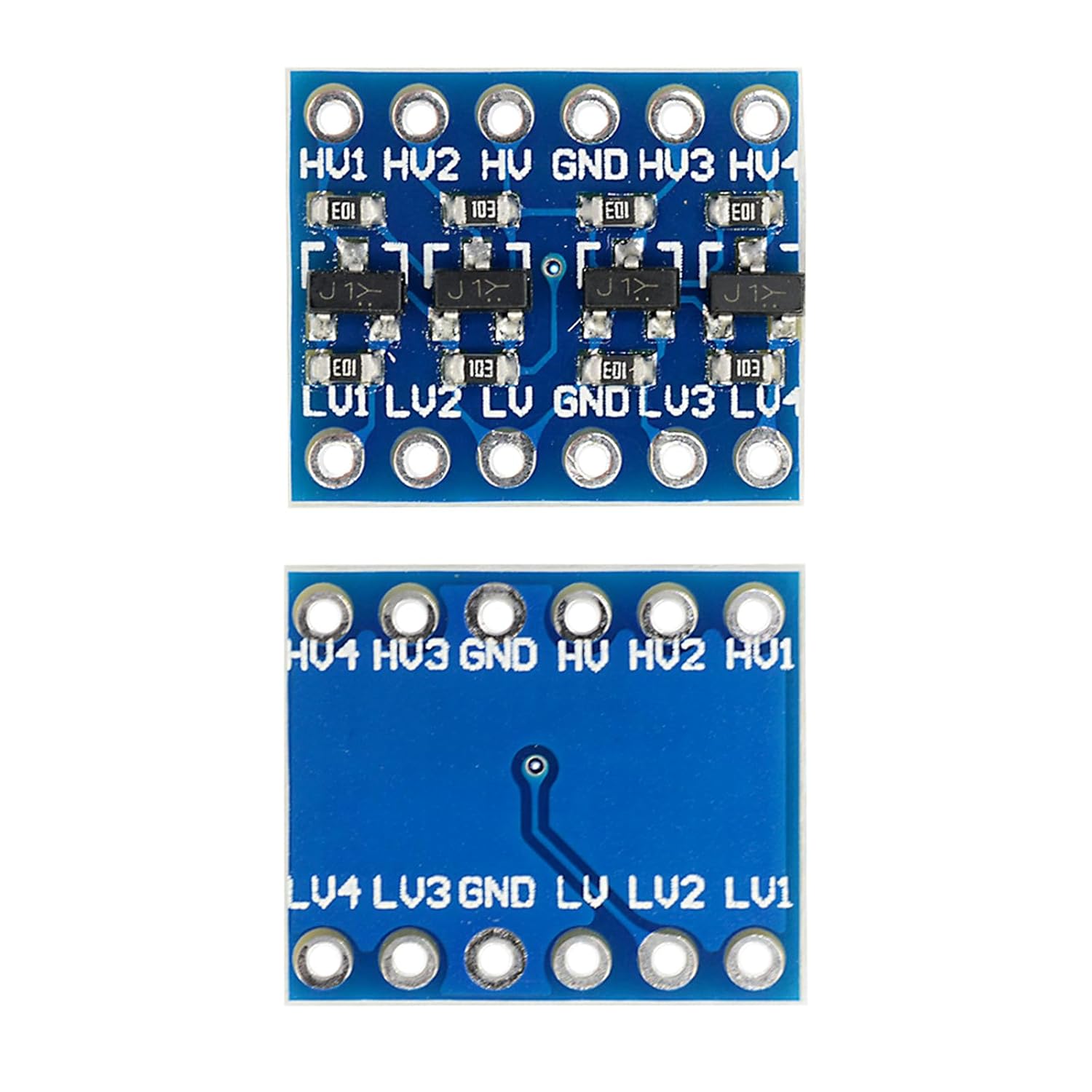

4 CHANNEL IIC I2C LOGIC LEVEL CONVERTER BI-DIRECTIONAL 5V to 3.3V f you've ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the HV' pin, low voltage (3.3V for example) to LV', and ground from the system to the GND' pin.
