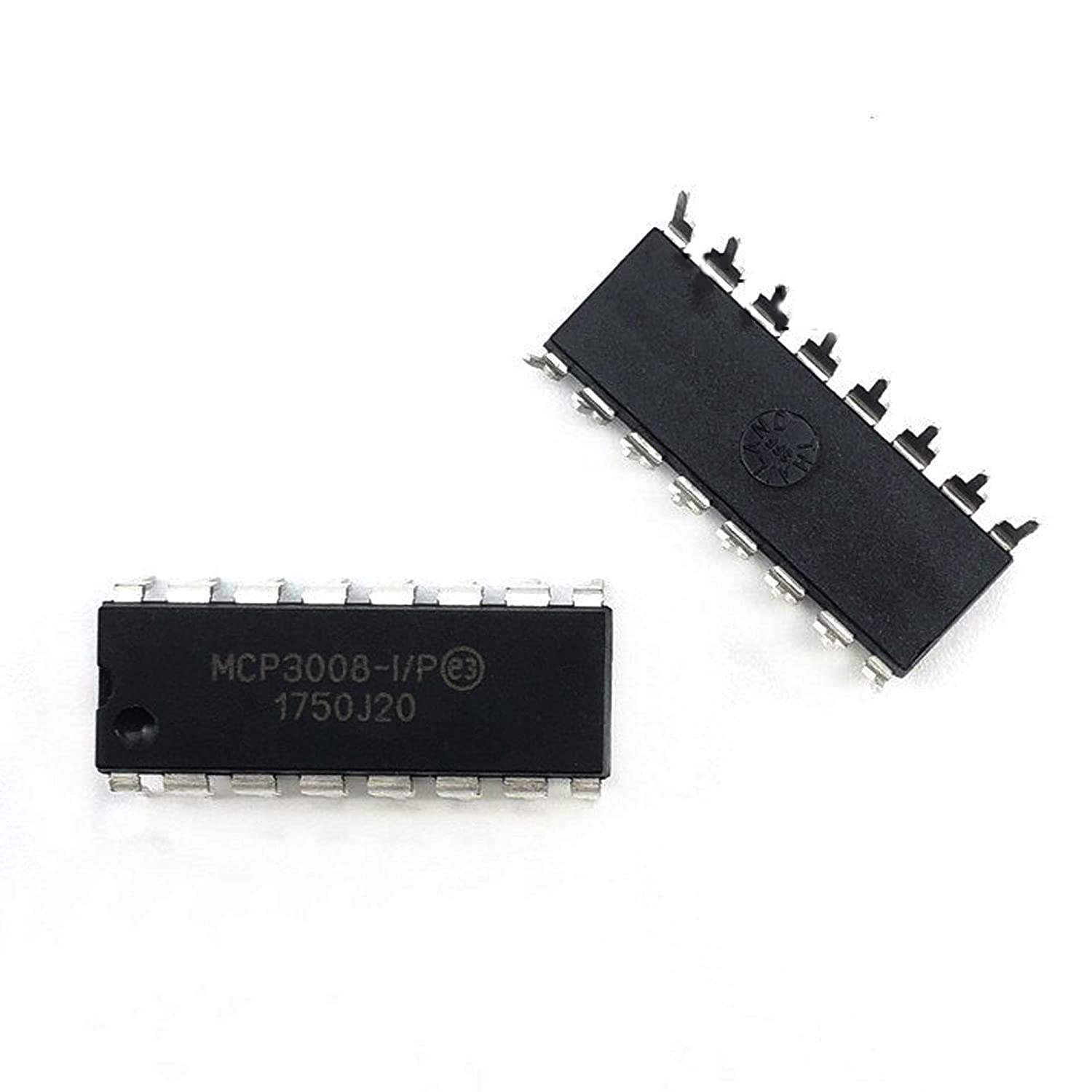

3008 MCP3008 -I/P 10 Bit Analog to Digital Converter 16-PDIP
3008 MCP3008 -I/P 10 Bit Analog to Digital Converter 16-PDIP
Couldn't load pickup availability
- Low power CMOS technology
- Industrial temp range: -40°C to +85°C
- 10-bit resolution
- Single supply operation: 2.7V - 5.5V
- Industrial temp range: -40°C to +85°C
MCP3004/3008 devices are successive approximation 10-bit Analogto- Digital (A/D) converters with on-board sample and hold circuitry. The MCP3004 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 200 ksps. The MCP3004/3008 devices operate over a broad voltage range (2.7V - 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 μA. The MCP3004 is offered in 14-pin PDIP, 150 mil SOIC and TSSOP packages, while the MCP3008 is offered in 16- pin PDIP and SOIC packages.
