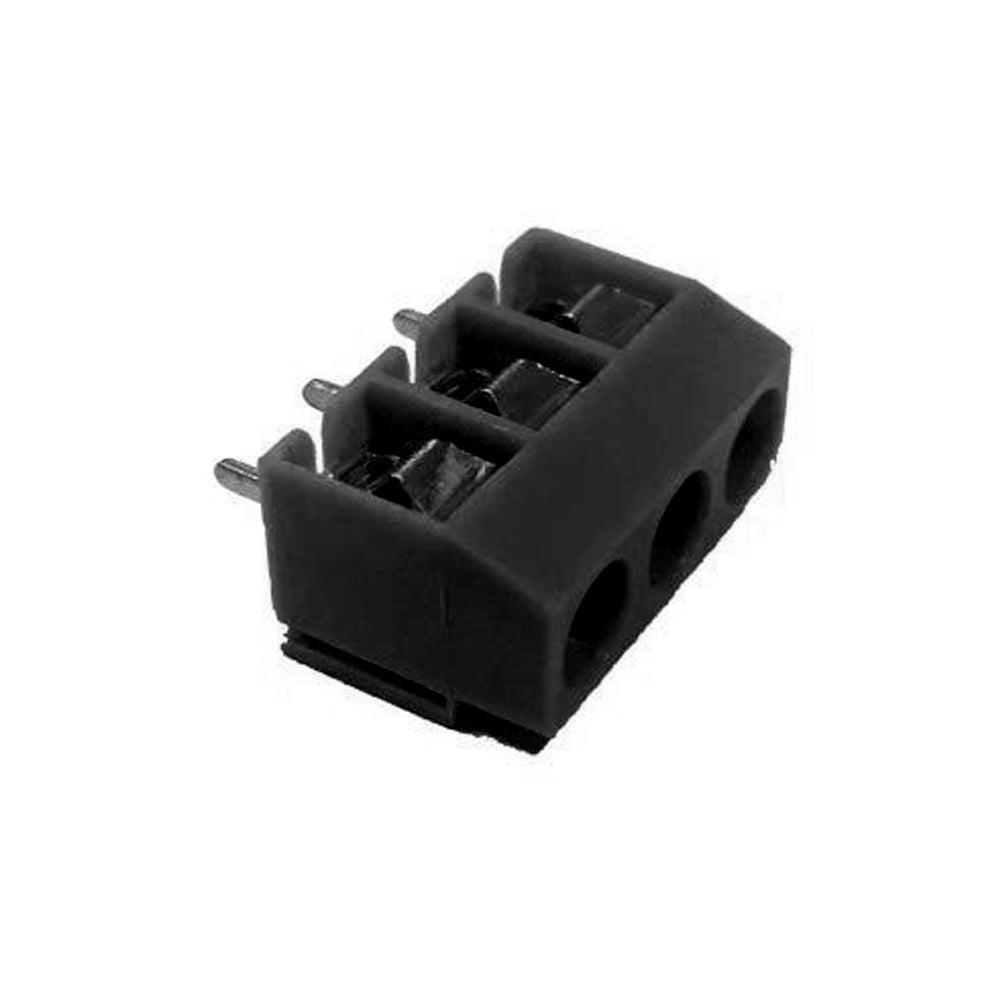

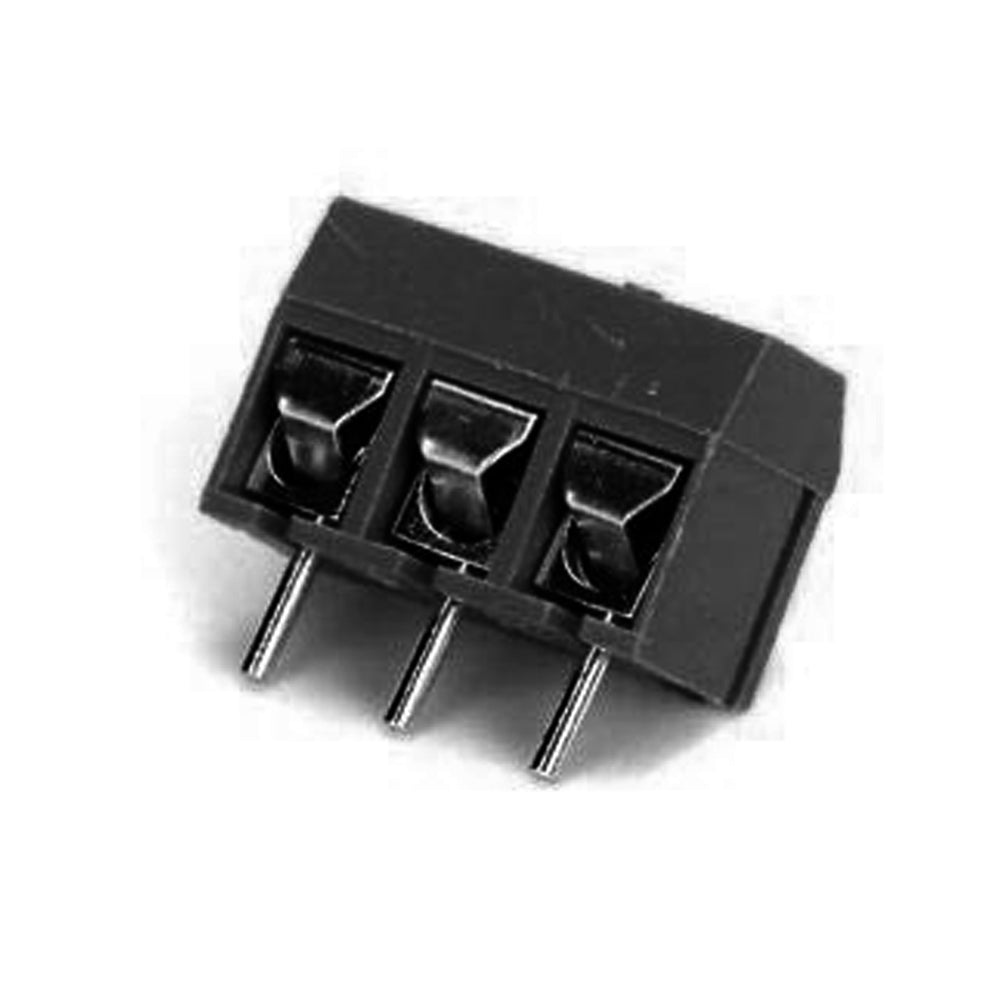

3-Pin Screw Terminal

Features & Specifications:

• Pin header                               : Tin plated brass.

• Contacts                                  : Nickel-plated brass.

• Connector                               : PCB Terminal Block

• Termination.                            : Screw

• No. of Contacts                       : 3

• Allowed Wire Size (AWG)        : 24 ~ 16

• Voltage(V).                               : 220V AC

• Operating Current (A)             : 16

• Mounting Type                        : Through Hole

• Pin Spacing (mm)                    : 5

• Material                                   : Metal and plastic

• Length (mm)                            : 15

• Width (mm)                              : 8

• Height (mm)                            : 14

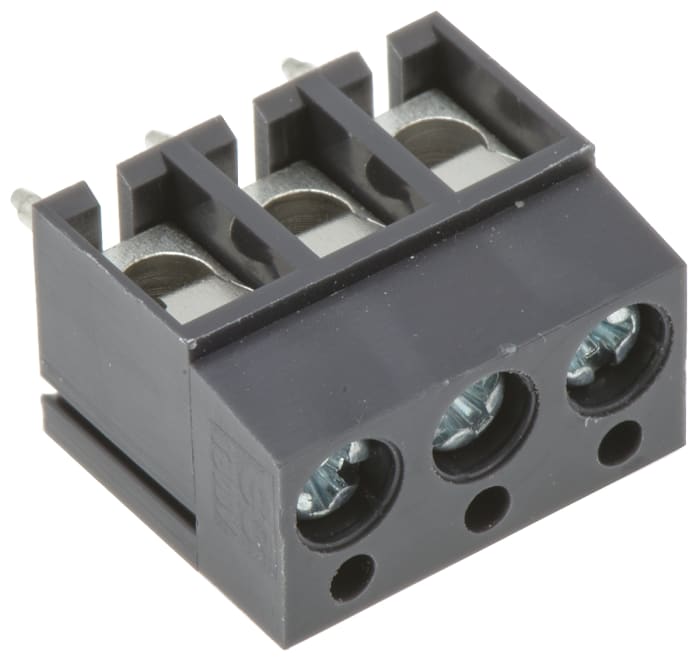

3 Pin 5mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. However, the screw terminal blocks could provide 16A/300V nominal rating for the DC current. The Dielectric strength is more than 2kV.

Other than this, it could provide more than 1000 M ohm Insulation Resistance in 500 VDC. The connector is made using PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-V0 or V2) and has good insulation properties.
