BMS 2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board
BMS 2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board
Regular price
Rs. 69.00
Regular price
Sale price
Rs. 69.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Upper working current: 10A
- Operating temperature: - 40 - 50°C
- Upper limit instantaneous current: 15A
- Storage conditions: -40 - 80°C
- Quiescent current: less than 10uA
- Effective life: more than 50,000 hours
- Internal resistance: less than 300mΩ
- Charging voltage: 8.4V-9V

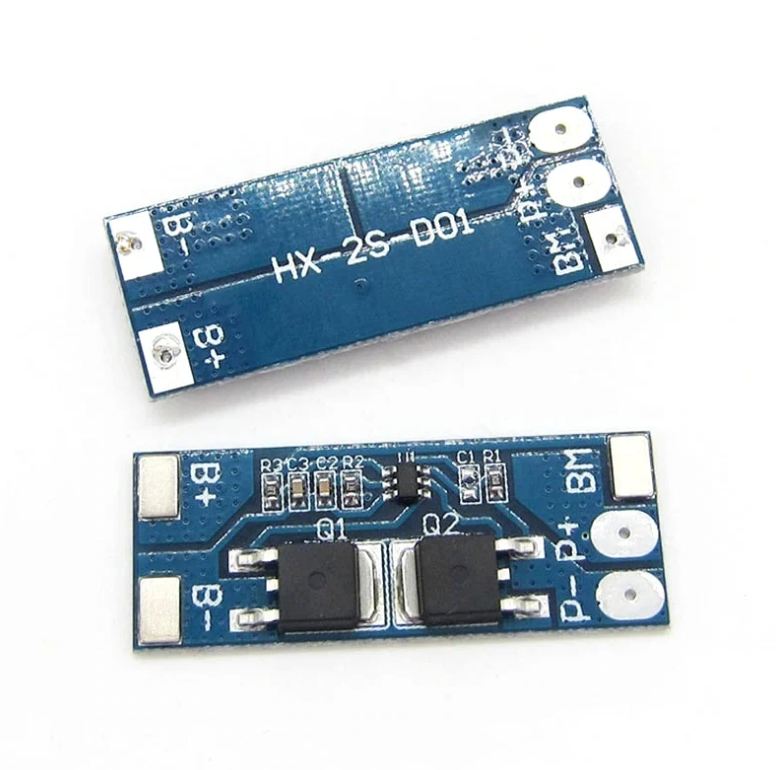

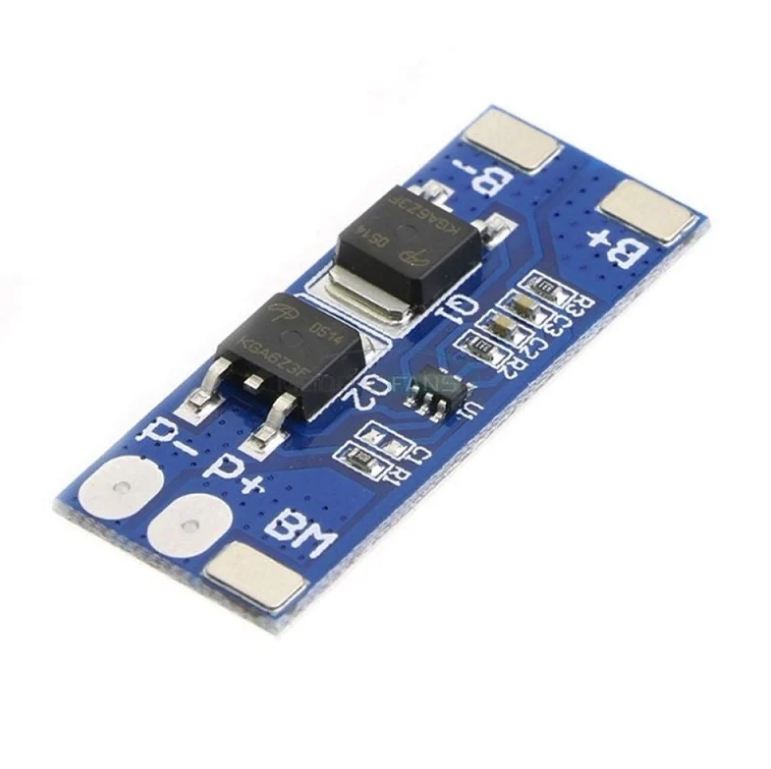

Pin Descriptions:
B+ B-: The interface of battery core
P+ P-: The connector of the battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-
2S 10A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.
