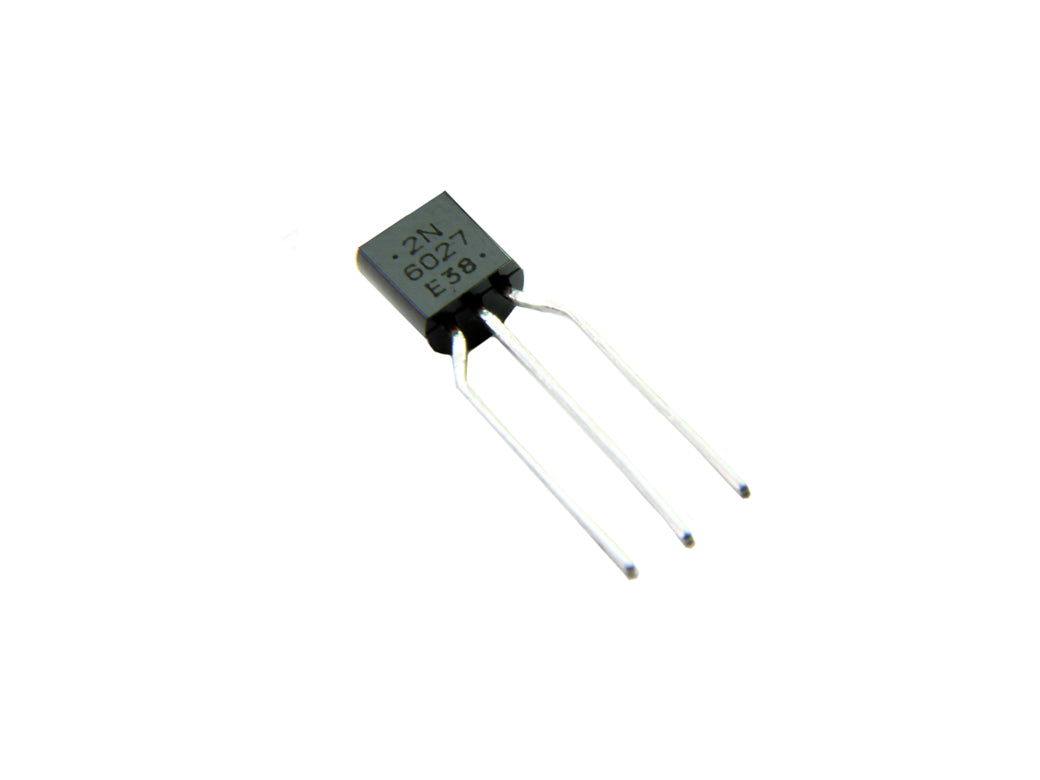

2N6027 Programmable Unijunction Transistor 6027

2N6027 is Designed to enable the engineer to “program’’ unijunction characteristics such as RBB, IV and IP by merely selecting two resistor values. Application includes thyristor−trigger, oscillator, pulse and timing circuits. These devices may also be used in special thyristor applications due to the availability of an anode gate. Supplied in an inexpensive TO−92 plastic package for high−volume requirements, this package is readily adaptable for use in automatic insertion equipment.

Features

• Product Type: BJTs – Bipolar Transistor
• Gate to Cathode Forward Voltage: 40V

• Gate to Cathode Reverse Voltage: 5V

• Gate to Anode Reverse Voltage: 40V

• Anode to Cathode Voltage: 40V

• Offset Voltage: 1.6V

• DC Forward Anode Current: 150mA

• DC Gate Current: 50mA

• Non−Repetitive Peak Forward Current: 5A

• Power Dissipation: 300mW

• Operating Temperature Range: -50 – 100°C

• Mounting Style: Through Hole

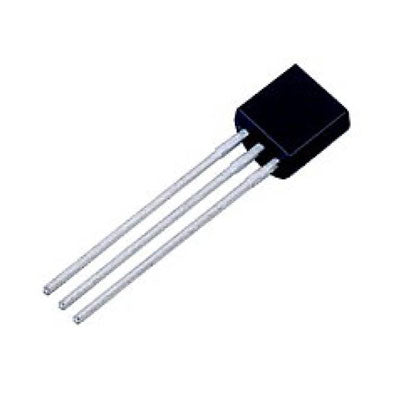

• Package/Case: TO-92-3


Application:

• Thyristor–Trigger
• Oscillator
• Pulse
• Timing Circuit

Package includes:

• 1 x 2N6027 Programmable Unijunction Transistor – TO-92 Package
