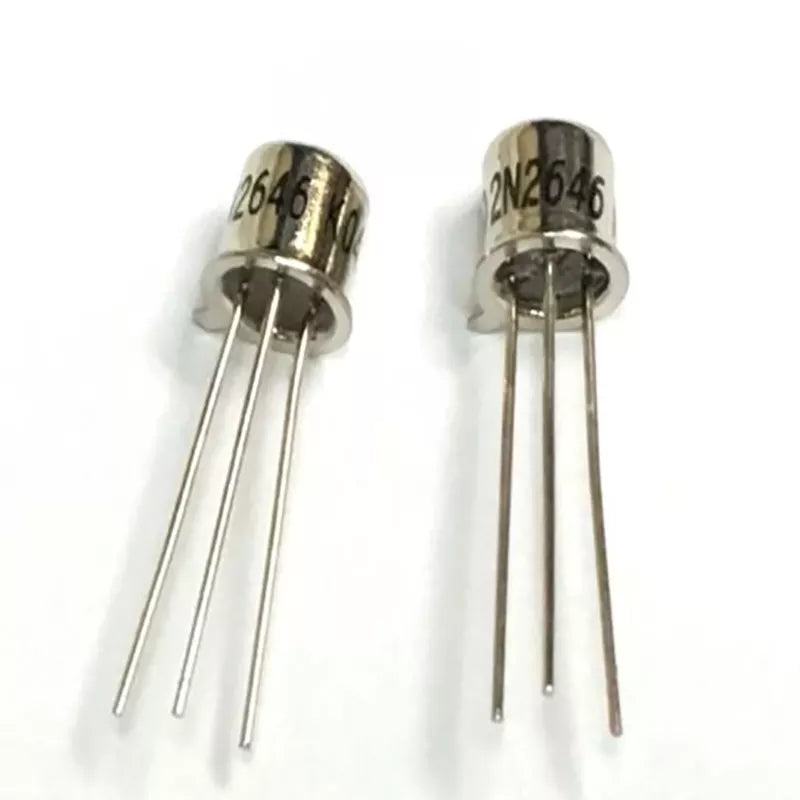

2N2646 Unijunction Transistor UJT
2N2646 Unijunction Transistor UJT
Regular price
Rs. 129.00
Regular price
Sale price
Rs. 129.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
2N2646 Unijunction Transistor
The transistor is a 3 terminal & 2 junction semiconductor device which is used for switching or amplifying purposes.
Features of 2N2646 General Purpose Transistor:
- Emitter-Base Volt (Veb2): 30V.
- Emitter Current (Iem): 0.05A.
- Power Dissipation (Ptot): 300mW.
- Type: Unijunction.
Notes:
1. Derate 3mW/°C increase in ambient temperature. The total power dissipation (available power to Emitter and Base-Tow) must be limited by the external circuitry.
2. Capacitor discharge - 10μF or less, 30V or less.
3. Intrinsic standoff ration is defined by the equation : Vp - Vf / Vb2b1 Where : Vp = Peak Point Emitter Voltage; Vb2b1 = Interbase ; Vf = Emitter to Base-one Junction Diode Drop (~0.45V @ 10μA)
4. Use pulse techniques : Pulse Width ~300μS, Duty Cycle % 2% to avoid internal heating due to interbase modulation which may result in erroneous readings.
