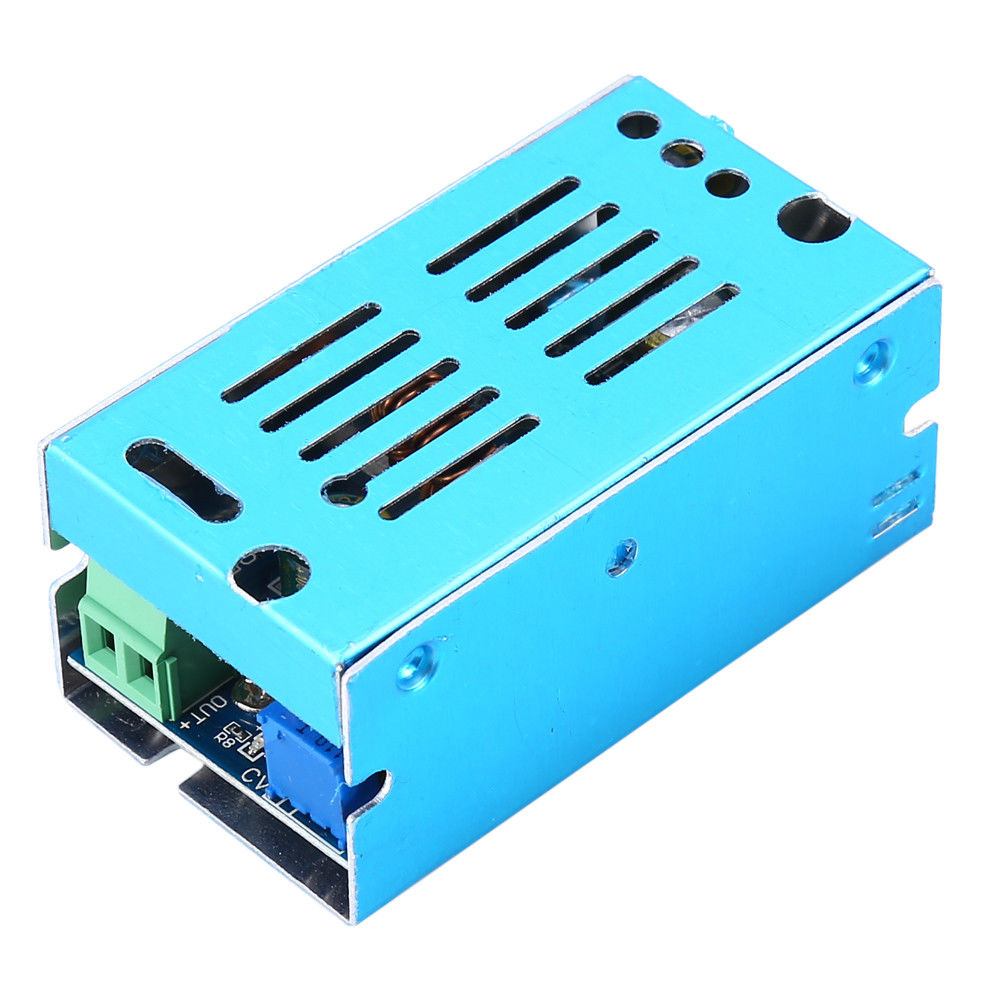

200W 15A DC DC voltage Buck Step down Converter power supply module

Rs. 799.00
200W DC-DC high voltage power synchronous step-down module 8-60V wide voltage input, 1-36V stepless adjustable output The maximum peak output current 15A Perfect ultra-efficient circuit design up to 94% Low Ripple -- 200W DC-DC high voltage power synchronous step-down module 8-60V wide voltage input, 1-36V stepless adjustable output The maximum...

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441


  • 200W DC-DC high voltage power synchronous step-down module

  • 8-60V wide voltage input, 1-36V stepless adjustable output

  • The maximum peak output current 15A

  • Perfect ultra-efficient circuit design up to 94% Low Ripple


--


  • 200W DC-DC high voltage power synchronous step-down module

  • 8-60V wide voltage input, 1-36V stepless adjustable output

  • The maximum peak output current 15A

  • Perfect ultra-efficient circuit design up to 94% Low Ripple


Parameter:

  • Name: 200W adjustable synchronous step-down module

  • Type: Non-isolated step-down module (step-down)

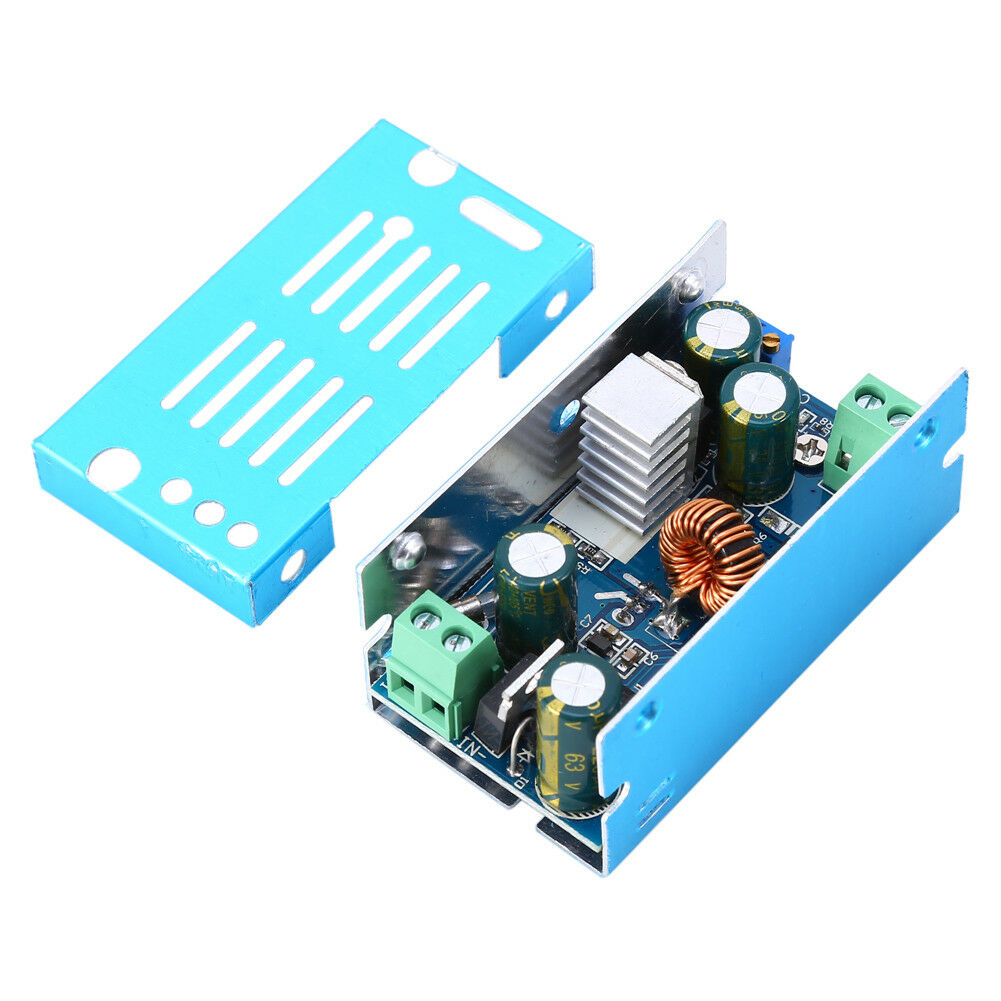

  • Aluminum housing Size: 70 x 38 x 31mm / 2.76"x1.5" x1.22" />

  • Input voltage: 8-55V (limit 60V, please leave allowance)

  • Output voltage: 1-36V continuously adjustable (the default output 12V)

  • Output Current: Normal 10A , MAX15A

  • Output power: natural cooling ventilated long-term power 100W

  • To enhance heat dissipation up to 200W

  • Such as long working hours, please note left margin and make the heat rise

  • Operating temperature: -10 to +85 degrees

  • Operating frequency: 180KHz

  • Conversion efficiency: up to 94%

  • Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)

  • Reverse polarity protection: (reverse does not burn)

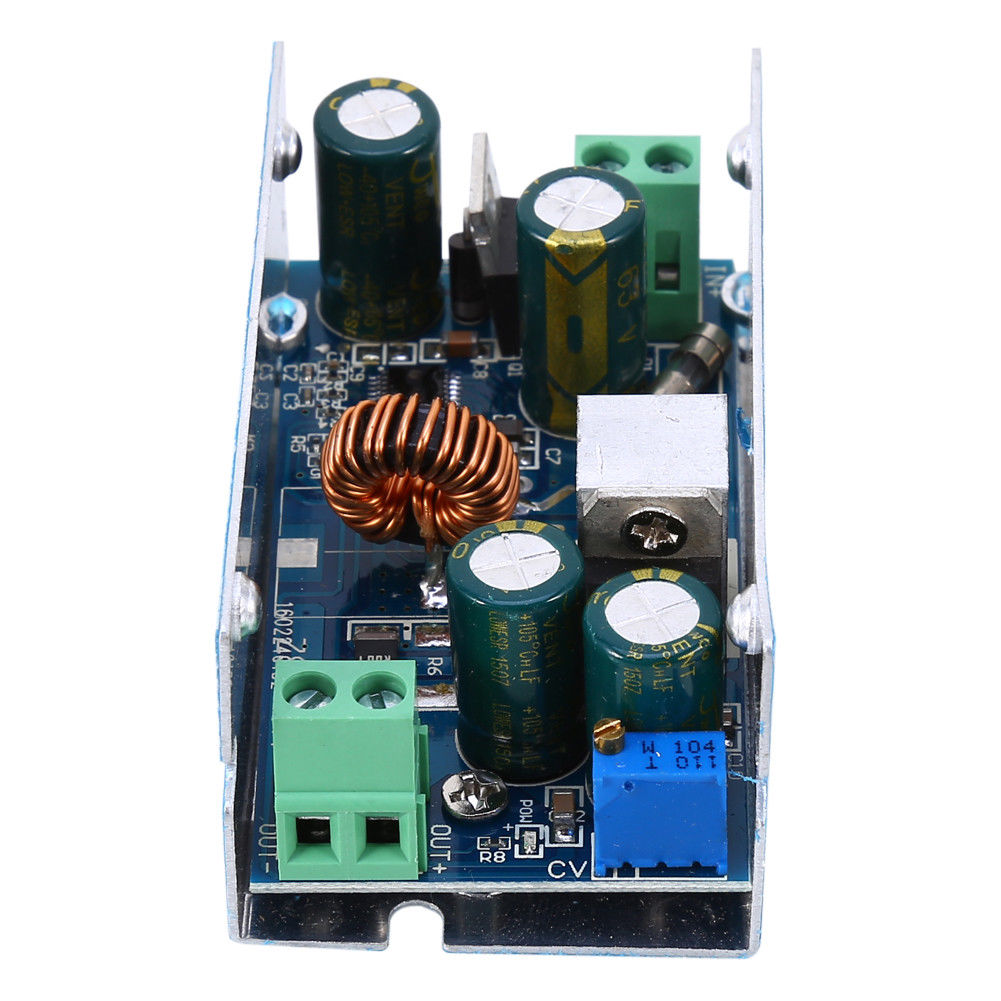

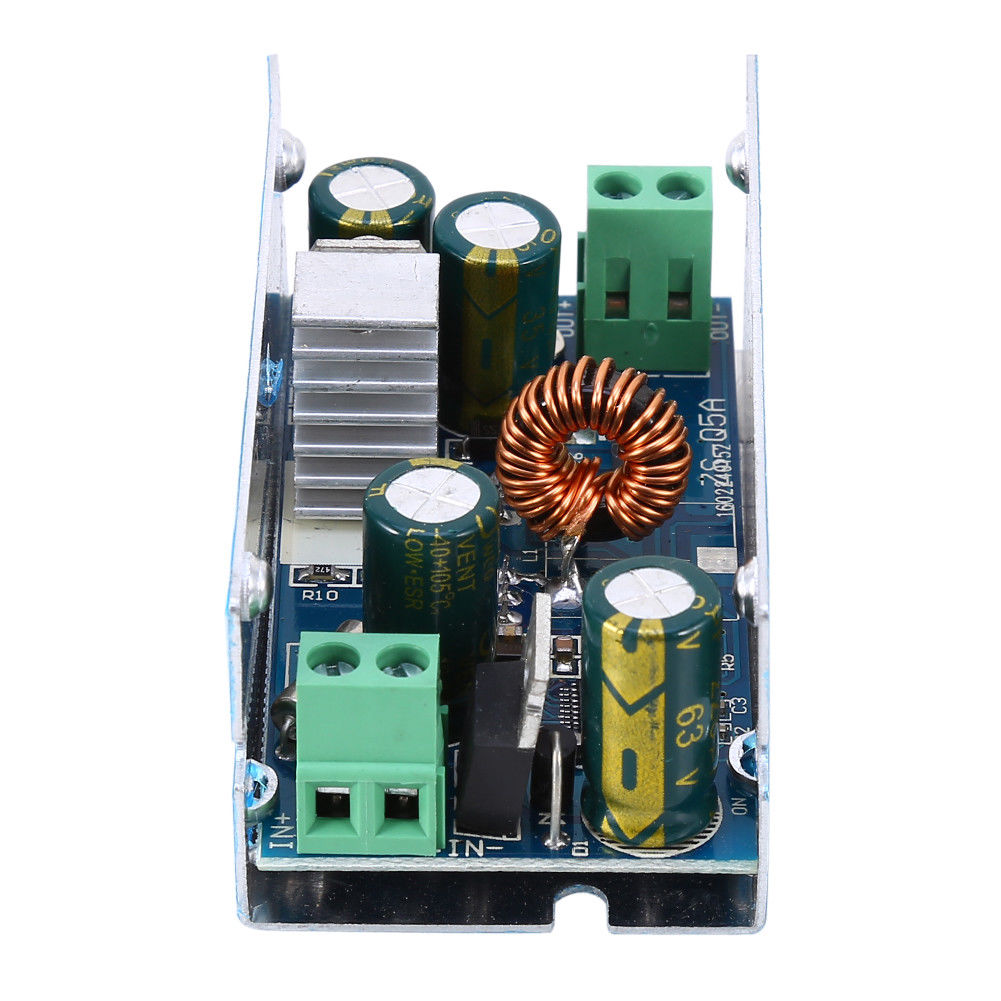

  • Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
