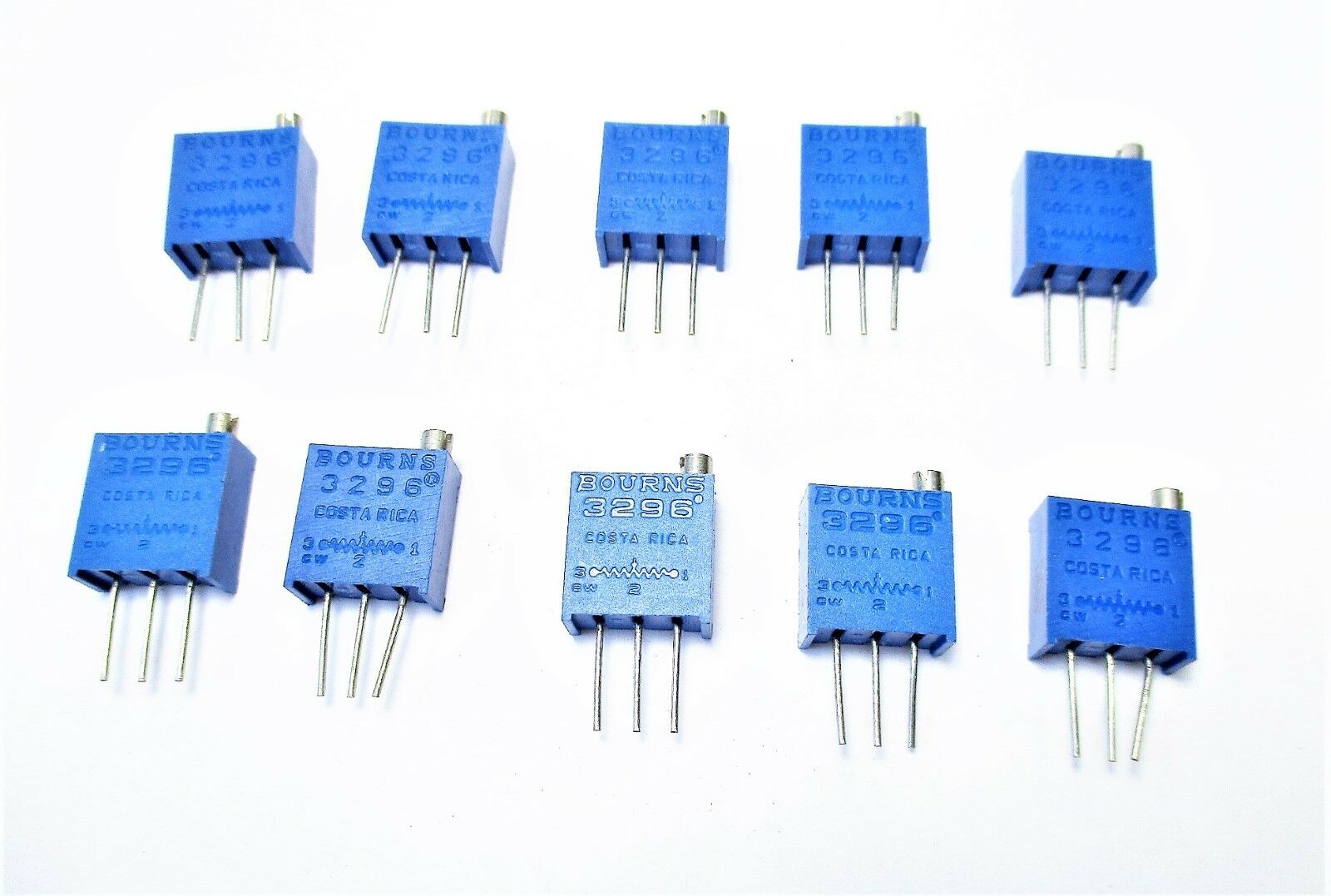

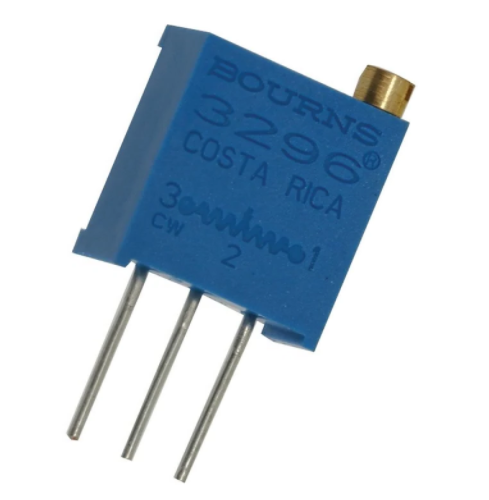

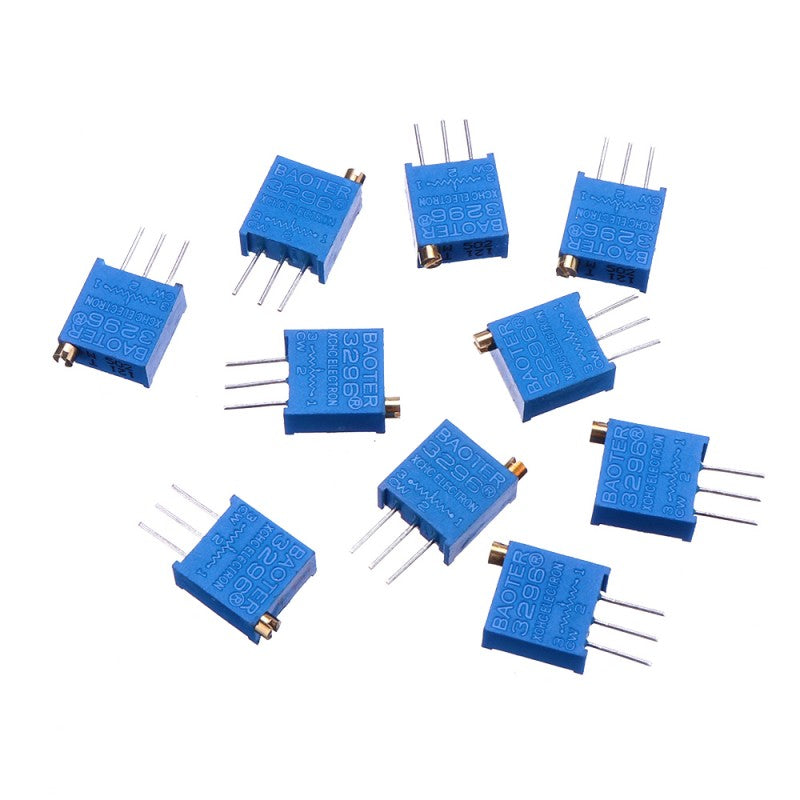

1M Ohm Trimpot Bourns 3296 Trimmer Potentiometer
Regular price
Rs. 12.00
Regular price
Sale price
Rs. 12.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance: 1M Ohms
--
Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Specification :
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance: 1M Ohms
- Power Rating: 500 mW (1/2 W)
- Termination Style: PC Pin
