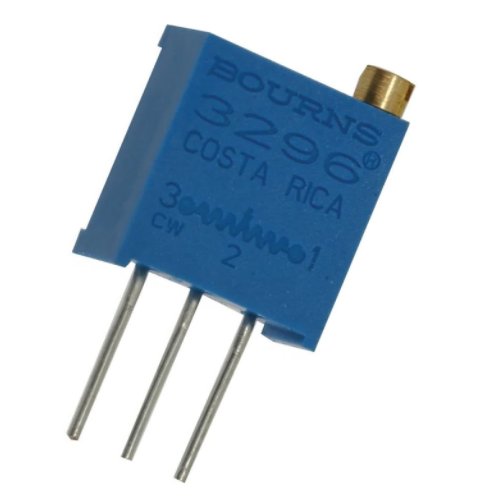

1K Ohm Trimpot Bourns 3296 Trimmer Potentiometer
1K Ohm Trimpot Bourns 3296 Trimmer Potentiometer
Regular price
Rs. 12.00
Regular price
Sale price
Rs. 12.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance: 1K Ohms
--
Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Specification :
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
- Resistance:1K Ohms
- Power Rating: 500 mW (1/2 W)
- Termination Style: PC Pin
