16x2 LCD with I2C Module (Blue)

Rs. 259.00 Rs. 350.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

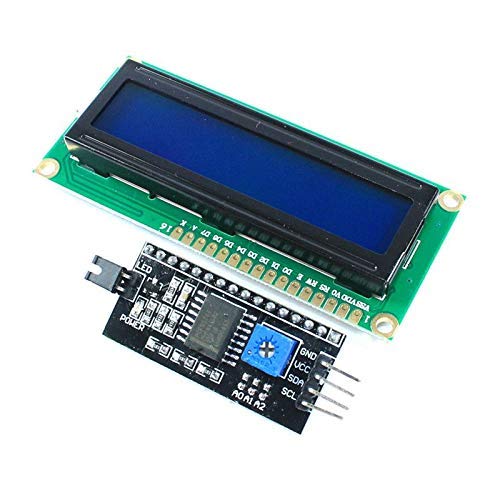

Package Contains: 16x2 LCD, I2c Module (without Soldering)

  • Arduino IIC/I2C interface was developed to reduce the IO port usage on Arduino board
  • I2C adapter allows flexibility in connections
  • I2C Reduces the overall wirings.
  • 16 characters wide, 2 rows
  • White text on the Blue background
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Interface: I2C
  • Interface Address: 0x27
  • Character Color: White
  • Backlight: Blue
  • Supply voltage: 5V

--

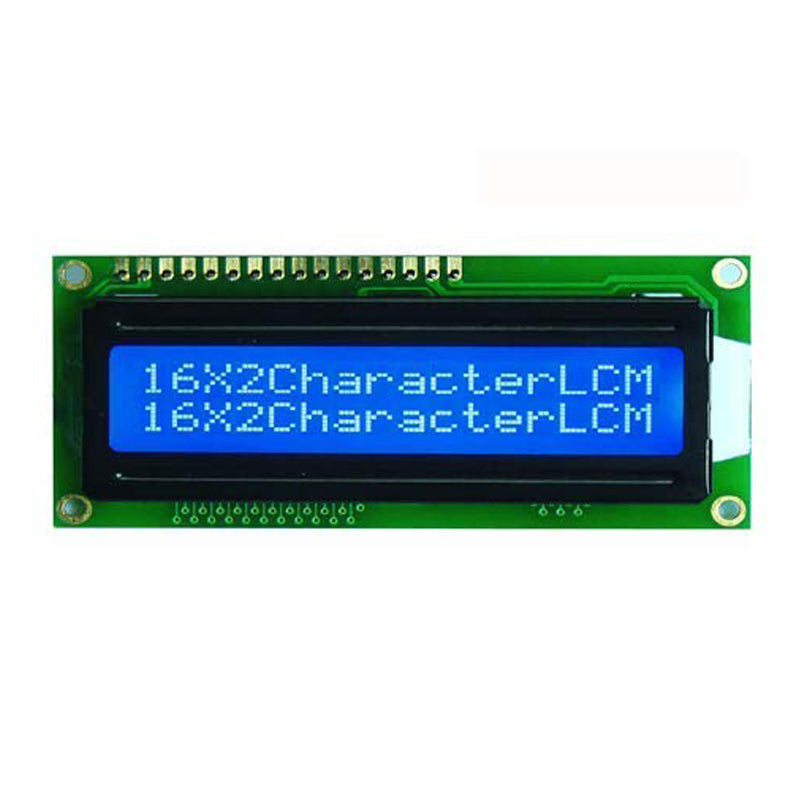

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast white text upon a blue background/backlight.

This is great blue backlight LCD display. It is fantastic for Arduino based project. This LCD1602 LCD Display is very easy to interface with Arduino or Other Microcontrollers.

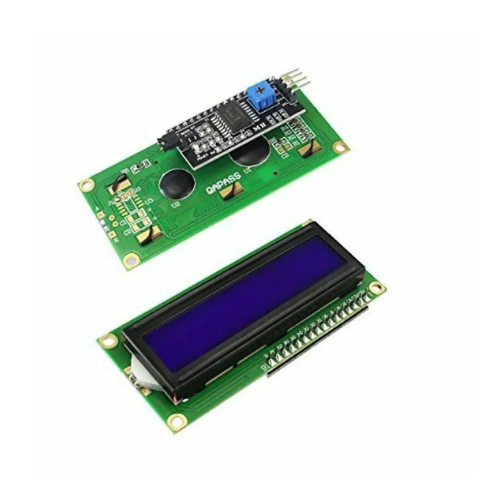

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
