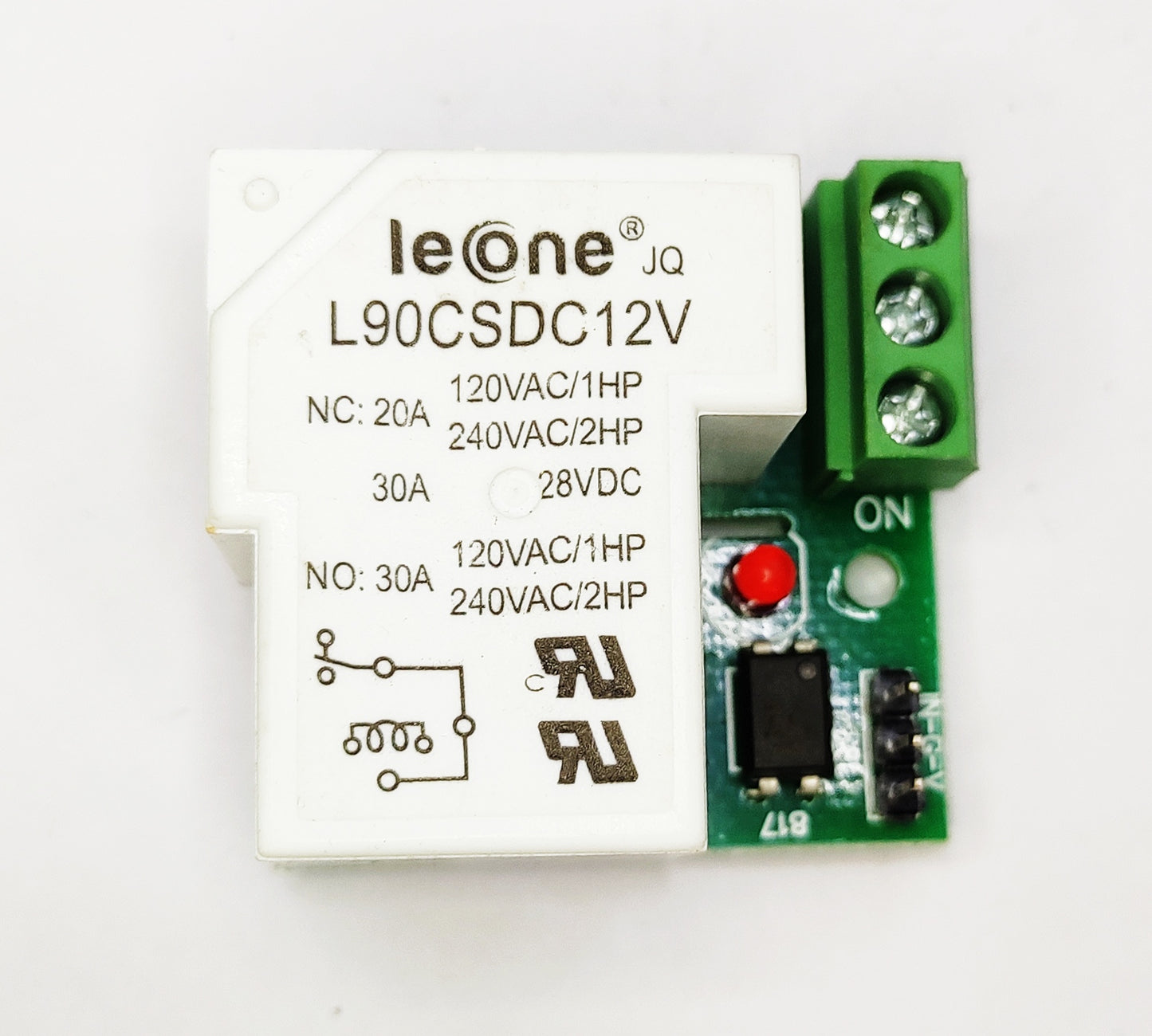

12V 30A T Relay Module L90CSDC12v
12V 30A T Relay Module L90CSDC12v
Couldn't load pickup availability
- Relay Voltage 12V
- Channels = 1
- Optically Isolated = YES
- TTL interface to trigger the relay
- Relay Current handling capacity = 30A
- Relay Type: T90
- Relay Contacts NO NC and Common.

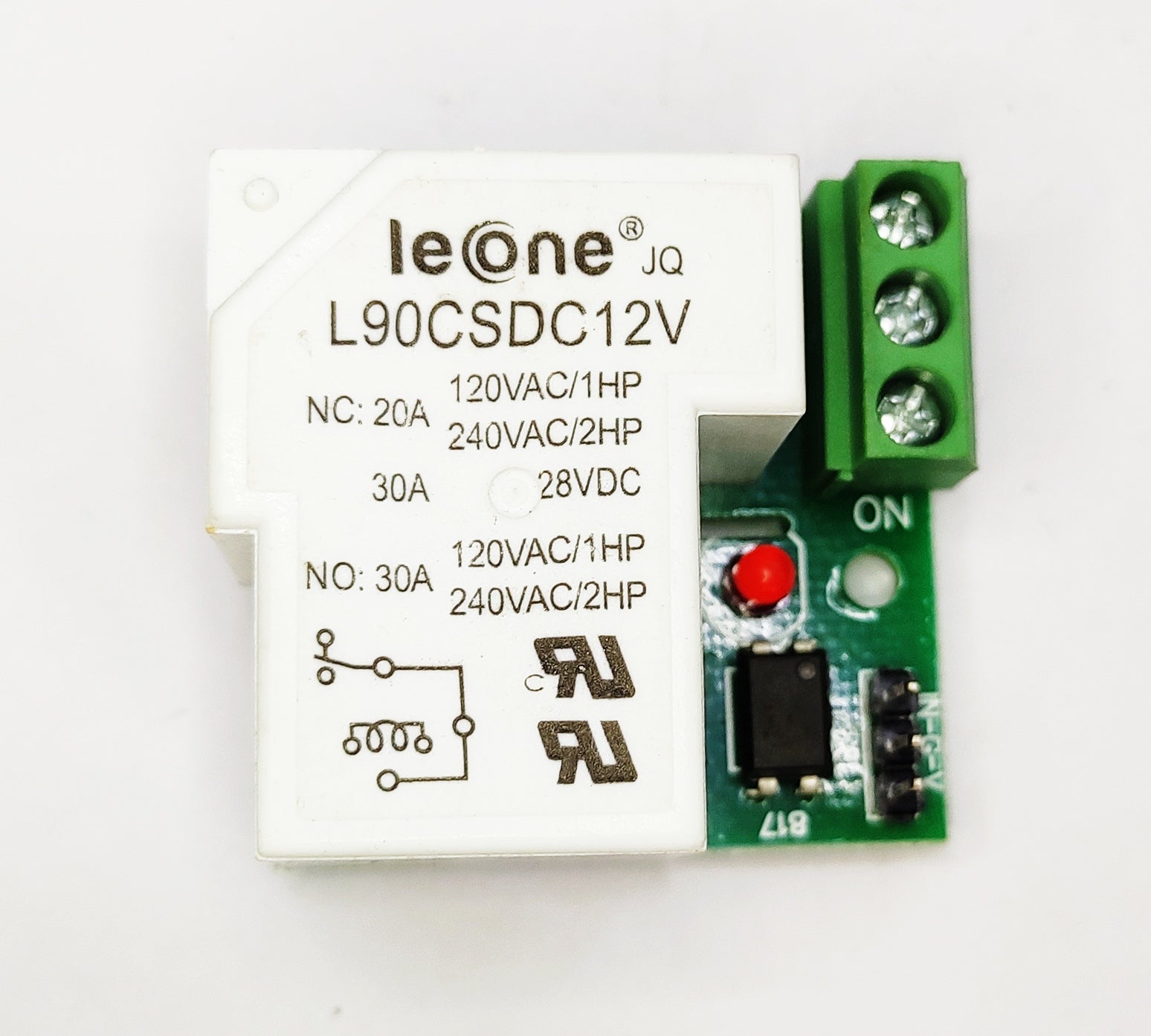

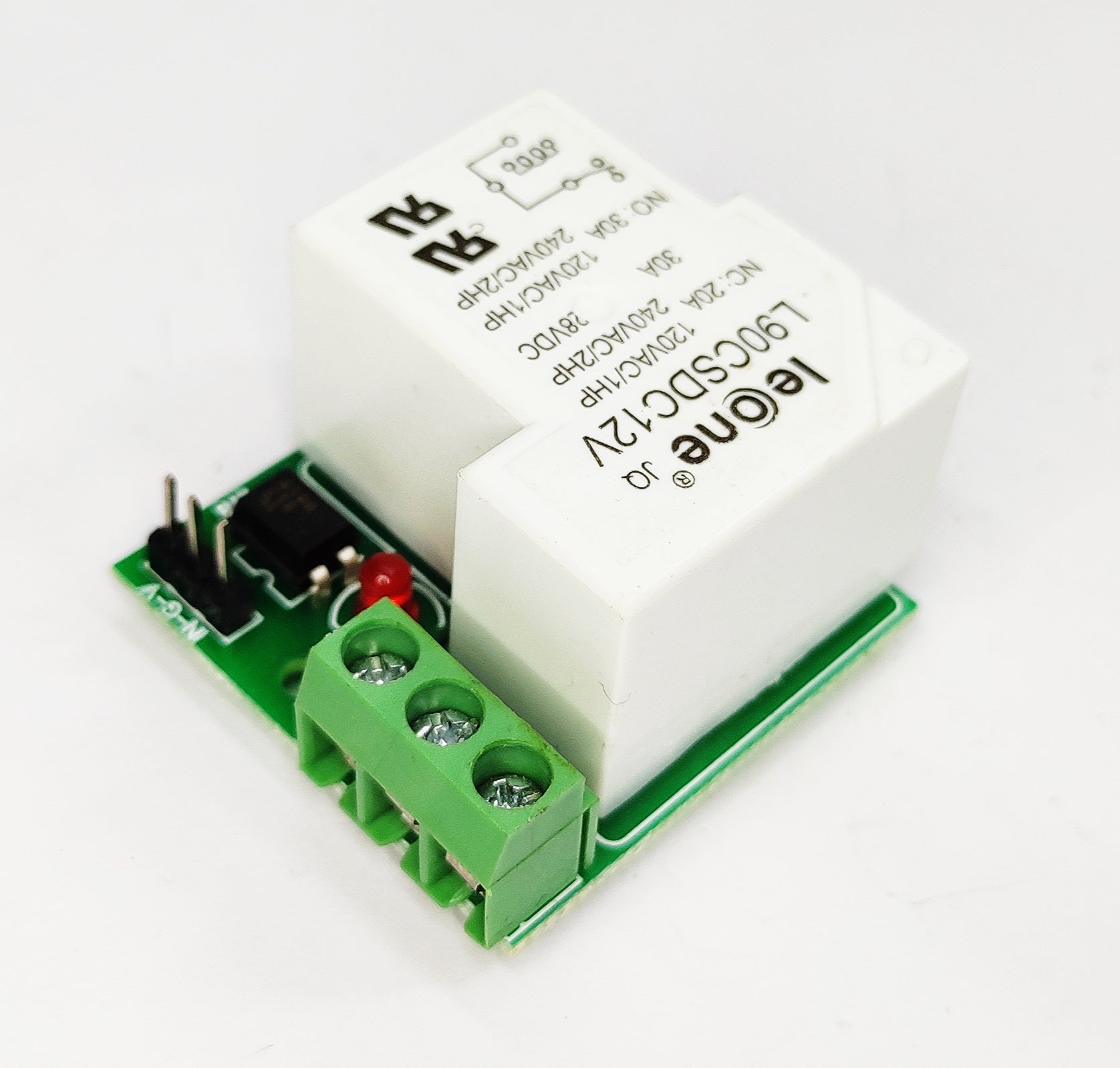

12V 30A T Type Relay Module with on board Optocoupler has 30A switching capability and suitable to both DC and AC. Significantly it can be used to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low voltage circuits. Perfect for switching 240V appliances – lights, fans, etc, and even high power motors at lower voltages.
The board uses a high-quality relay, which can handle a maximum of 30A/250 V AC or 30A/125V AC. Each relay has all three connections – Common, Normally Open, Normally Closed brought out to 3 pin screw terminals which make it easy to make and remove connections. The board has a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages from 4V to 12V.
