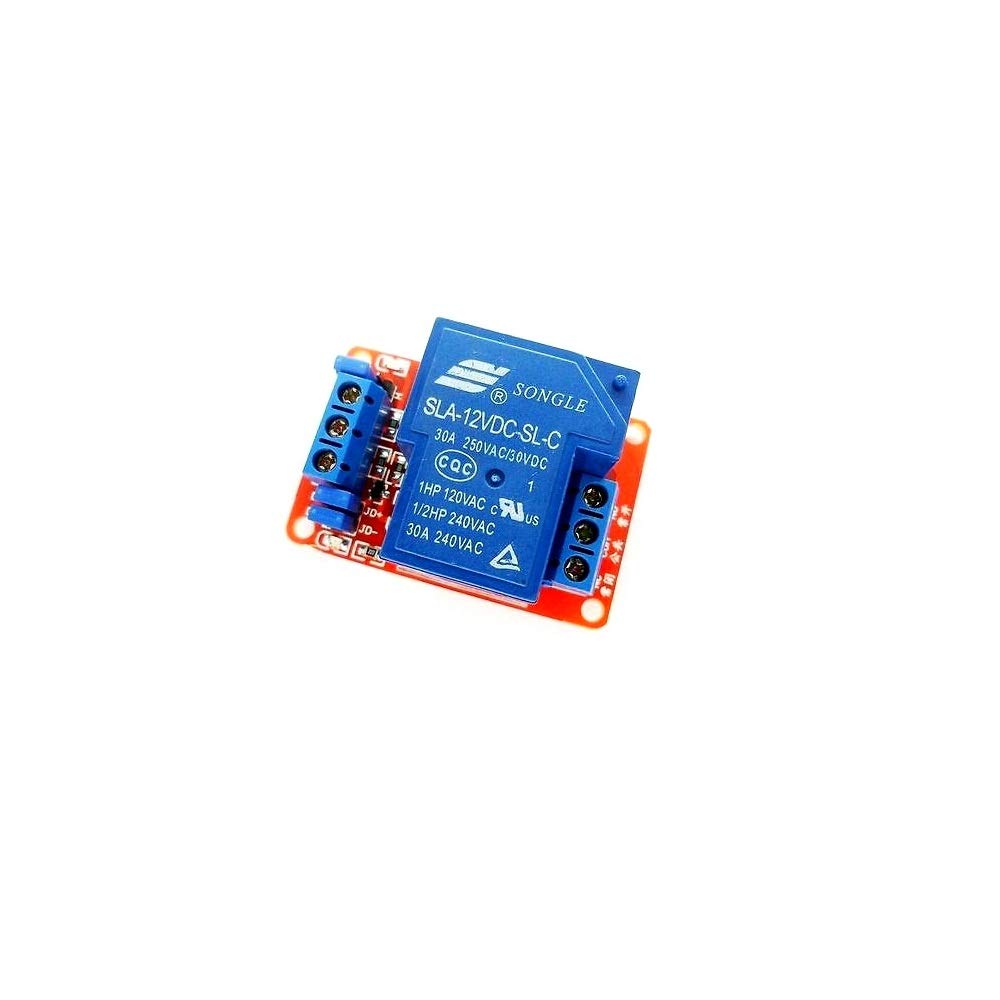

12V 1 Channel 30A Relay Module

Rs. 299.00 Rs. 350.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Voltage version:12V
  • The static current:5mA
  • Working current:80mA
  • Trigger current:2-4mA
  • Module Size:50mm*33mm*24mm

Module interface specifications:

(1) DC +: DC power supply positive pole
(2) DC-: DC power supply negative pole
(3) IN : signal triggering pin
(4) JD+ : relay control voltage positive
(5) JD-: relay control voltage negative
(6) DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
(7) High and low-level trigger mode selection. Jumper and L pin connection, IN pin, is low-level trigger upper and H pin connection, IN pin is a high-level trigger
(8) Normally closed pin (NC): relay normally closed pin
(9) Common pin (COM): relay common pin

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
