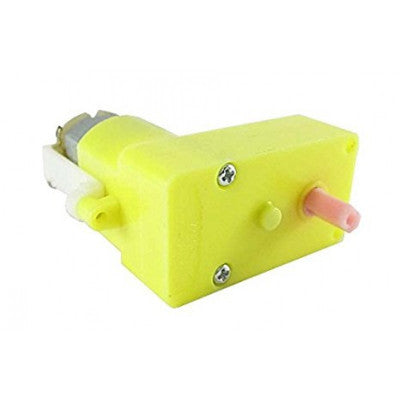

100 RPM DC BO Gear Motor L- Shaped
100 RPM DC BO Gear Motor L- Shaped
Couldn't load pickup availability
- Shaft: Single Shaft
- Motor SHape: L Shape
- Operating Voltage : 3V – 12V
- Rated Speed 100 RPM @9v
- Material Plastic Gear Housing
- Shaft Diameter 5.2 mm
- No-Load Current 40–180 mA
- Gear materials: plastic.
- Motor types: permanent-magnet.
- Brush-type: Brush.
- Uncommitted motors: Homopolar motors.
- Magnet types: ferrite magnets.
- Low density: lightweight, low inertia.
The 100 RPM Single Shaft L- Shaped BO Motor motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.
Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors.
It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots.
The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.
