Input Voltage: 230V AC
Output Voltage: 12V or 0V
Output Current: 2Amp
Mounting: Vertical mount type
Winding: Copper

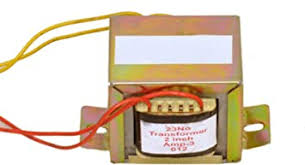

0-12 2A Center Tapped Step Down Transformer is a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 230V to AC - 12V.

The Transformer gives outputs of , 12V and 0V. The Transformer's construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.
