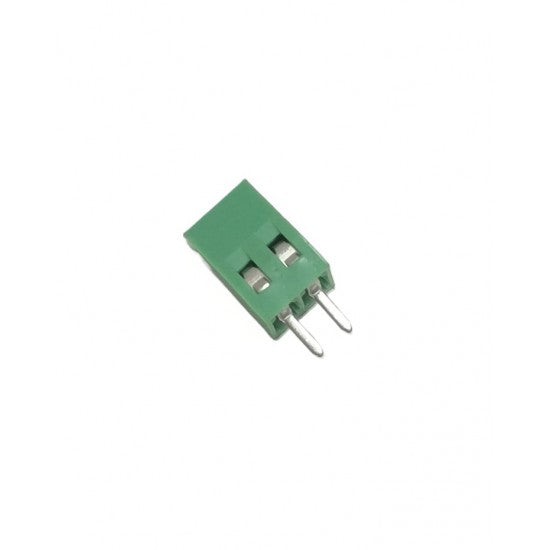

2 Pin 2.54mm Pitch PBT Connector Screw Terminal Block Green

2-Pin Screw Terminal 2.54 pitch

Features & Specifications:

• Pin header                               : Tin plated brass.

• Contacts                                  : Nickel-plated brass.

• Connector                               : PCB Terminal Block

• Termination.                            : Screw

• No. of Contacts                       : 2

• Voltage(V).                               : 220V AC

• Operating Current (A)             : 6

• Mounting Type                        : Through Hole

• Pin Spacing (mm)                    : 2.54

• Material                                   : Metal and plastic

• Length (mm)                            : 5

• Width (mm)                             : 6

• Height (mm)                            : 8 (without pin) 12 (with Pin)

XY308 2.54mm 2 Pin Screw Terminal Block These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin  units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 2.54mm. 2 Pin 2.54mm Pitch Pluggable Screw Terminal Block is a compact and versatile terminal block. It finds its use in connecting wires to the PCB. Because of the small size, the terminal block allows for the connection of two conductors on a PCB, where space is premium. This terminal block has screws to keep the wires in place. It can hold wires from 14 to 22 AWG. This terminal block is ideally suited to miniature rack systems or telecoms equipment, which demand high contact density. As each terminal has a single corresponding pin spaced every 0.1″ (2.54 mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1″ male and female headers (if there is sufficient clearance from nearby components).
