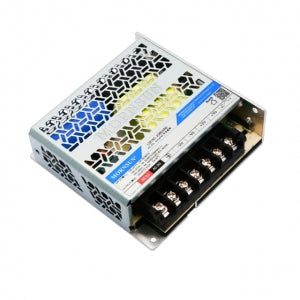

Mornsun LM150-23B12R2– 12V 12.5A 150W SMPS AC to DC Switching Single Output Power Supply

• Warranty- 1 Years
• Manufacturer Product No: LM150-23B12R2
• Manufacturer: Mornsun
• Output Voltage: 12V
• Output Current: 12.5A

Features

• Universal 80 – 305VAC or 100 – 430VDCInput voltage
• Accepts AC or DC input (dual-use of sameterminal)
• Operating ambient temperature range: -40℃to+85℃
• Low standby power consumption, highefficiency,small size
• High I/O isolation voltage up to 4000VAC
• Output short circuit, over-current, over-voltage, over-temperature protection
• Operating altitude up to 5000m
• OVC III (designed to meet EN62477)
• Safety according to UL/EN/IEC/BS EN62368, EN/IEC60335

Features/Specs:

• Output Power 150 W
• Output Voltage 12V
• Output Current 12.5A
• Output Voltage Adjustable Range (V): 11.4-13.8
• Efficiency at 230VAC (%) Typ : 91.5
• Max. Capacitive Load(µF): 10000
• Output Voltage Accuracy: ±1 %
• Load Regulation 230 VAC: ±0.5 %
• Ripple & Noise 20MHz bandwidth (peak-to-peak value): 150mV
• Temperature Coefficient: ±0.03%/℃
• Stand-by Power Consumption Room temperature,230VAC- 0.3-0.5W
• Over-voltage Protection: ≤16.00V Output voltage clamp or hiccup,self recover
• Operating Temperature: -40℃ to +85℃
• Safety Standard : Design refer to UL/EN/IEC/BS EN62368-1, EN/IEC60335-1, EN61558-1, EN62477, GB4943.1
• Safety Class: CLASS I
• Case Material: Metal (AL5052, SGCC)
• Dimensions: 99.00 x 97.00 x 30.00 mm
• Weight: 260g (Typ.)
• Cooling Method : Free air convection

Applications:

• Digital Circuit
• Automation
• Power Supply

Package Includes:

• 1 x Mornsun LM150-23B12R2– 12V 12.5A 150W SMPS AC to DC Switching Single Output Power Supply


Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
