SoloGood 5.8Ghz 2W VTX FPV Transmitter Over 20Km Range TS582000 5.8G 2000MW 8CH Video Transmitter with 5dbi SMA Antenna for FPV Racing Drone Quadcopter

For the convenience of writing, the LED light is 1 when it is on and 0 when it is off.

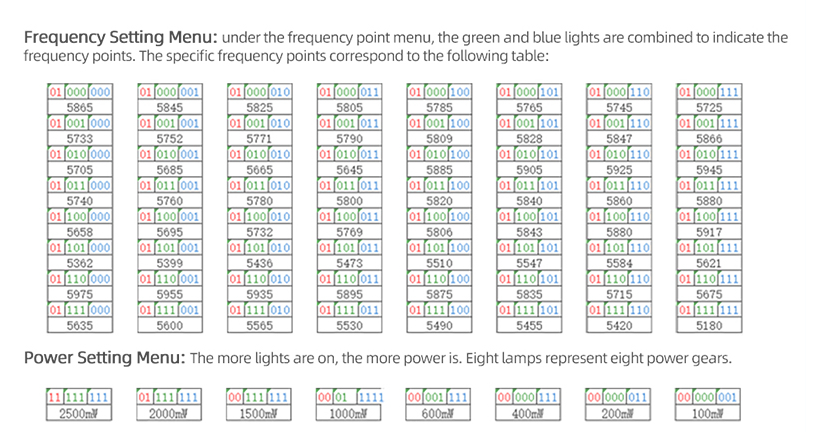

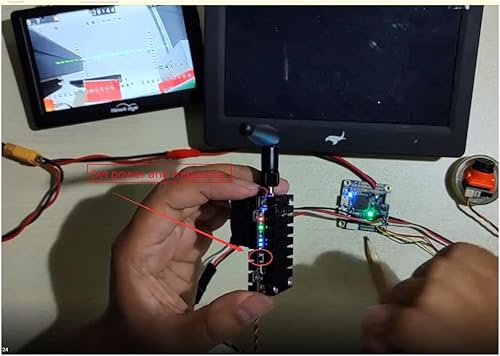

Long press the button to switch the menu. The first two red lights indicate the menu. 01 represents the frequency menu. The frequency comparison table is as follows. 00 is the power menu. When switching to the power menu, the indicator light will display the current power in the form of a flowing light. The two red lights under the power menu will be reused to indicate the power (when it is greater than 1500mw) Under the current menu, press the button briefly to change the value. The button is only effective within one minute of startup. If it is not pressed for more than one minute, the button will be locked automatically to prevent interference from being triggered by mistake.

Special Instructions:

1. For the above power gears, only the maximum power gear is guaranteed to be greater than 2000mW. For other gears, the power value is not guaranteed to be accurate. It is just a simple division of eight gears, and it is not guaranteed that the power values of each gear transmitted in the same batch are consistent.

2. The maximum output power of the map transmission is generally 2300-2500mW, so no selection is required for shipment.

3. The image transmission power is large, so the original maple antenna must be used. Replacing other antennas has a greater risk of damage. The seventh gear (2000mW gear) is recommended. The highest power gear can be used only when the heat dissipation housing and fan are not removed and the air circulation and heat dissipation are good.

4. Among the above frequency points, the original antenna can use the first 63 frequency points, and the 64th frequency point (5180) is prohibited. It can only be used when the Maple Leaf Sword antenna (or other 5.2G antennas) is replaced.
