ESP8266 LCD Development Board
Features
1.ESP Round LCD is a 1.28 inch round LCD display based on ESP-12S MCU.
2. Able to run at 80 or 160MHz with built-in support for 802.11b/g/n WIFI.
3. The screen is a full colour display with 240x240 resolution and CG9A01 driver.
4. There are two interface options: USB MicroB or 8-pin pass-through (including male) on the bottom of the screen.
5.ESP Round LCD makes it easy to create colour LCD projects on the screen with Arduino support and introductory examples.
1.ESP Round LCD is a 1.28 inch round LCD display based on ESP-12S MCU.
2. Able to run at 80 or 160MHz with built-in support for 802.11b/g/n WIFI.
3. The screen is a full colour display with 240x240 resolution and CG9A01 driver.
4. There are two interface options: USB MicroB or 8-pin pass-through (including male) on the bottom of the screen.
5.ESP Round LCD makes it easy to create colour LCD projects on the screen with Arduino support and introductory examples.
Specification

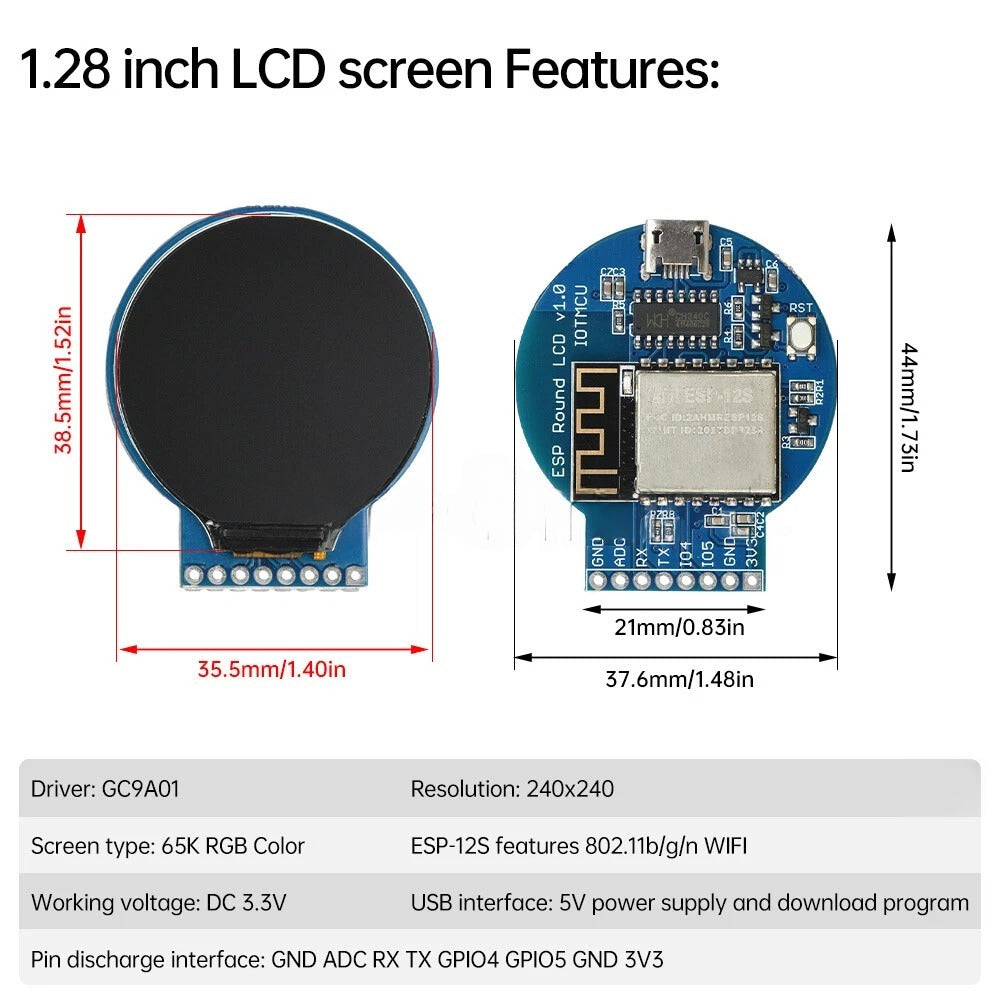

1.28 inch LCD screen Features:
Driver: GC9A01
Resolution: 240x240
Screen type: 65K RGB Colour
ESP-12S Features: 802.11b/g/n WIFI
Operating voltage: DC 3.3V
USB interface: 5V power supply and download programmes
Pin-out interface:
GND ADC RX TX GPIO4 GPIO5 GND 3V3
Product size: 44*37*6mm
1.28 inch LCD screen Features:
Driver: GC9A01
Resolution: 240x240
Screen type: 65K RGB Colour
ESP-12S Features: 802.11b/g/n WIFI
Operating voltage: DC 3.3V
USB interface: 5V power supply and download programmes
Pin-out interface:
GND ADC RX TX GPIO4 GPIO5 GND 3V3
Product size: 44*37*6mm
TFT LCD Display Module
Features
1.The round LCD expansion board is a 240x240 resolution 1.28 inch display.
2.With 65K RGB colours and clear and colourful display.
3. Through a simple SPI interface way to achieve small device interface interaction.
4.GC9A01 driver and SPI interface integrated into the expansion board, reducing the number of IO pins required.
5.LCD display module is suitable for a variety of scenarios such as watches, dashboards, etc., for a variety of creators DIY.
Specification
Operating voltage: DC 3.3V
Communication interface: SPI
Screen type: IPS
Control chip: GC9A01
Resolution: 240x240
Display size: Φ32.4mm
Pixel size：0.135(H)*0.135(V)mm
Product Size：43.3*37.6*6mm
Operating voltage: DC 3.3V
Communication interface: SPI
Screen type: IPS
Control chip: GC9A01
Resolution: 240x240
Display size: Φ32.4mm
Pixel size：0.135(H)*0.135(V)mm
Product Size：43.3*37.6*6mm
Package Includes
1 x 1.28 Inch TFT LCD Display Module Round RGB 240*240 ESP8266 LCD Development Board
1 x 1.28 Inch TFT LCD Display Module Round RGB 240*240 ESP8266 LCD Development Board
