JX Servo PDI-6221MG 20KG Large Torque Metal Gear Digital Servo with Air drop Rack kit
JX Servo PDI-6221MG 20KG Large Torque Metal Gear Digital Servo with Air drop Rack kit
Regular price
Rs. 1,999.00
Regular price
Sale price
Rs. 1,999.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
-

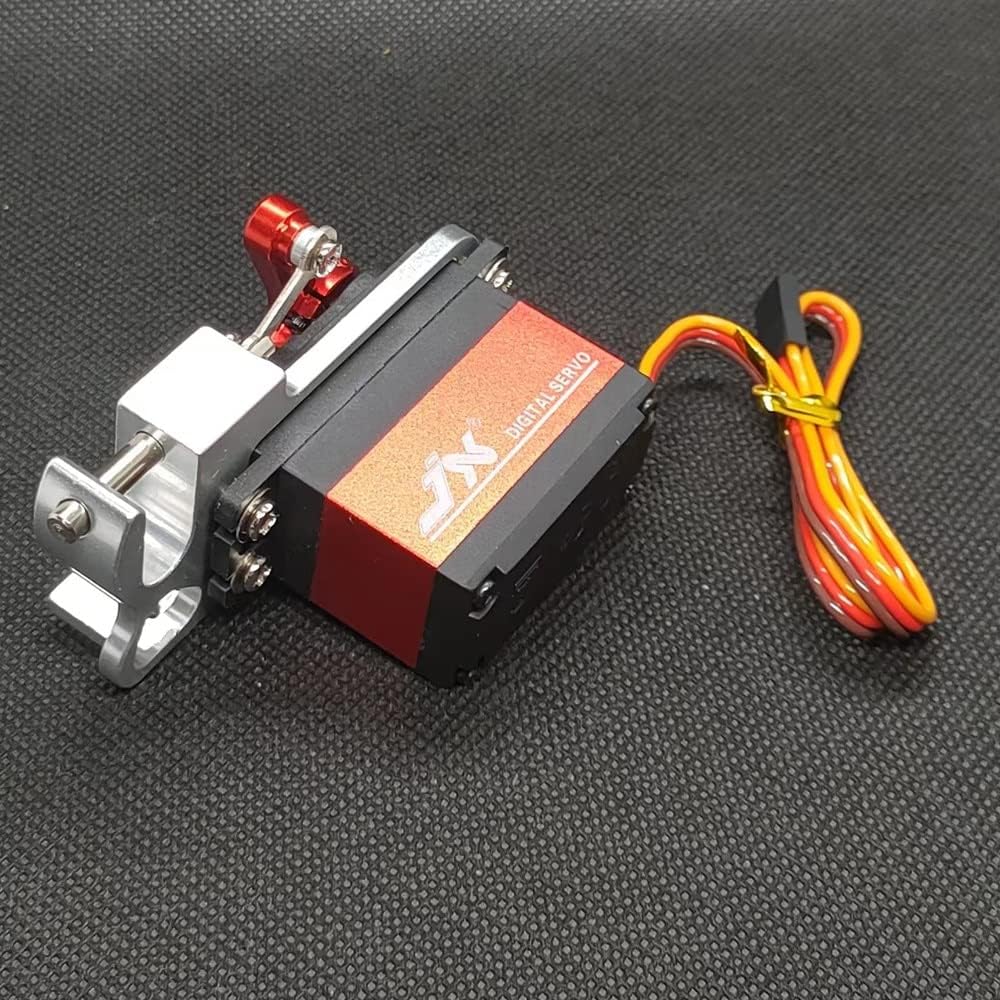

Air dropper Dropper Parabolic switch Drop switch Dropper
-
Suitable for helicopters, multi-axis, fixed-wing aircraft, robots, etc.
-
This model is an upgraded version of the third generation, made of 7075 aviation aluminum
-
Super high strength and light weight
-
Enhanced version, easy to mount 10-15KG heavy objects
-
Turn on and off controlled by the steering gear! The steering gear is controlled by a channel of the remote control
PDI-6221MG -180° Servo Motor specifications:
- Dead Band: 4μs 1500μs / 330hz
- Maximum pulse width: 500-2500us (suitable for single-chip control board)
- Angle range: actual angle 180°
- Speed (6.0V): 0.16sec/60°
- Speed (4.8V): 0.18sec/60°
- Torque (6.0V): 20.32 kg.cm
- Torque (4.8V): 17.25kg.cm

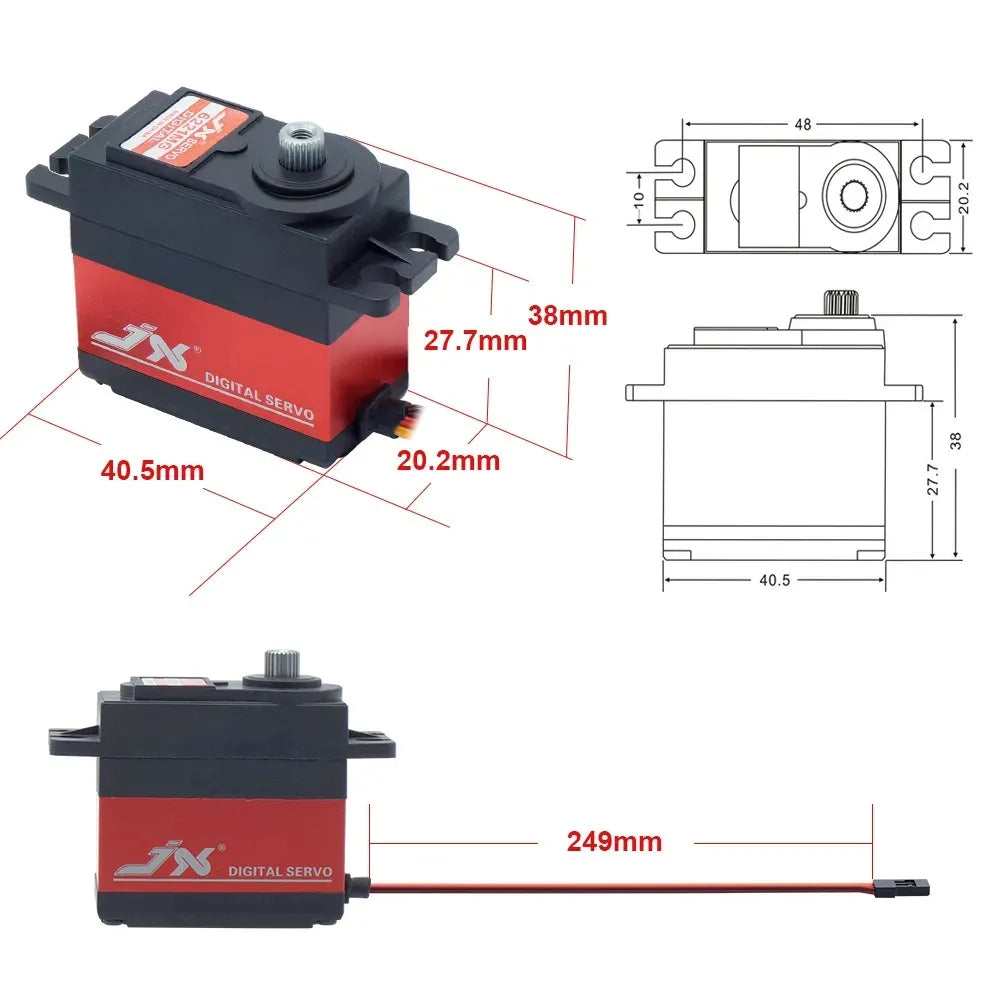

- Size: 40.5X20.2X40mm
- Weight: 62g
- Cable: JR 260 mm
- Bearing: 2BB
- Output teeth: 25T (Futaba universal)
- Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws
Package Includes:

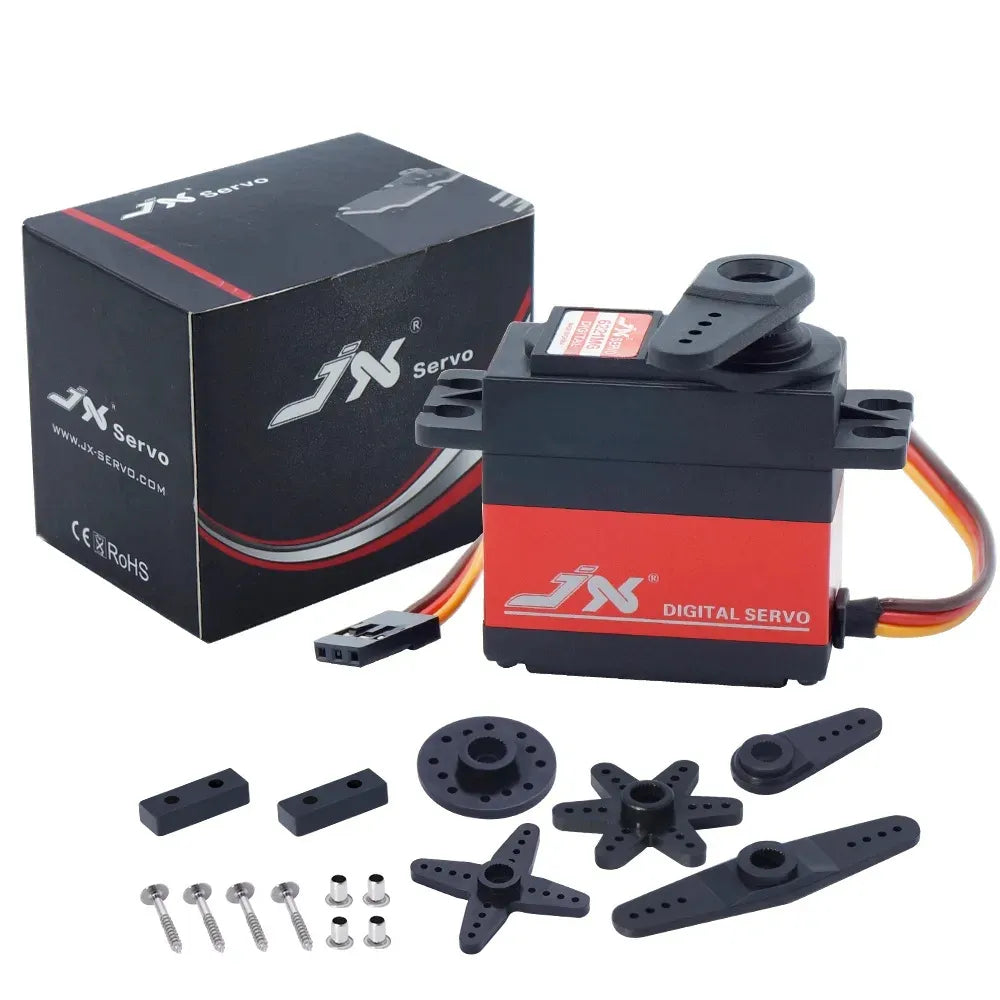

- 1 x PDI-6221MG -180° Servo Motor

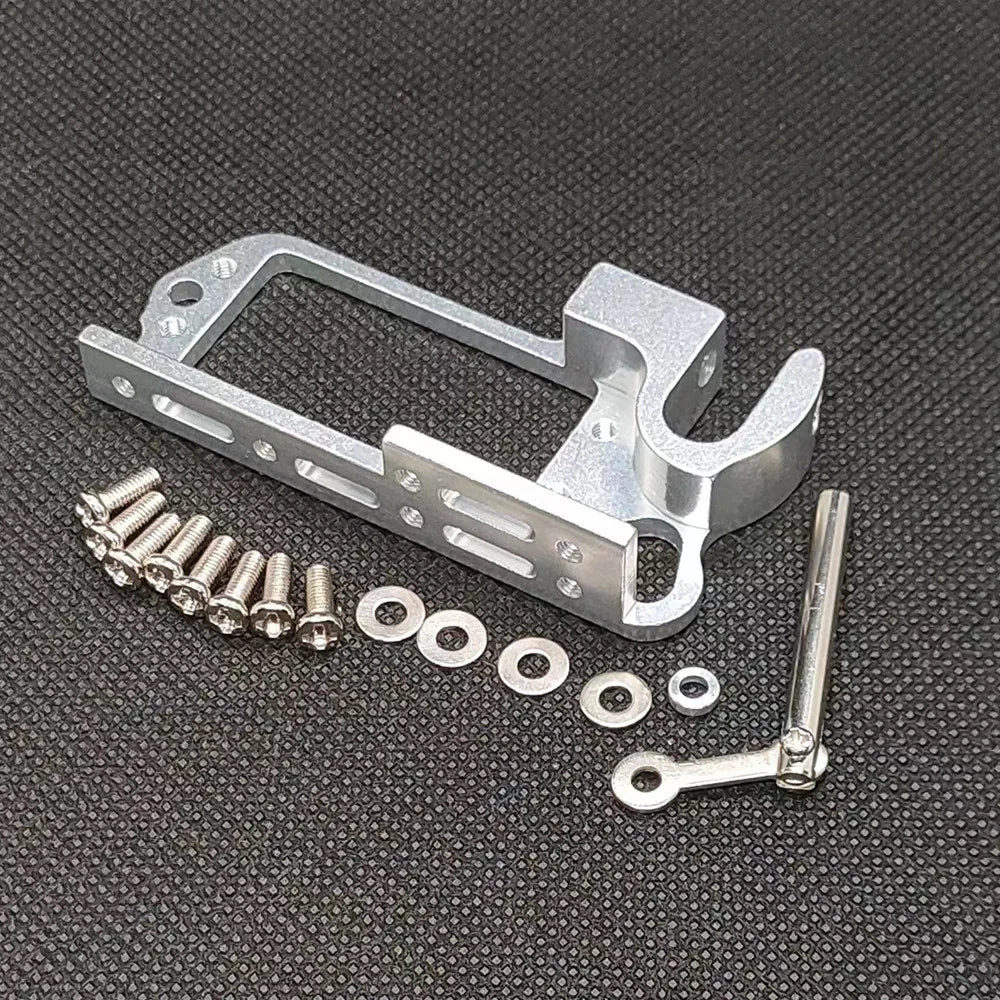

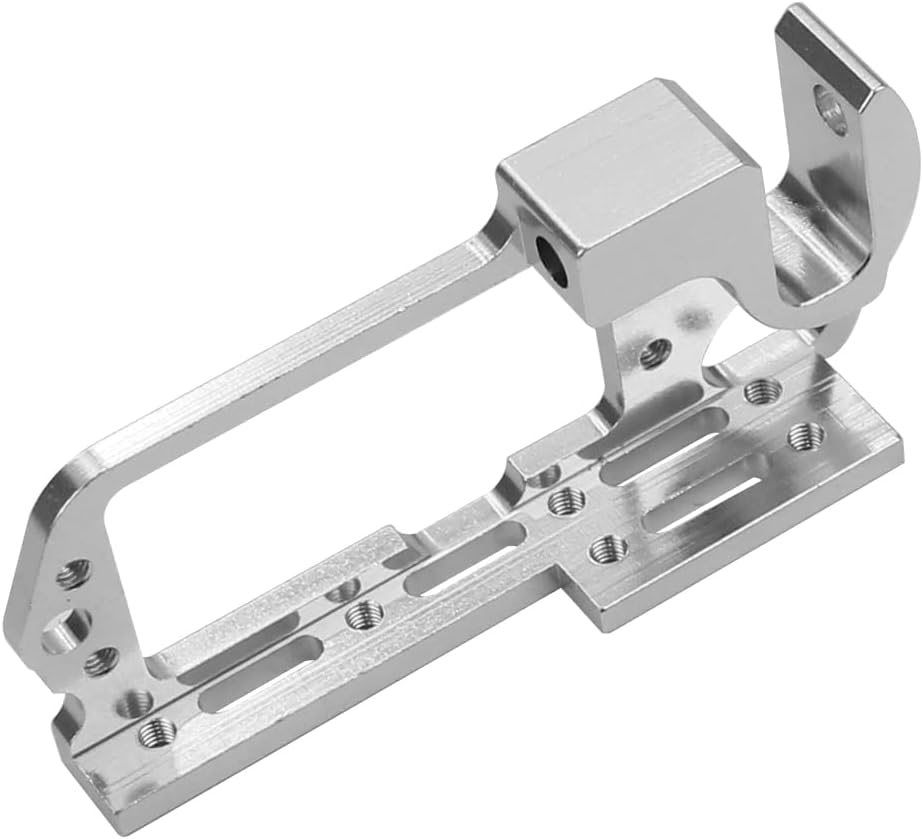

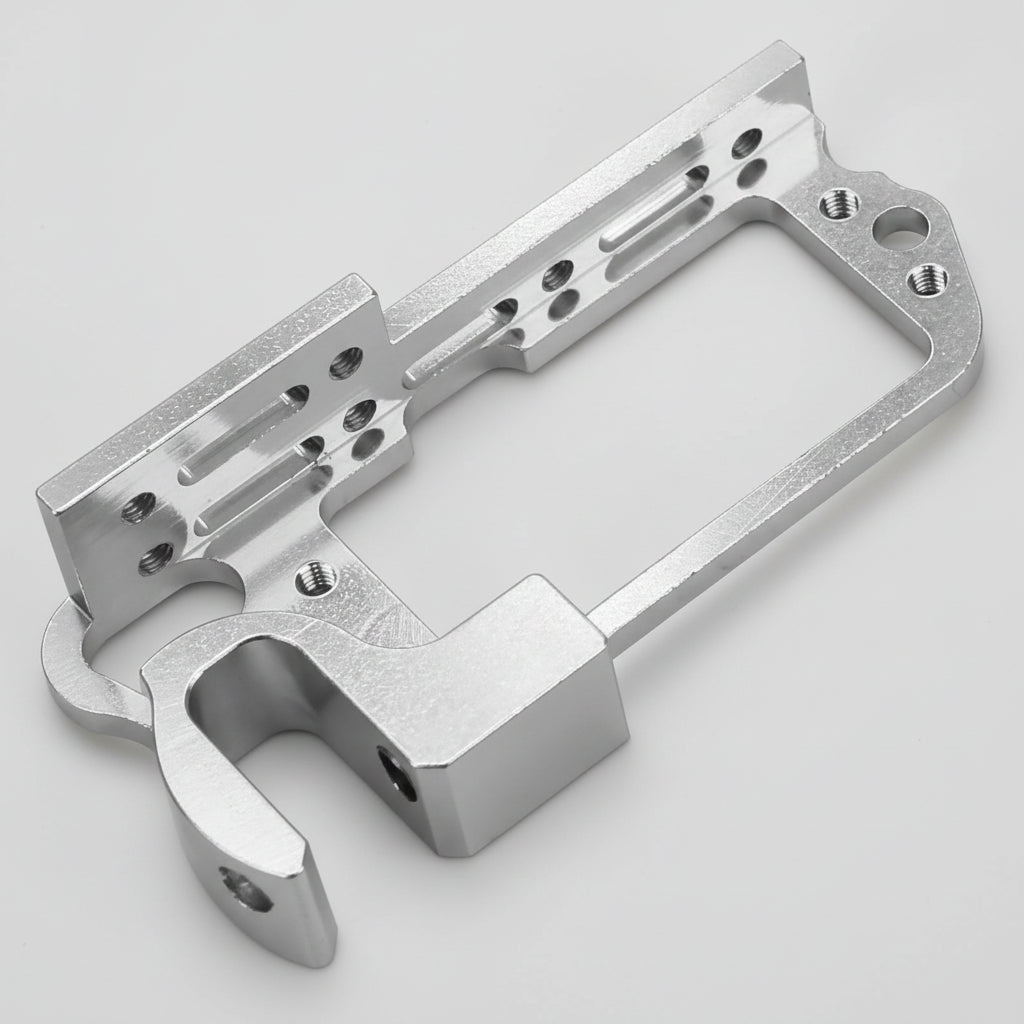

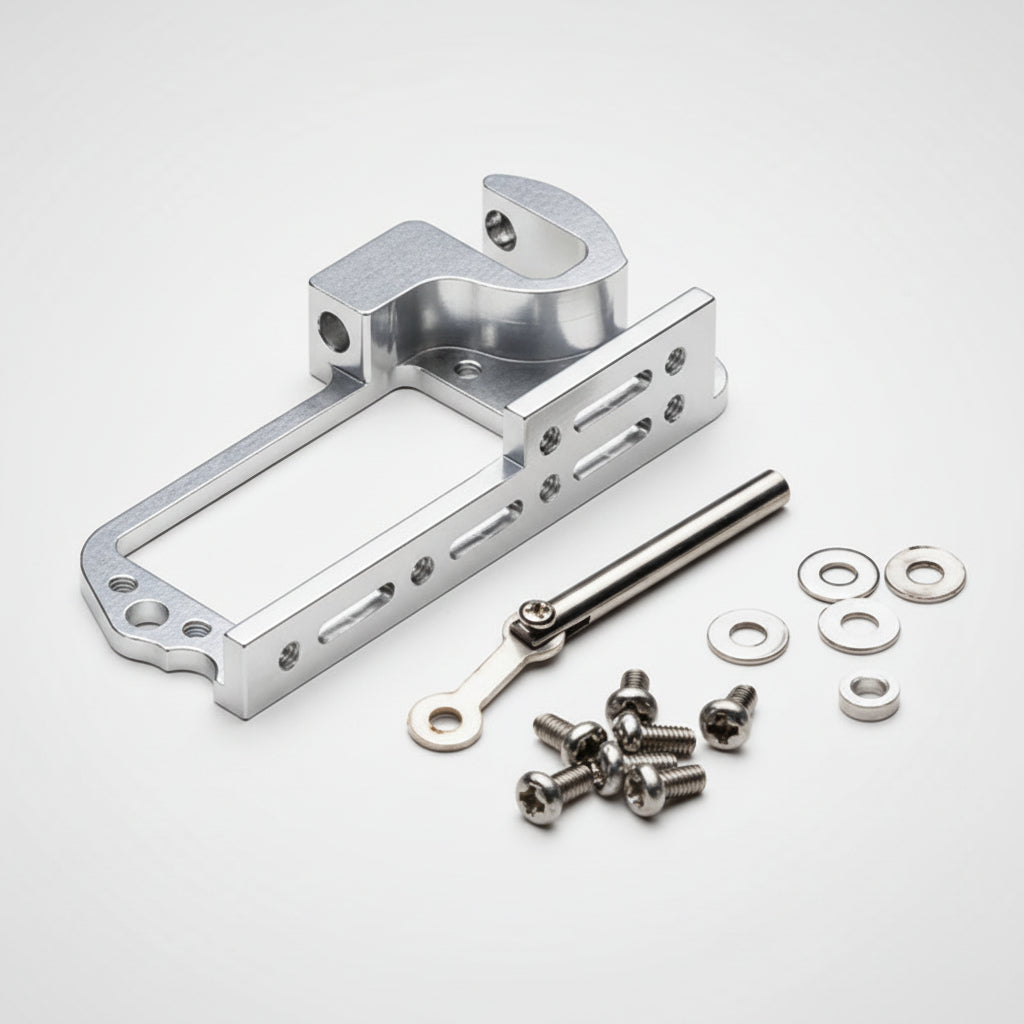

- 1 x Airdrop Rack kit
