Walksnail Avatar HD Mini 1S Kit Digital HD FPV System
Walksnail Avatar HD Mini 1S Kit Digital HD FPV System
Regular price
Rs. 16,964.00
Regular price
Sale price
Rs. 16,964.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
| 1080P/60fps | 3.1V-13V |
| 22ms low latency | Power 500mW |
| Built-in 32G storage | 6.8g light weight |
Bullet Points:
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.
6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
32G Built-in Storage
The Avatar mini 1s vtx comes with 32g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.
Specification |
|
| Camera | |
| Model | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g |
| Dimensions | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G(v2) / 32G(v3) |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| Antenna | IPEX |
| VTX Antenna | |
| Model | Avatar V2 antenna |
| Polarization | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Line Length | 90mm |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | D15mm*L105mm |
| Weight | 2g |

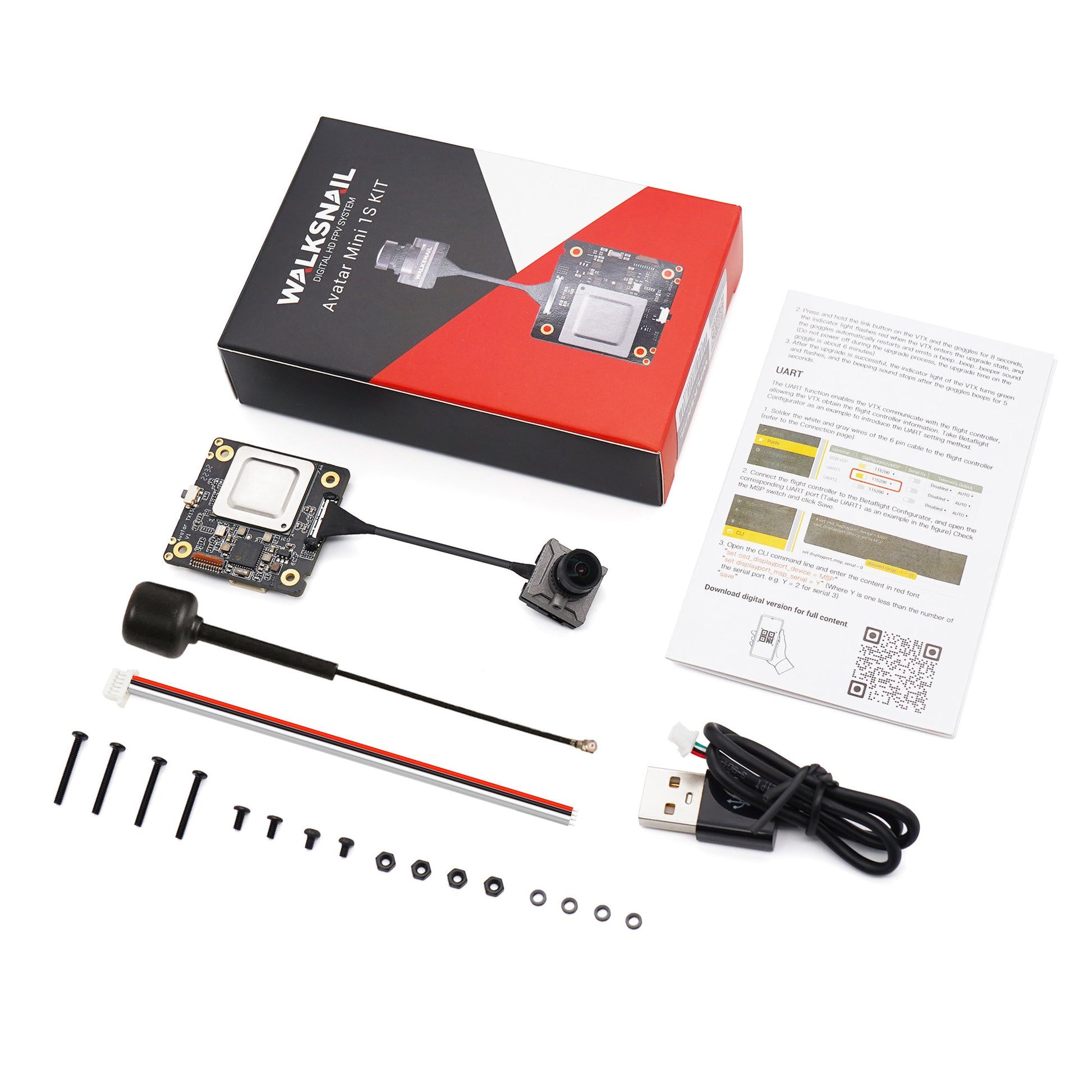

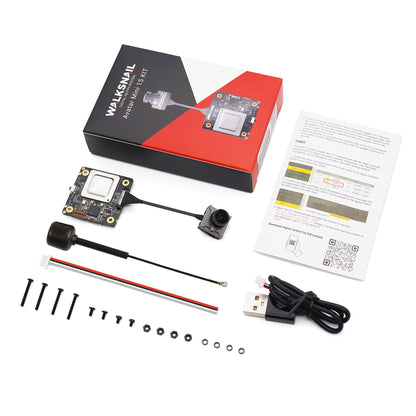

| Packing List | |
| Avatar Mini 1S KIT | X1 |
| 4 Pin USB Cable | X1 |
| 6 Pin Power Cable | X1 |
| M2x3/4mm Screws | X2 |
| M2x16mm Screws | X4 |
| M2 Screw nut | X4 |
| 2.1x3.4x1mm Gasket | X5 |
