1. Voltage: DC 2.4V – 5V
2. Average Current Consumption: < 2mA
3. Output mode: level or UART
4. Detection distance: 2cm – 450cm
5. Working temperature: -20°C to +70°C
6. It features temperature compensation.
7. Provides two output modes level or UART

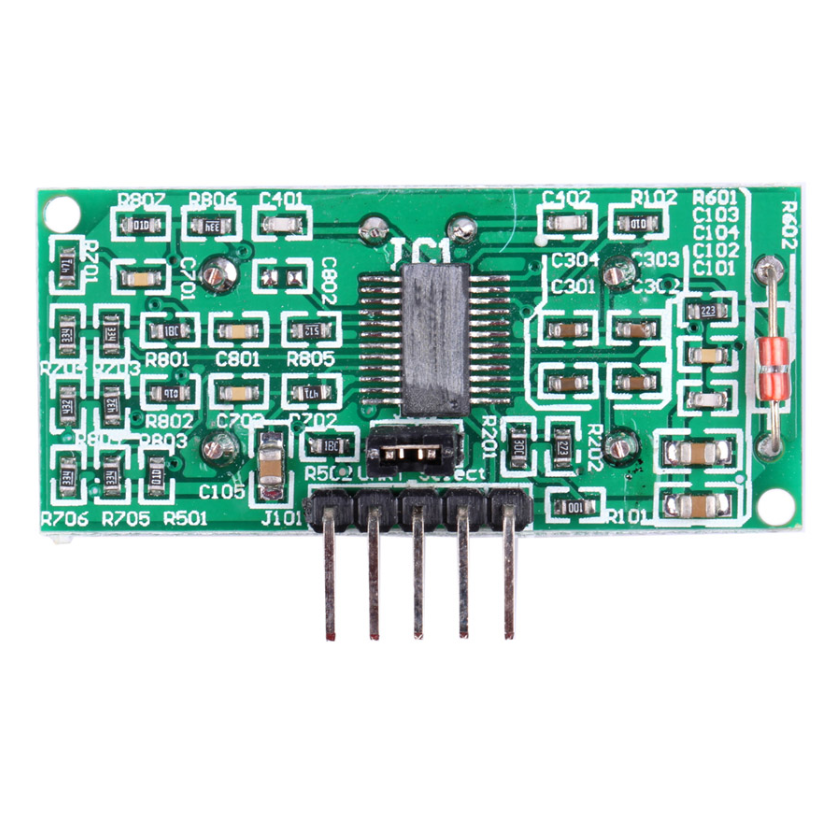

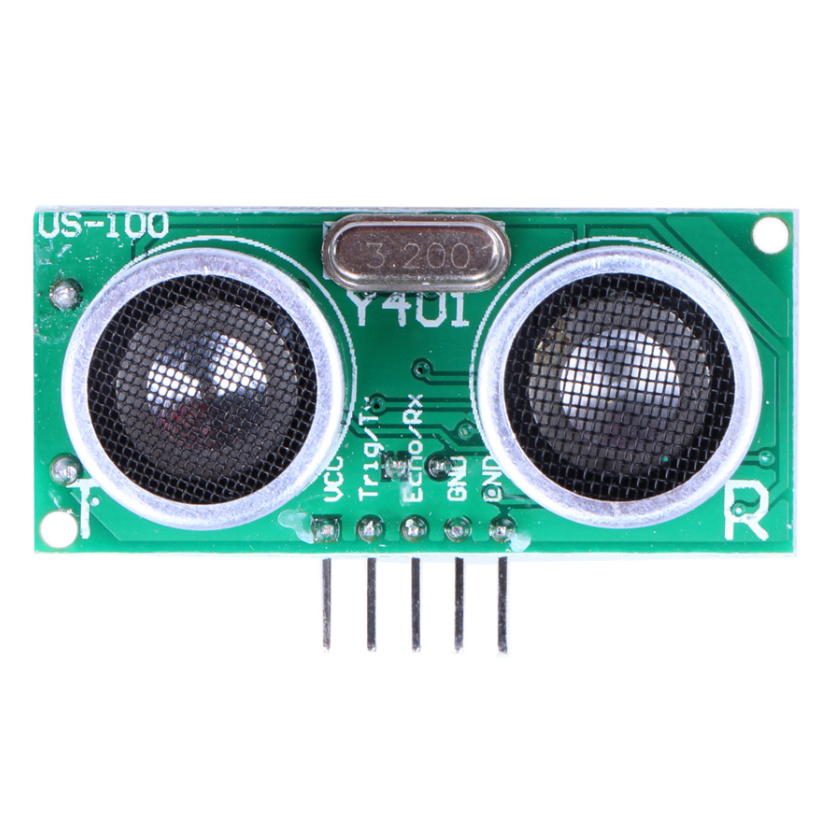

This is the US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation. The US-100 Ultrasonic Sensor can measure or detect the object in the range of 2 cm to 450 cm distance.

This US-100 has 2.4V to 4.5V wide voltage input range, the static function GPIO, a serial variety of communication methods, within the band watchdog, stable and reliable.

The US-100 Ultrasonic Distance Sensor Module operates from a wide voltage range and provides both digital and serial data output modes.

The US-100 features accurate temperature corrected range detection. It can output the distance in millimeters using a serial data output mode. Alternatively, the distance can be calculated by measuring the amount of time that a digital output is held high.

This sensor can be used with both 3.3V and 5V microcontrollers and only consumes 2mA when idle.

Features:

1. It features temperature compensation.
2. It has high precision up to 1 mm
3. Provides two output modes level or UART.
4. Detecting distance is from 2 cm to 450 cm
5. TTL Trigger input
6. TTL Echo output

Package includes:

1 x US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
