ULN2003 - Stepper Motor Driver Board(MICRO)

Rs. 199.00

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

5-12V power supply
4-way signal indicator
Chip all the pins have Input leads Mounted for easy connection to use
XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
Dimensions: 32 x 18 x 11mm (LxWxH)
Weight: 3 gm


--

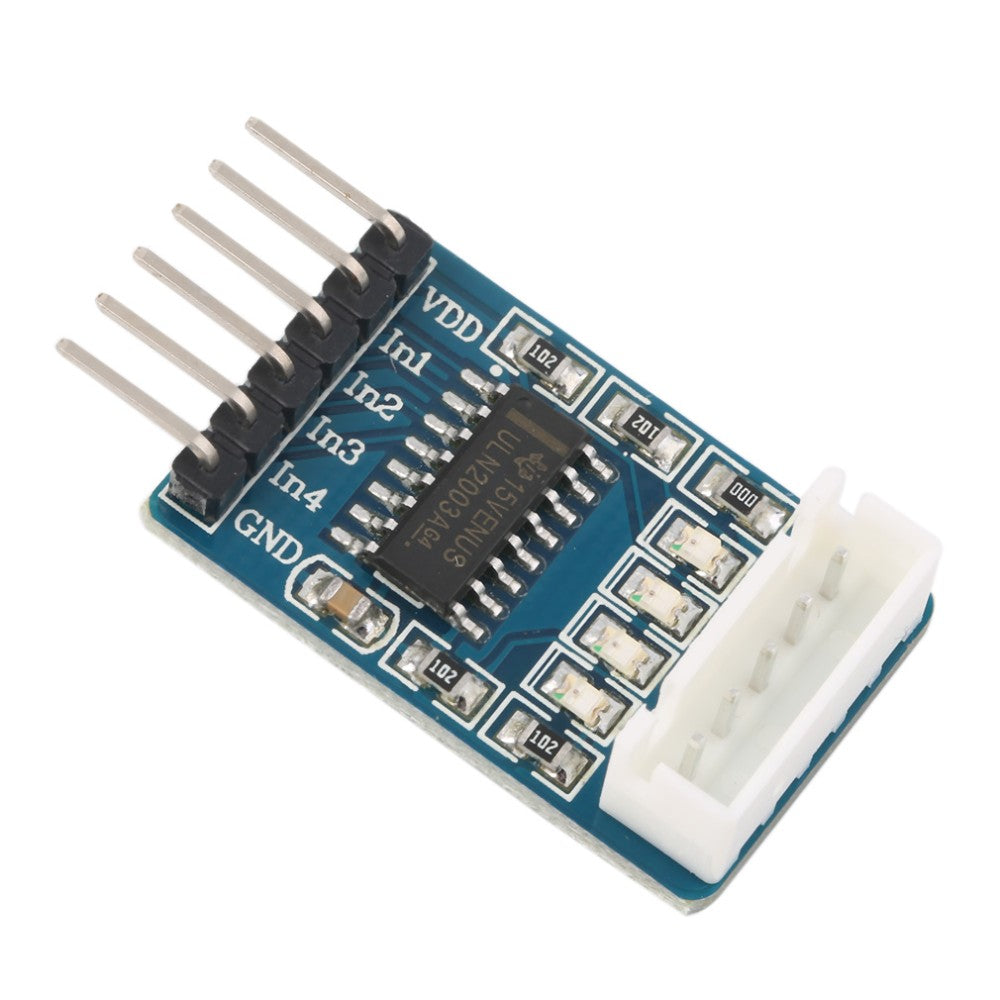

This is ULN2003 Driver Module Stepper Motor Driver, small size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.

Note: Color of PCB of may vary according to Manufacturer

HOW TO CONTROL STEPPER
The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive step motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.
