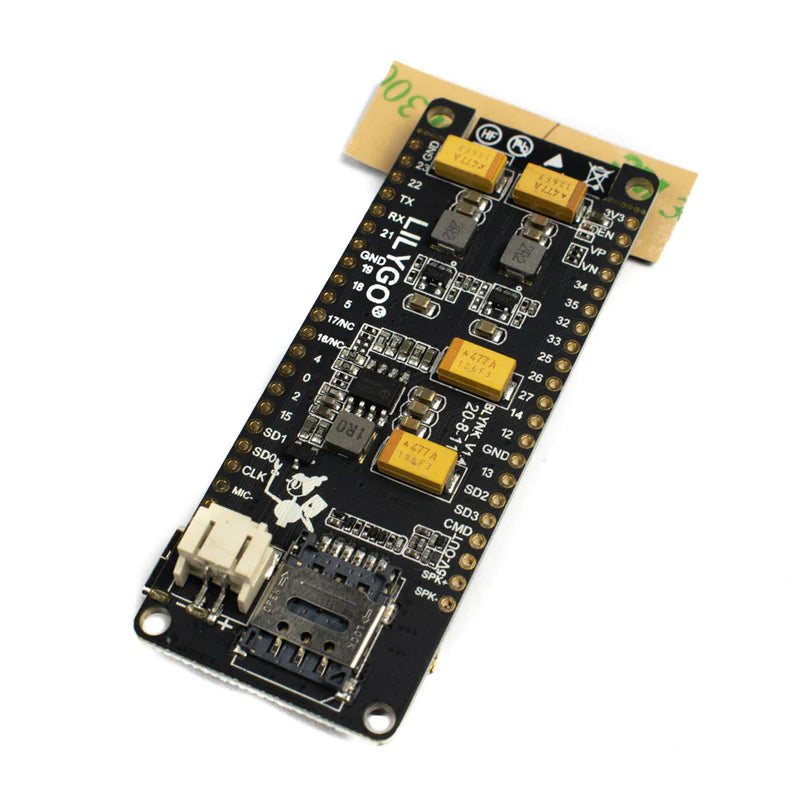

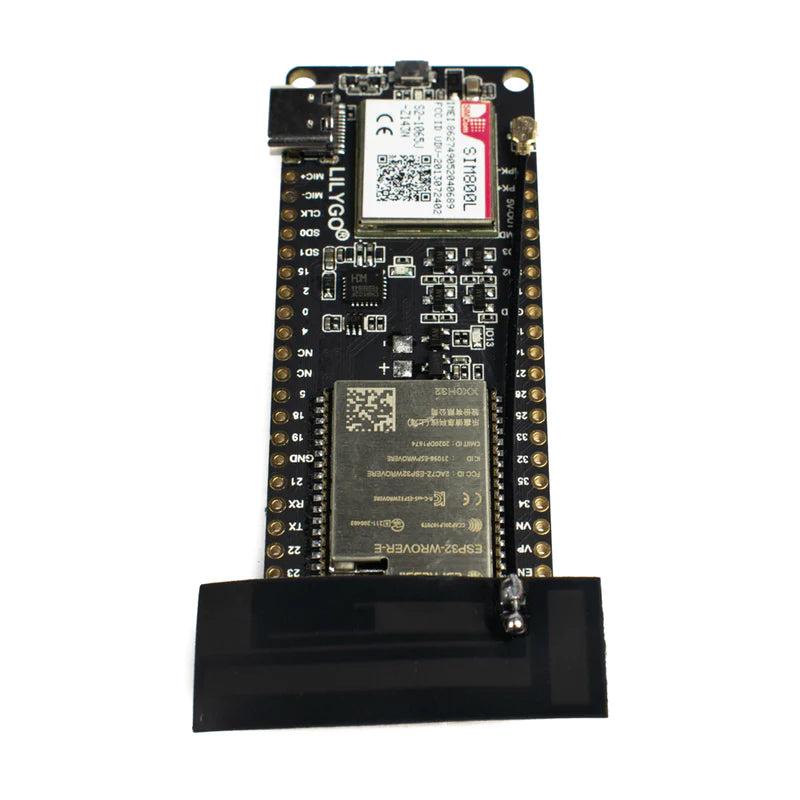

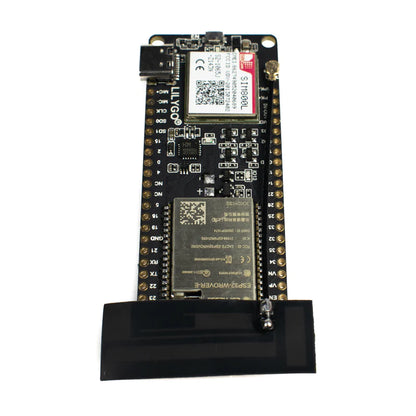

TTGO T-Call V1.3 ESP32 & SIM800L Wireless Module Lilygo

Rs. 2,599.00 Rs. 3,300.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

TTGO T-call is a modified ESP32 (ESP-WROVER-B 8MB PSRAM) development board with an integrated SIM800L 2G/GPRS module. The USB Type C pluggable board includes an integrated LiPo Battery Charging Circuit & Connector and is an excellent solution for developing IoT applications.
Aside from Wi-Fi and Bluetooth, you may use GSM/GPRS technology to communicate with this development board, and you can connect it to the internet using your SIM card data plan. This is ideal for IoT applications without access to a local router.

The TTGO T-call kit comprises header pins, a battery connector, and an external PCB antenna that may be connected to your board.

SPECIFICATIONS
Hardware Specifications
Chipset ESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
FLASH QSPI flash 4MB / PSRAM 8MB
SRAM 520 kB SRAM
Button Reset
USB to TTL CP2104
Modular interface UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
On-board clock 40MHz crystal oscillator
Working voltage 2.7V-3.6V
Working current About 70mA
Sleep current About 300uA
SIM card Only supports Nano SIM card
Working temperature range -40℃ ~ +85℃
Size&Weight 78.83mm*28.92mm*8.06mm(11.77g)
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
JST Connector 2Pin 1.25mm
USB Type-C
Wi-Fi
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol
802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerisation, support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m
Bluetooth
Protocol meet Bluetooth v4.2BR/EDR and BLE standard
Radiofrequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Software specification
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS
