TTGO T-Call ESPRESSIF ESP32 SIM800L Wireless Communication Module Lilygo
TTGO T-Call ESPRESSIF ESP32 SIM800L Wireless Communication Module Lilygo
Regular price
Rs. 2,199.00
Regular price
Sale price
Rs. 2,199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Chipset :ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash 4MB / PSRAM 8MB
- SRAM:520 kB SRAM
- Button: Reset
- USB to TTL: CP2104
- Modular interface: UART,SPI,SDIO,I2C,PWM,TV PWM,I2S,IRGPIO
- On-board clock:40MHz crystal oscillator
- Working voltage:2.7V-3.6V
- Working current: About 70mA

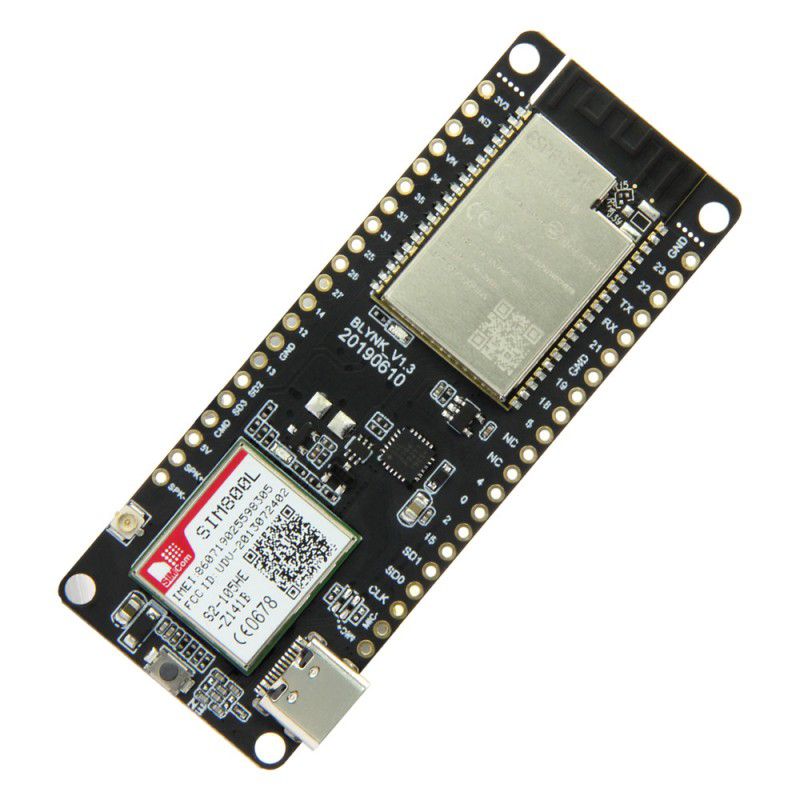

This is a LILYGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered. The module is used for wireless communication. The ESP V1.4 ESP32 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.
This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.
Note : Board Design & writing may varies
Features:
- The SIM800L wireless communication module is integrated with an ESP32 chip with a dual-core 32-bit LX6 microprocessor.
- The SIM800L ESP32 wireless module needs a power supply of 5V/1A and has a Type C port.
- The ESP32 SIM800H wireless communication module features 802.11 b/g/n wifi protocol and Bluetooth v4.2BR/EDR and BLE standard protocol.
- This wireless communication module supports cloud server development and SDK for user firmware development.
Package Includes:

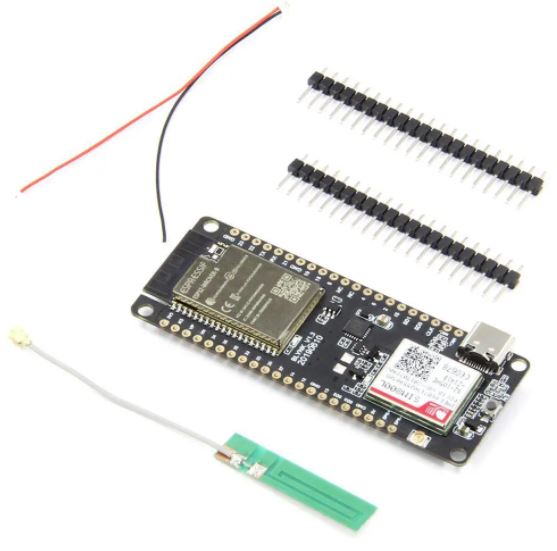

1 x LILYGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module
