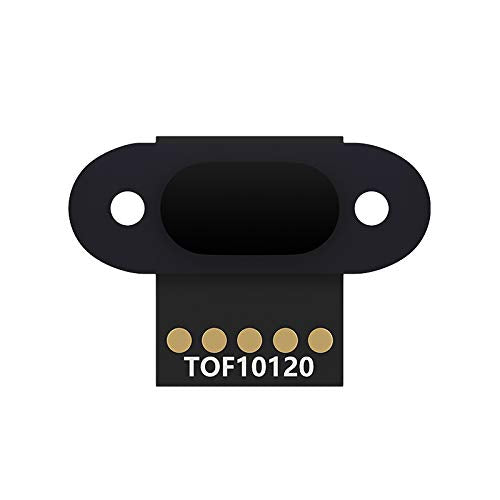

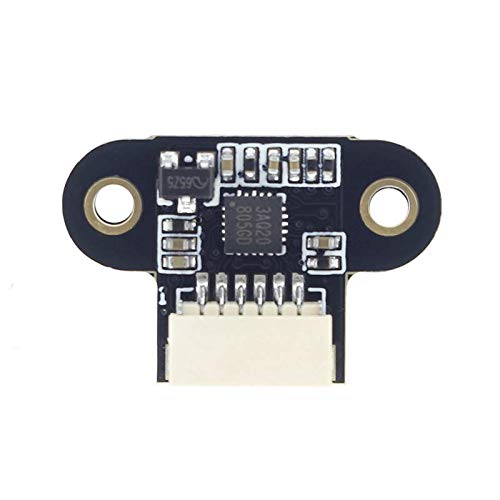

TOF10120 LASER RANGING SENSOR MODULE UART / I2C 3-5V RANGE 10-180CM
TOF10120 LASER RANGING SENSOR MODULE UART / I2C 3-5V RANGE 10-180CM
Regular price
Rs. 699.00
Regular price
Sale price
Rs. 699.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-offlight technology allows performance independent of object reflectance.
TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
Specifications::
- Ranging Range 100 - 1800mm
- VCC: 3 - 5V DC
- ICC_VDD: 35mA
- Topr - 20 + 70 °C
- Tstg - 40 + 85 °C
- Communication protocol
- Bits per Second:9600
- Data Bits : 8
- Parity : None
- Stop bits : 1
- Flow Control : None
- Small ceramic package(20×13.2×2.0mm)

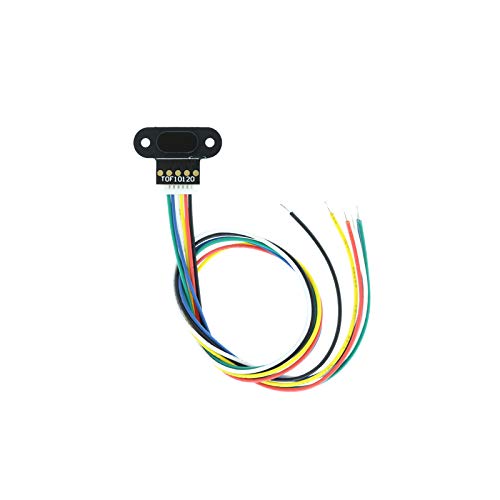

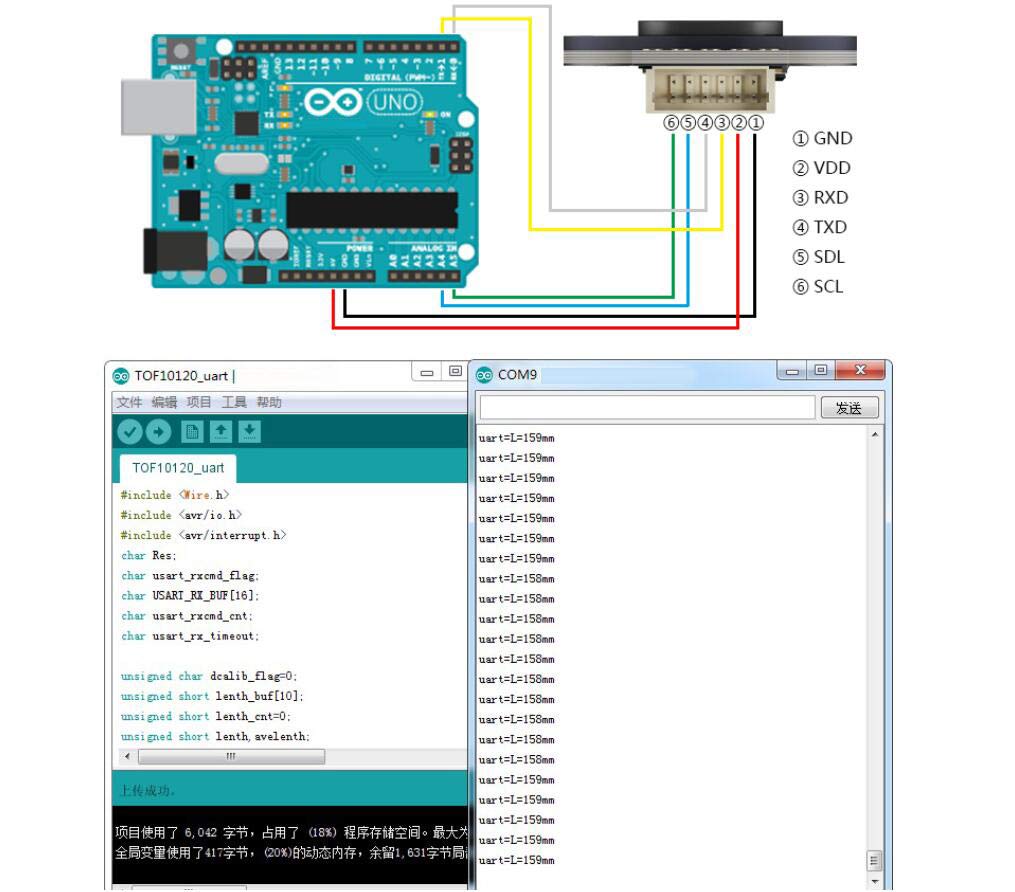

Pinouts:
- GND - Black
- VCC - Red
- RXD - Yellow
- TXD - White
- SDA - Blue
- SCL - Purple
Package Included:
1 x TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor
