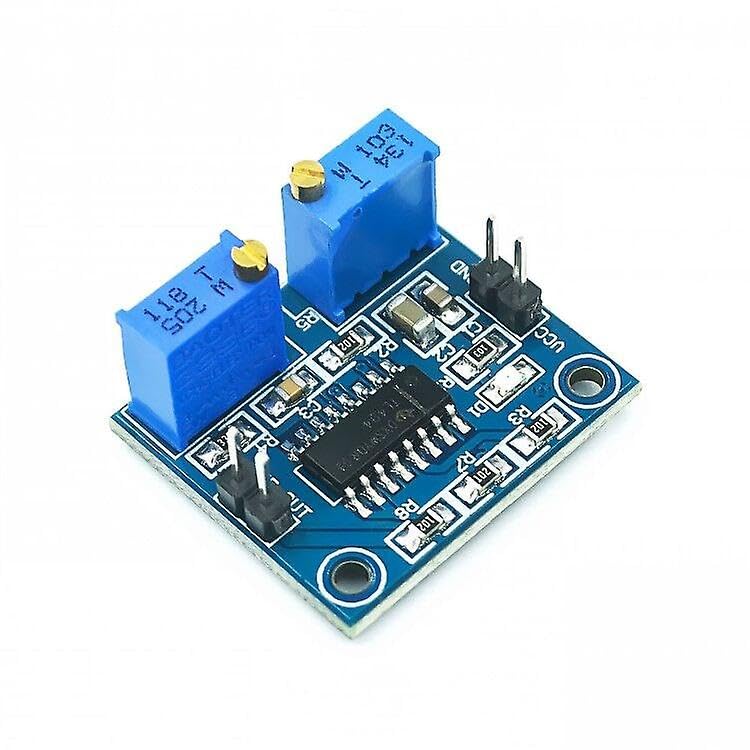

TL494 PWM Controller Module Adjustable 5V Frequency 500-100kHz 250mA
TL494 PWM Controller Module Adjustable 5V Frequency 500-100kHz 250mA
Regular price
Rs. 129.00
Regular price
Sale price
Rs. 129.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- PWM output frequency in the range 500Hz-100KHz can be adjustable, maximum duty cycle to 96%.
- Output drive capability, signal stability.
- Working voltage: DC 7V-40V, Limit 42V.
- Maximum output current: 250mA
- Output voltage: DC5V
- Maximum power consumption: 1000mW
- Working ambient temperature: 0-70 ℃
- Positioning hole: 2.7mm diameter (M2.5)

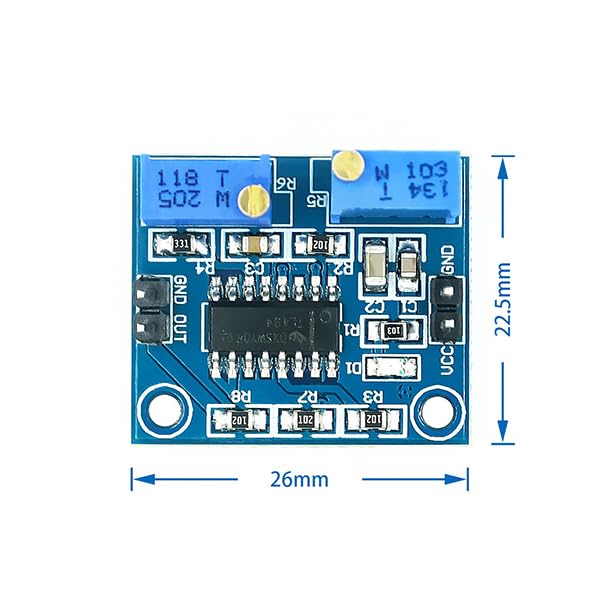

- Board size: 26mmx23mm
Features:
1.Complete PWM power-control circuitry
2.Uncommitted outputs for 200-mA sink or source current
3.Output control selects single-ended or push-pull operation
4.Internal circuitry prohibits double pulse at either output
5.Variable dead time provides control over total range
6.Internal regulator provides a stable 5-V reference supply with 5% tolerance
7.Circuit architecture allows easy synchronization
