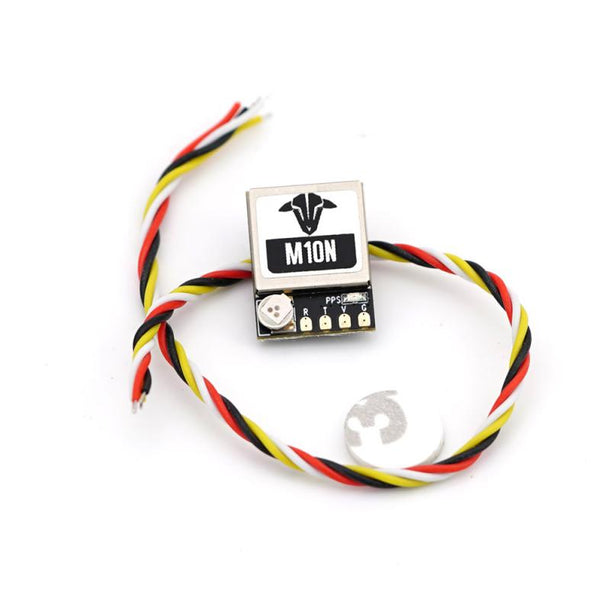

The TBS M10N GPS Glonass module is a compact, high-performance navigation solution designed specifically for sub-250 gram long-range drones. Utilizing both GPS and GLONASS satellite systems, it ensures precise positioning and reliable signal acquisition even in challenging environments. Its miniaturized form factor makes it ideal for lightweight drone builds, enhancing flight stability and navigation accuracy without adding unnecessary weight. Perfect for expert pilots seeking dependable long-range capabilities in a compact package.

Specifications:

Electrical Characteristics

• Chip: M10050
• Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN)
• Default Position System: GPS, BDS, GALILEO
• Augmentation System: SBAS, QZSS
• Channel: N/A

Sensitivity

• Tracking & Navigation: -166 dBm
• Reacquisition: -160 dBm
• Cold Start: -148 dBm
• Hot Start: -160 dBm

Accuracy

• Horizontal Position: 2.0 m CEP
• Velocity: 0.05 m/s
• Dynamic Heading: 0.3°
• Time Pulse: RMS 30 ns / 99% within 60 ns

Acquisition

• Cold Start: 27 s
• Hot Start: 1 s
• Aided Start: 1 s

Data Output

• Baud Rate: 4800 – 921600 bps (default: 115200 bps)
• Signal Level: TTL
• Protocols: NMEA, UBX
• UBX Messages: PVT
• NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
• Update Rate: 0.25 Hz – 18 Hz (default: 10 Hz)
• FLASH Memory: Retains configuration after power loss

Operational Limits

• Altitude: 80,000 m
• Velocity: 500 m/s
• Dynamics: < 4 g

Power

• Input Voltage: 3.6V – 5.5V (typical: 5.0V)
• Power Consumption: 15 mA @ 5.0V

Physical

• Dimensions: 16.5 × 12.3 × 6.0 mm
• Weight: 3 g
• Connector: 1.00 mm 4-pin connector

Temperature

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C

LED Indicator

• PPS LED: Off when no fix; flashes blue after 3D positioning, the blue light flashes

Package Includes:

1x M10N GPS

1x Data Wire
