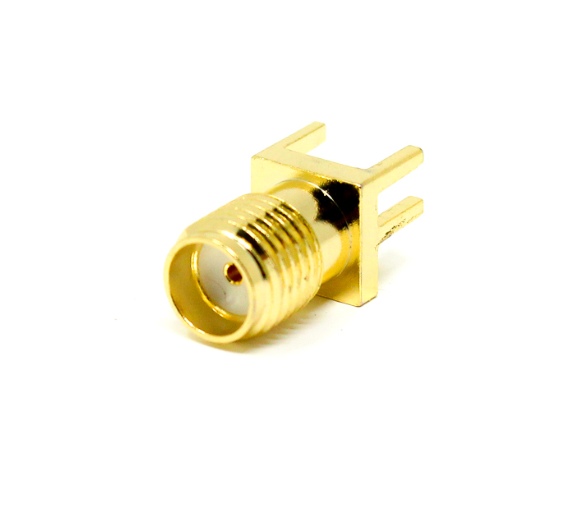

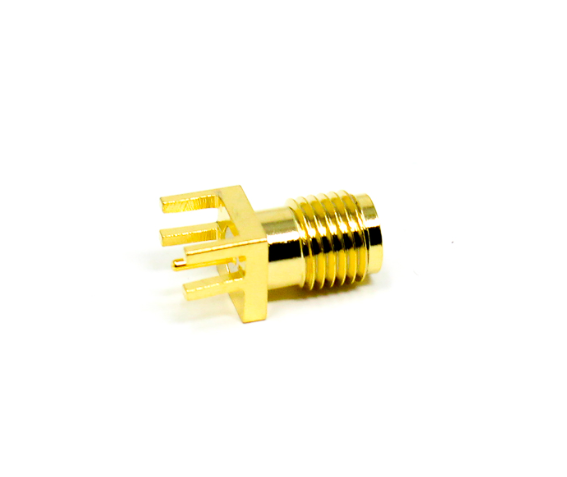

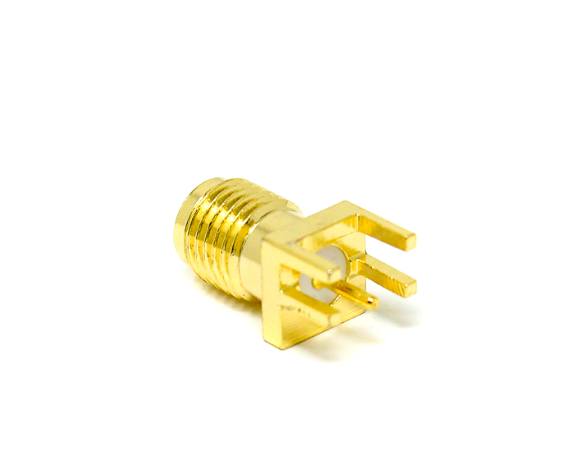

SMA Female Connector Through-Hole Edge PCB Mount
SMA Female Connector Through-Hole Edge PCB Mount
Regular price
Rs. 21.00
Regular price
Sale price
Rs. 21.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features:
- SMA Connector, Female, Straight, PCB Connector, Plate Edge Mount, Copper, Gold Plating;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
Electrical Characteristics
- Impedance 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage:500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance 6.0 m (Milliohms max.)
- Outer Contact Resistance 2.0 m (Milliohms max.)
- Insulation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temperature Range: -55C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
