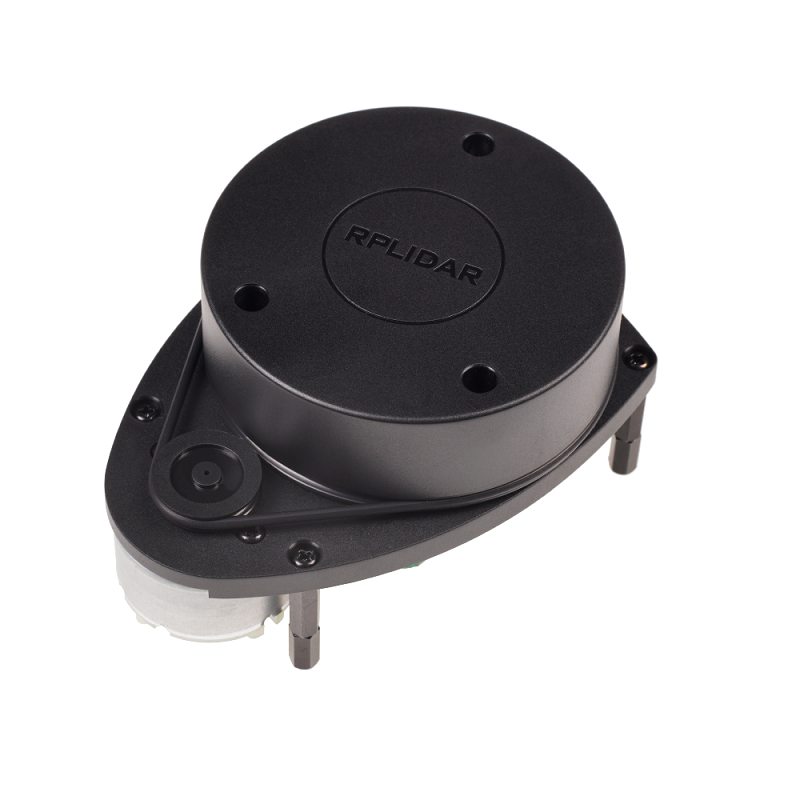

SLAMTEC RPLIDAR A1 M8 360° Laser Scanner Dev Kit Range Finder 6m
SLAMTEC RPLIDAR A1 M8 360° Laser Scanner Dev Kit Range Finder 6m
Regular price
Rs. 8,849.00
Regular price
Sale price
Rs. 8,849.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Distance Range (Radius): 0.15m to 6m, white objects (Diameter Range – 12m)
- Angular Range: 0 ~ 360º
- Distance Resolution: < 0.5mm
- Angular Resolution: <= 1 º
- Sample Duration: 0.5 ms
- Sample Frequency: >=8000 Hz
- Scan Rate: 1 ~ 10Hz, Typical 5.5Hz
Features:
- Measuring distance: Up to 6 meters (Radius).
- Measures distance data in more than 8000 times/s.
- 360 Degree Omnidirectional Laser Range Scanning.
- 8000 times sample rate, the highest in the current economical LIDAR industry.
- OPTMAG Original Design, prolong the lifespan.
- Configurable Scan Rate from 2-10Hz.
- Ideal for Robot Navigation and Localization.
- Plug and Play.
Specifications:
| Recommended applications | Vacuum robot,Home robot |
| Measuring Range | 0.15m - 12m |
| Sampling Frequency | 8K |
| Rotational Speed | 5.5Hz |
| Angular Resolution | ≤1° |
| Dimensions | 96.8 x 70.3 x 55mm |
| System Voltage | 5V |
| System Current | 100mA |
| Power Consumption | 0.5W |
| Output | UART Serial (3.3 voltage level) |
| Temperature Range | 0℃-40℃ |
| Angular Range | 360° |
| Range Resolution | ≤1% of the range（≤12m) ≤2% of the range（12m～16m) |
| Accuracy | 1% of the range（≤3 m） 2% of the range（3-5 m） 2.5% of the range（5-25m） |
