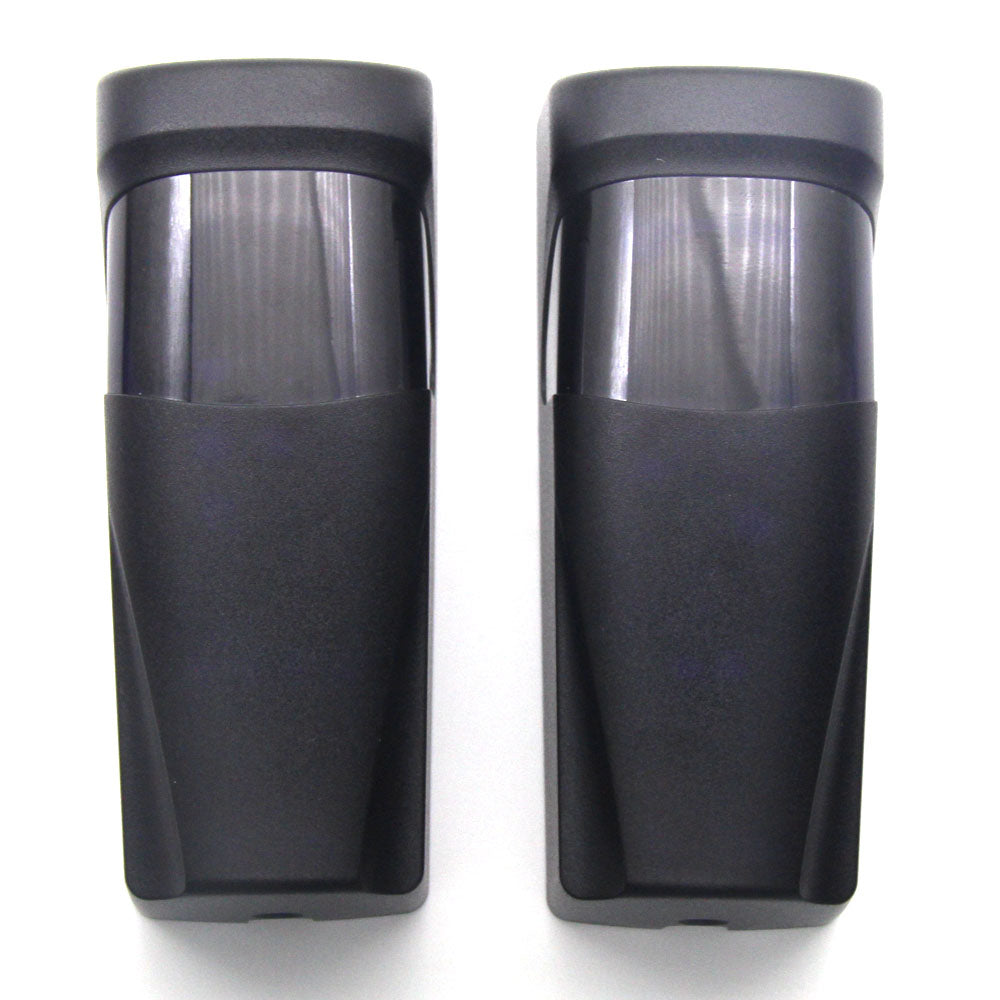

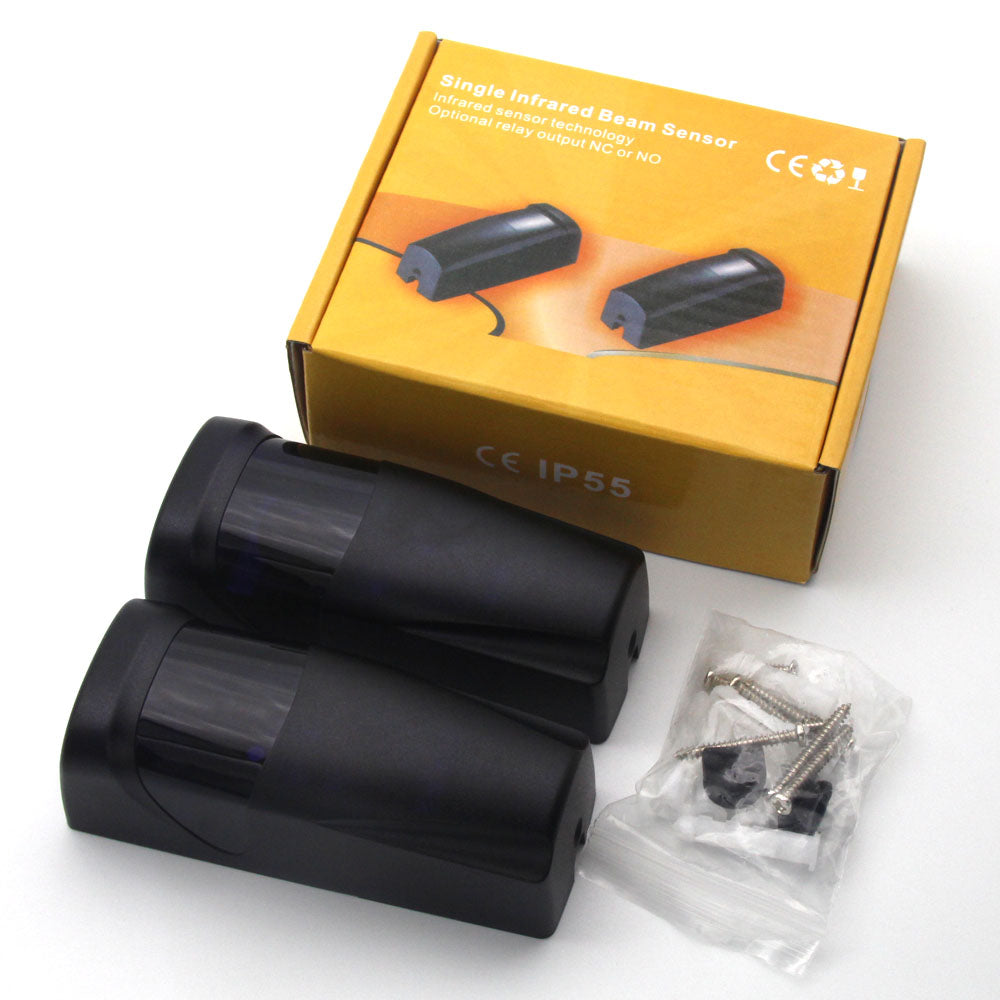

Single Infrared Beam Sensor - Optional relay output NC or No
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
TECHNICAL SPECIFICATIONS
- Technology: Infrared
- Receiver Range: <15m (Range can be reduced to 30% in bad weather conditions: for, rain, dust, etc)
- Infra-red Frequency: 1.92Khz
- POWER SUPPLY: 12 to 24V DC/AC
- WAVE LENGTH: 940nm
- INPUT: RX 15MA-TX 30MA
- OPERATING TEMPERATURE : -20C to 70C
- RELAY OUTPUT: 1A max 36V
- DIMENSION: 100X35X40 MM
CONNECTING THE SENSOR
Installation: The best install height should big in 20 cm, install distance to be no smaller than 2 meters. Install shouldmake red outside the protection equip perpendicularity to place, and is on-line at same level. Instalshould install first to receive part, install blast-off part again. When together at always line, receive the OFFlight in the machine in order to put out, then fix, connect the line to install completion namely.
Attention: Because this product shoot power compare big, so when shoot machine with receive the machinedistance too near hour will appear have no the phenomenon of the reaction, at this time should drawback them one meter at least behind again try. When Install distance very near, discover not intelligentphenomenon, can shoot and receive medium of the condensing lens remove, can immediately raisean intelligent degree.
MOUNTING THE SENSOR
Rotation through 180 allows the alignment of the photocells irrespectiveof the way they are fixed to the base.
