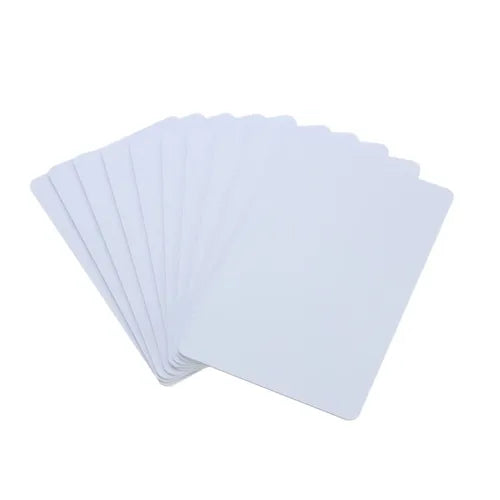

13.56 Mhz RFID Card Proximity Card (Thin)

1. Contactless transmission of data and supply energy (no battery needed)
2. Operating distance: Up to 100mm (depending on antenna geometry)
3. Operating frequency: 13.56MHz
4. Data transfer: 106 kbit/s
5. Data integrity: 16 Bit CRC, parity, bit coding bit counting
6. Anticollision
7. Typical ticketing transaction: <100 ms ( including backup management)

This is RFID 13.56MHz Card used for Contactless transmission of data and supplies energy with no battery needed. Its Operating distance is Up to 1 Meter depending on antenna geometry. Operating frequency is  13.56MHz and Data transfer speed is 106 kbit/s.

It is featured with Data integrity of 16 Bit CRC, parity, bit coding bit counting which allows Anti collision. These cards are typically used in ticketing transaction: <100 ms including backup management.

Applications :

1. Public transportation
2. Access control
3. Event Ticketing
4. Gaming & identity

Features:

1. Contactless transmission of data and supply energy (no battery needed)
2. Anticollision
3. EEPROM
   • 1Kbit, organized in 16 sectors, each district two passwords
   • User definable access conditions for each memory block
   • Data retention of 10 years.
   • Write endurance 100 000 cycles
4. Security
   • Individual key set per sector (per application) to support multi-application with key hierarchy
   • A unique serial number for each device
   • Transport key protects access to EEPROM on-chip delivery
