Description:

NO means Normally Open:When the magnet together, the circuit is conductive( light off ); when the magnet separate, the circuit is not conductive ( light on). When make order,pls check carefully!

These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

Work as an , ideal for metal door and window.

Specification:

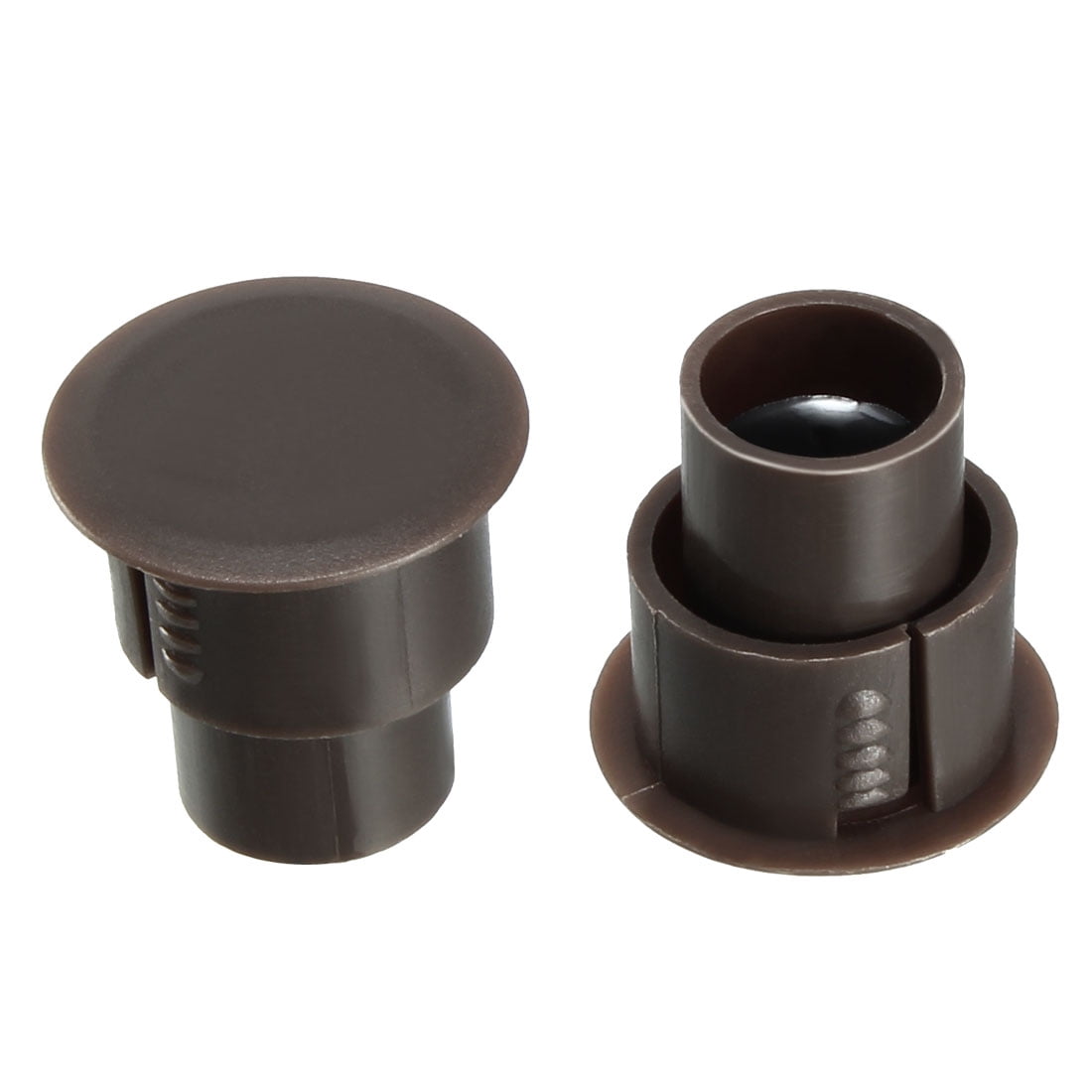

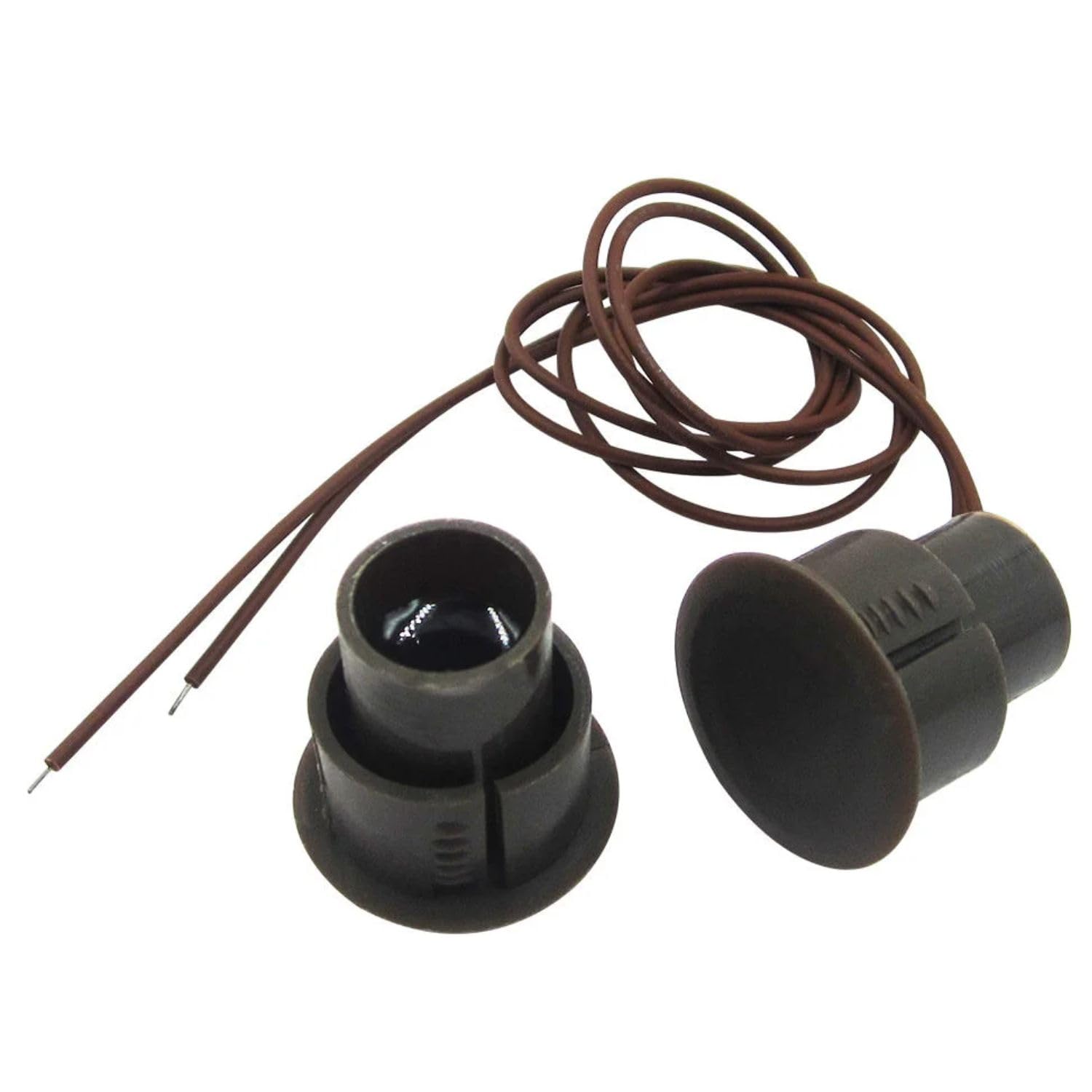

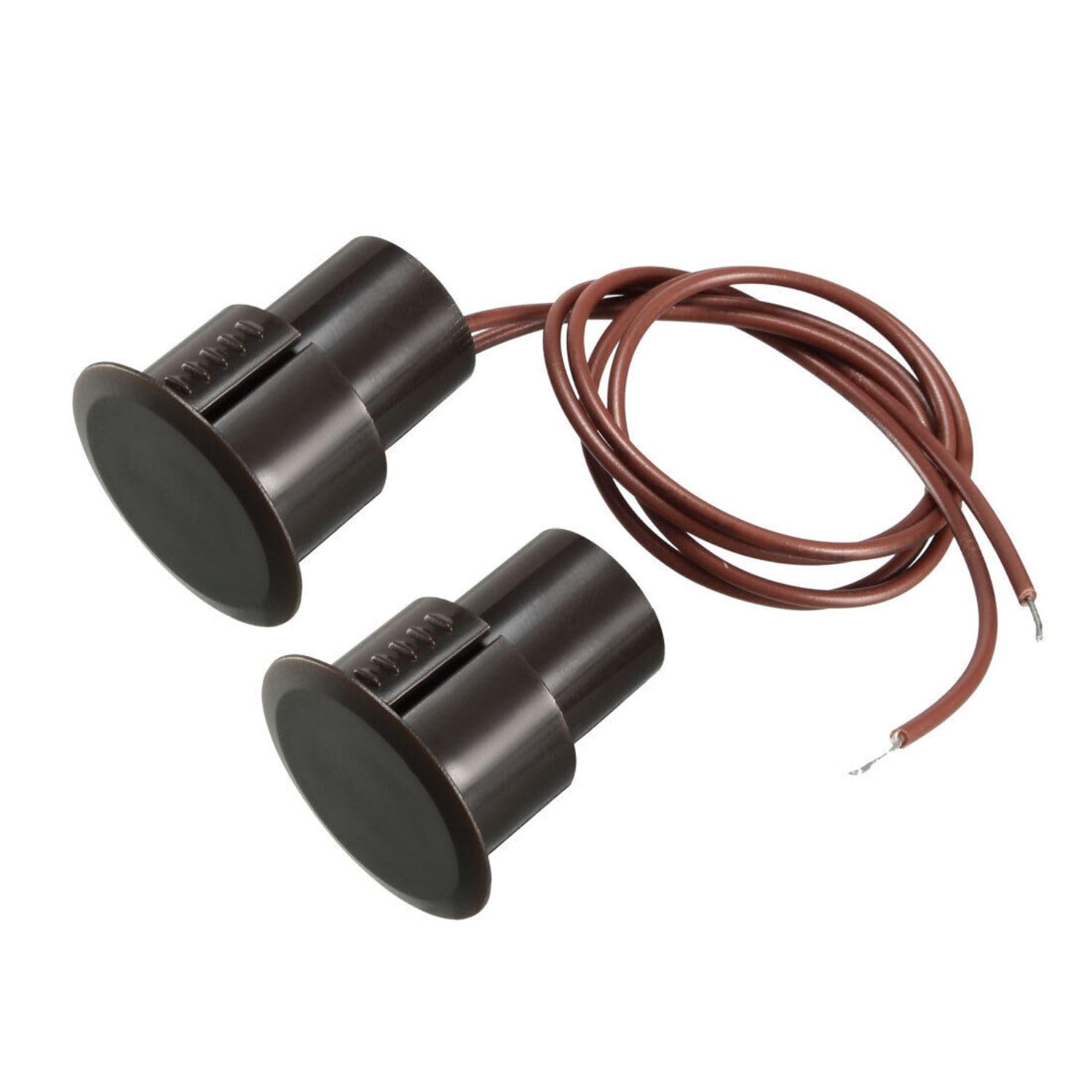

• Product Name: Magnetic Door Switch
• Model: RC-36
• Contact Type: NO (Normally Open)
• Actuation Distance: 20-30mmMax.
• Current: 0.5AMax.
• Contact Power: 10W
• Working Voltage: DC100V
• Each Size(Approx): 23 x 22.5mm / 0.91 x 0.89-inch (H*D)
• Cable Length(Each): 32cm / 12.6-inch
• Material: ABS (Housing)
• Wire Type: 1007UL#24AWG
• Color: Brown


Package Content:

1 x Magnetic Door Switch

Note:

Door magnetic induction can only provide a switch signal to the device, which can not directly load the power, nor directly connect the lamp!
