Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot

Rs. 15,999.00 Rs. 20,000.00

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

PIXHAWK PX4 2.4.8 Flight Controller is a high-performance autopilot-on-module suitable for fixed wing, multi rotors, helicopters, cars, boats and any other robotic platform that can move. It is targeted towards high-end research, amateur and industry need and combines the functionality of the PX4FMU + PX4IO.

The universal vibration damping mount or shock absorber has a list of useful applications. This is free camera mounting to Flight controller isolation. It absorbs vibration, the center supported plate is ideal for sensitive electronics and cameras. The flush flat-bottom mounting allows bolt or tape style attachment.

A new generation Ublox GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy; support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The GPS Folding Antenna Base mount comes will a laser cut adhesive pad to quickly attached your GPS module, while the mount itself can be fixed to your craft using the base plate M3 hole, or the cross slides.

The PIXHAWK PX4 2.4.8 Power Module is a simple way of providing your Pixhawk PX4 2.4.8; with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

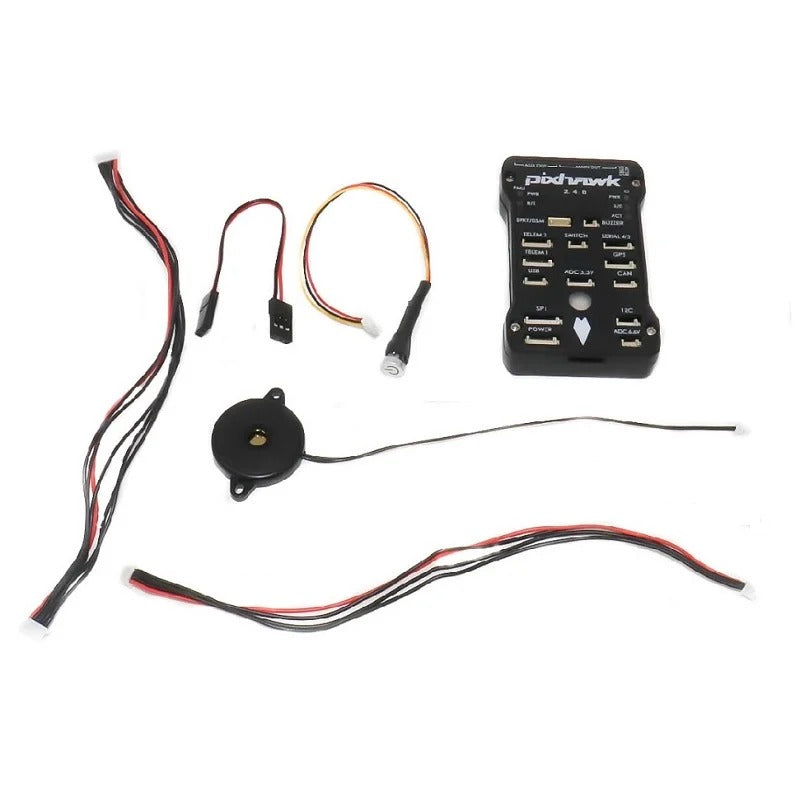

Package Includes:
1 x Pixhawk V2.4.8 Flight board with Original Shell.
3 x Connecting Cables

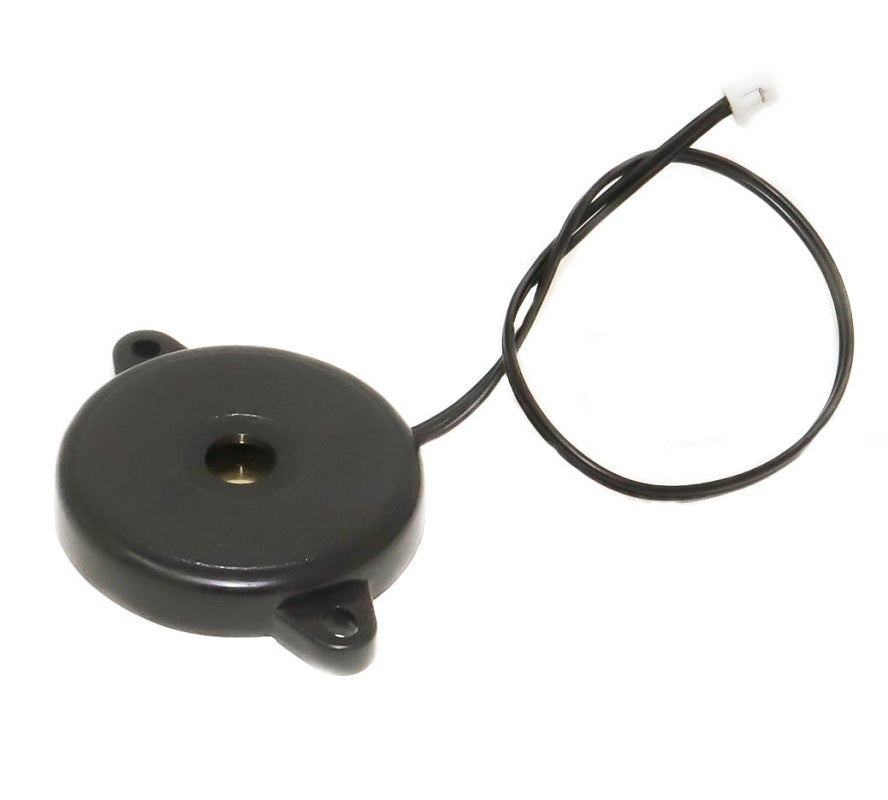

1 x Buzzer Module
1 x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set.
1x NEO-M8N GPS Module with translucent Shell.
1 x GPS Folding Base Antenna set.
1 x Pixhawk Power Module.

Specifications and Features:

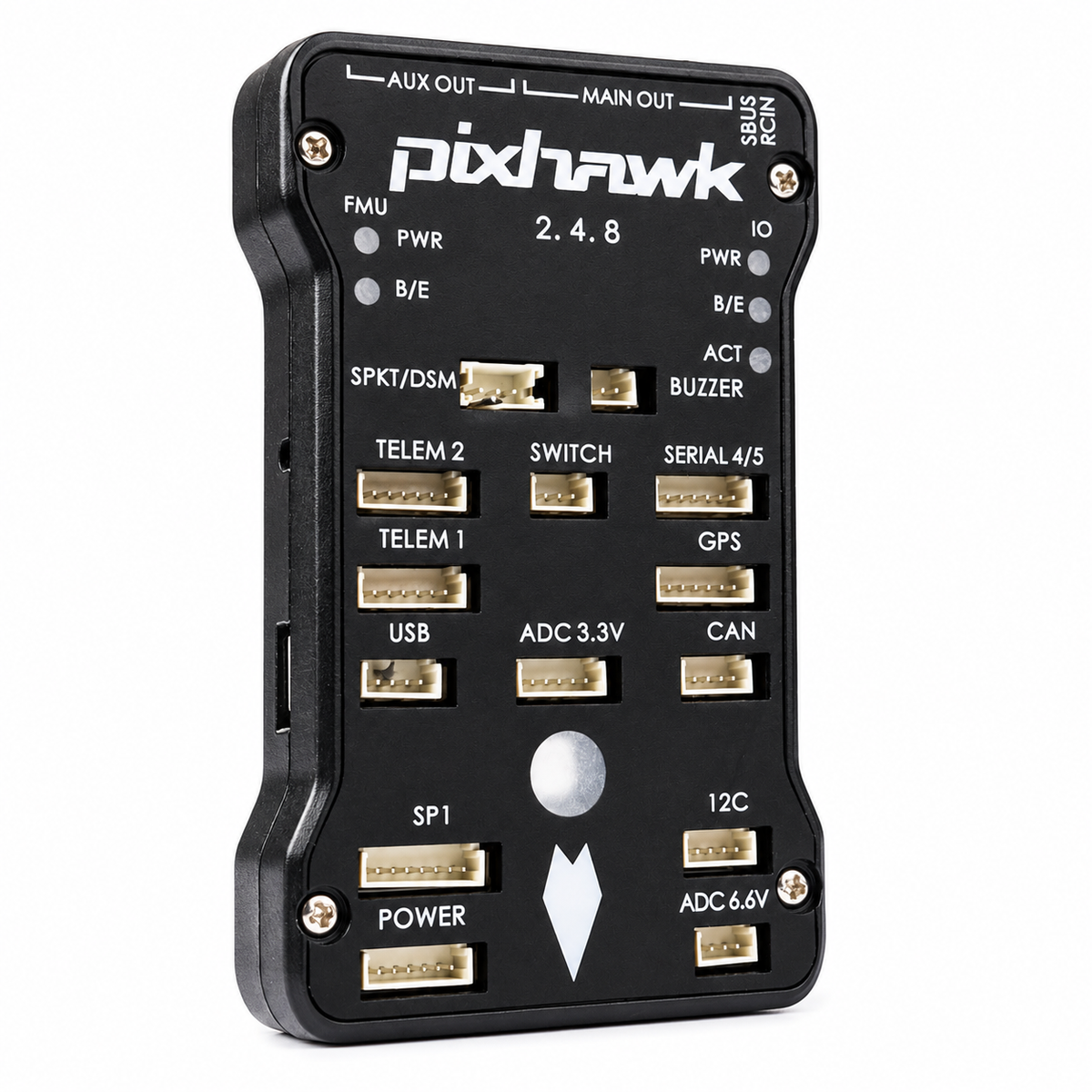

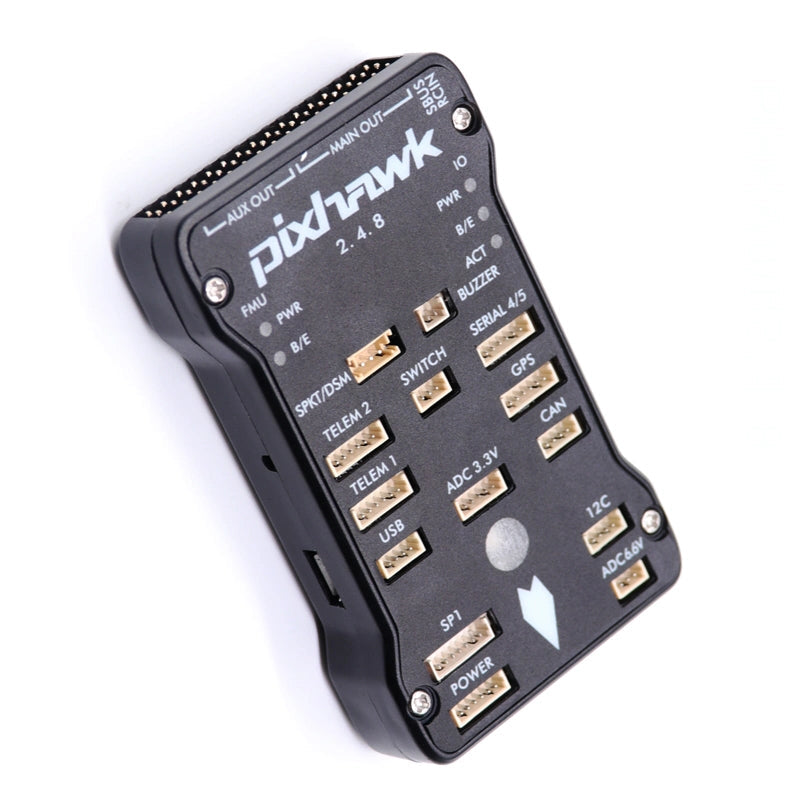

Pixhawk V2.4.8 Flight board:

The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system.
14 PWM / servo output.
Bus interface (UART, I2C, SPI, CAN).
The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
Provide automatic and manual modes.
Provide redundant power input and failover.
Multicolor LED lights.
Provide multi-tone buzzer Interface.
Micro SD recording flight data.

32bit STM32F427 Cortex M4 core with FPU.
168 MHz.
128 KB RAM.
2 MB Flash.
32-bit STM32F103 failsafe co-processor.

ST Micro L3GD20H 16 bit gyroscope.
ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
Invensense MPU 6000 3-axis accelerometer/gyroscope.
MEAS MS5607 barometer.

5x UART (serial ports), one high-power capable, 2x with HW flow control.
2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
Futaba S.BUS® compatible input and output.
PPM sum signal input.
RSSI (PWM or voltage) input.
3.3 and 6.6V ADC inputs.
Internal micro USB port and external micro USB port extension.

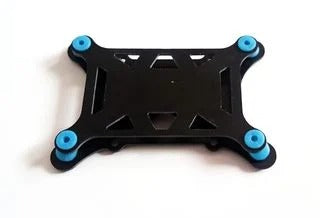

Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:

Color: Black
Material: Glass fiber
Suit for different open source flight controller, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
Packaging Details:
Package Weight: 24 gm.
Upper Frame size:  90 x 60 x 2 mm(LxWxH).
Lower Frame Size: 100 x 70 x 2 mm(LxWxH).
Shock absorber Height: 10 x 12 mm.(DxH).
NEO-M8N GPS Module:

Receiver type 72-channel Ublox M8 engine.
Galileo-ready E1B/C (NEO-M8N).
Nav. update rate1 Single GNSS: up to 18 HZ.
Concurrent GNSS: up to 10 Hz.
Position accuracy2 2.0 m CEP.
Acquisition2 Cold start: 26 s.
Aided starts: 2 s.
Reacquisition: 1.5 s.
Sensitivity2 Tracking & Nav: –167 dBm.
Cold start: –148 dBm.
Hot starts: –156 dBm.
Assistance AssistNow GNSS Online.
Assist Now GNSS Offline (up to 35 days)3.
Assist Now Autonomous (up to 6 days).
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q).
Crystal (NEO-M8M).
RTC crystal Built-In.
Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
lowest noise figure (NEO-M8N/Q).
Anti-jamming Active CW detection and removal.
Extra onboard SAW bandpass filter (NEO-M8N/Q).
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
Supported antennas Active and passive.
Odometer Travelled distance.
Data-logger For position, velocity, and time (NEO-M8N).

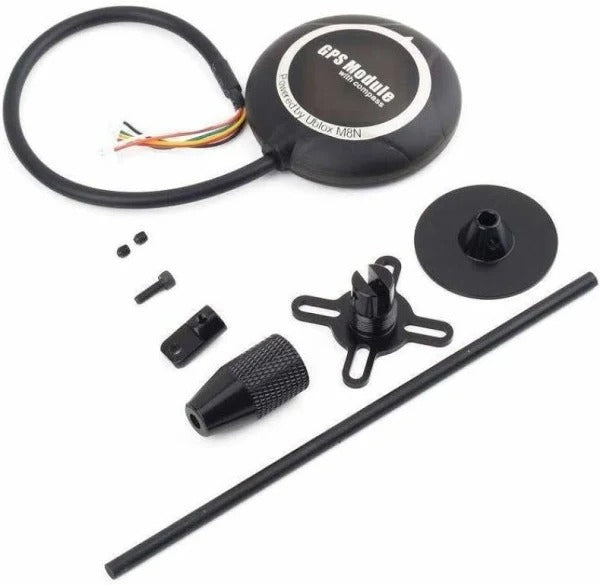

GPS Folding Base Antenna set:

Material: CNC Aluminum alloy, carbon glass fiber rod
Mounting rod diameter: 4mm
length of rod: 14 cm.
GPS plate diameter: 40 mm.
Base plate diameter: 35 mm
Mounting hole spacing: 16-35mm
Weight: 20g
Colour: Anodised black
Note: Adhesive Pad is not included.

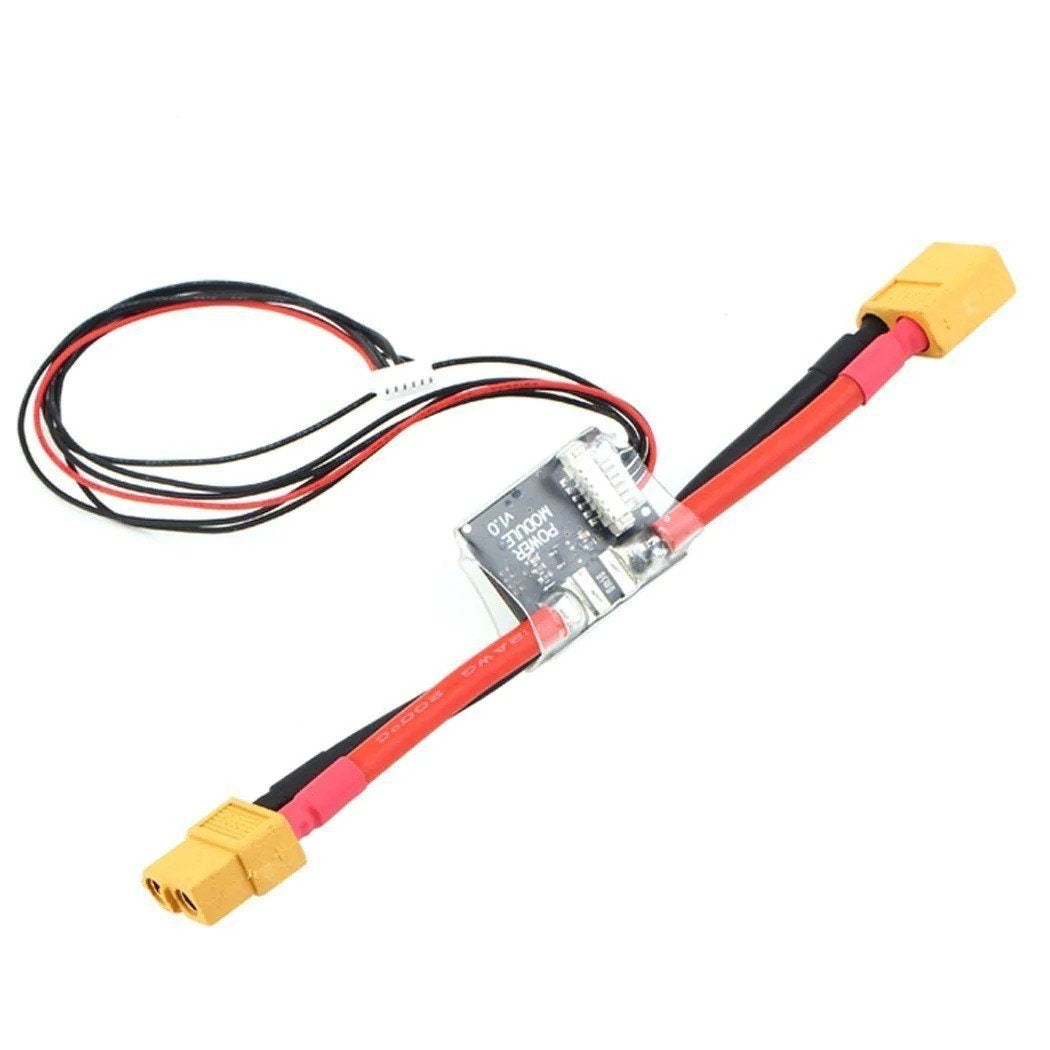

APM 2.5.2/2.6/2.8 Pixhawk Power Module:

Max input voltage: 28V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
Support 6S battery
