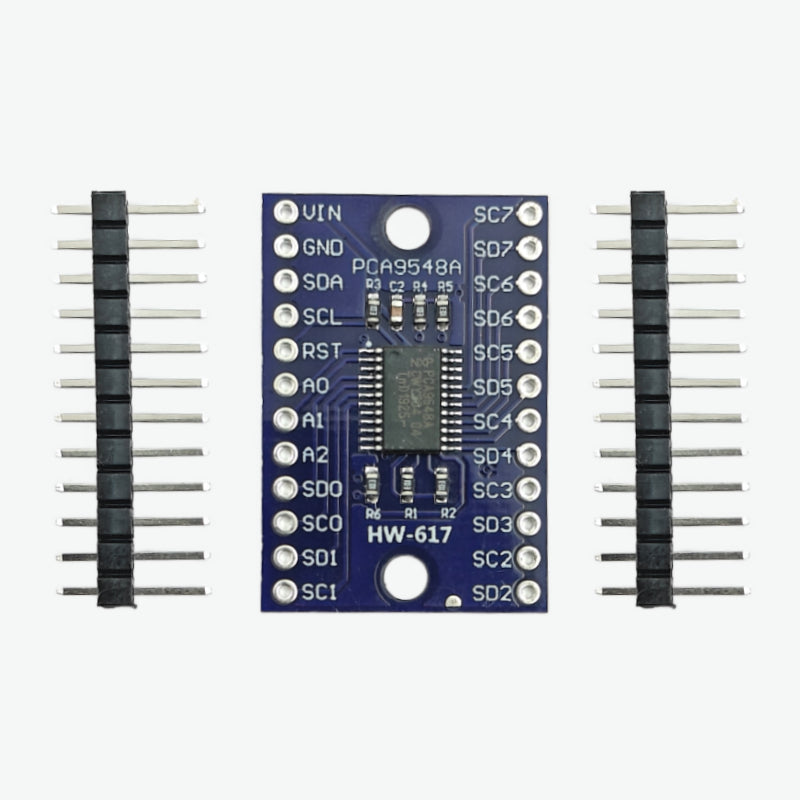

PCA9548A Low Voltage 8-Channel I2C Switch with Reset
Regular price
Rs. 99.00
Regular price
Sale price
Rs. 99.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Expand your I2C setup and connect devices with identical addresses using the PCA9548A Low Voltage 8-Channel I2C Switch with Reset. Its programmable switching connects an upstream I2C bus to eight downstream channels, making multi-sensor projects easier to manage.
Key Features
- Eight channels for bidirectional I2C communication.
- Programmable channel selection to resolve I2C slave address conflicts.
- I2C and SMBus compatibility.
- Active-low reset input for recovery from errors.
- Voltage-level translation across 1.8 V, 2.5 V, 3.3 V and 5 V buses.
- Channels deselected by default at power-up.
- Three hardware address pins allow up to eight PCA9548A devices on the same bus.
- Hot-insertion support, low on-resistance and low standby power consumption.
Technical Specifications
- Model: PCA9548A
- Operating supply voltage: 2.3 V to 5.5 V
- Clock frequency: 0 to 400 kHz
- Input tolerance: 5 V
- Downstream channels: 8
- Interface: I2C / SMBus
- Reset: Active-low
Applications
Suitable for multi-sensor systems with I2C address conflicts, factory automation, server and network equipment, and telecom switching equipment.
Package Contents
1 × PCA9548A Low Voltage 8-Channel I2C Switch with Reset.
