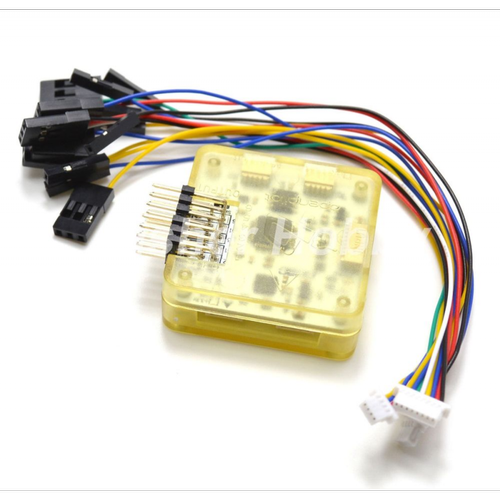

OpenPilot CC3D EVO Flight Controller

Rs. 1,999.00

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  1. 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  2. Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  3. Software support for Windows, Mac, and Linux.
  4. Direct high-speed USB support with no drivers required, a true plug and play device.
  5. Spektrum satellite receiver support.
  6. Futaba S-BUS hardware support.
  7. Innovative Flexi-port technology for superior port flexibility.
  8. 4Mbits onboard EEPROM for configuration storage.







Features :

CC3D EVO Hardware Features :
  1. WIth a function of being directly plugged into the satellite receiver(It needn’t conversion cable)
  2. Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
  3. 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  4. Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  5. Software support for Windows, Mac, and Linux.
  6. Direct high-speed USB support with no drivers required, a true plug and play device.
  7. Spektrum satellite receiver support.
  8. Futaba S-BUS hardware support.
  9. Innovative Flexi-port technology for superior port flexibility.
  10. 4Mbits onboard EEPROM for configuration storage.
Flexiport :
  • Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.
Superior user experience :
  1. OpenPilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally, for a high-end product, the hardware is complete; there is nothing to solder. The included RC  harness allows you to connect any standard PWM receiver.  All CopterControl boards are tested before shipping and come with bootloader already flashed.
  2. A standard mini USB  cable (not includes) is used to load the latest firmware and configure everything for your unique airframe. The OpenPilot project, whilst still young, it trying to make Open Source much more user-friendly.
  3. OpenPilot software is designed to be used by everybody! All major operating systems are supported and install packages are provided.
  4. The software is all Free software under the GPLv3 license and not only are you welcome to hack it, but we encourage it.
Sensors and Components :
  1. 3-axis Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,
  2. Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,  DSMJ, DSMX satellites, and Futaba S.Bus receivers.
  3. Simultaneous support for multiple receivers.
  4. ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
  5. MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
  6. FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under  development)
  7. 10 PWM outputs to servos or ESC’s, or for camera stabilization
  8. Camera stabilization supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.
  9. Onboard USB connectivity for easy configuration.
  10. USB and serial telemetry and configuration
  11. Supported by powerful OpenPilot GCS
  12. 4 Mbit onboard memory
  13. 3C Quaternion based complementary filter running at 500Hz
