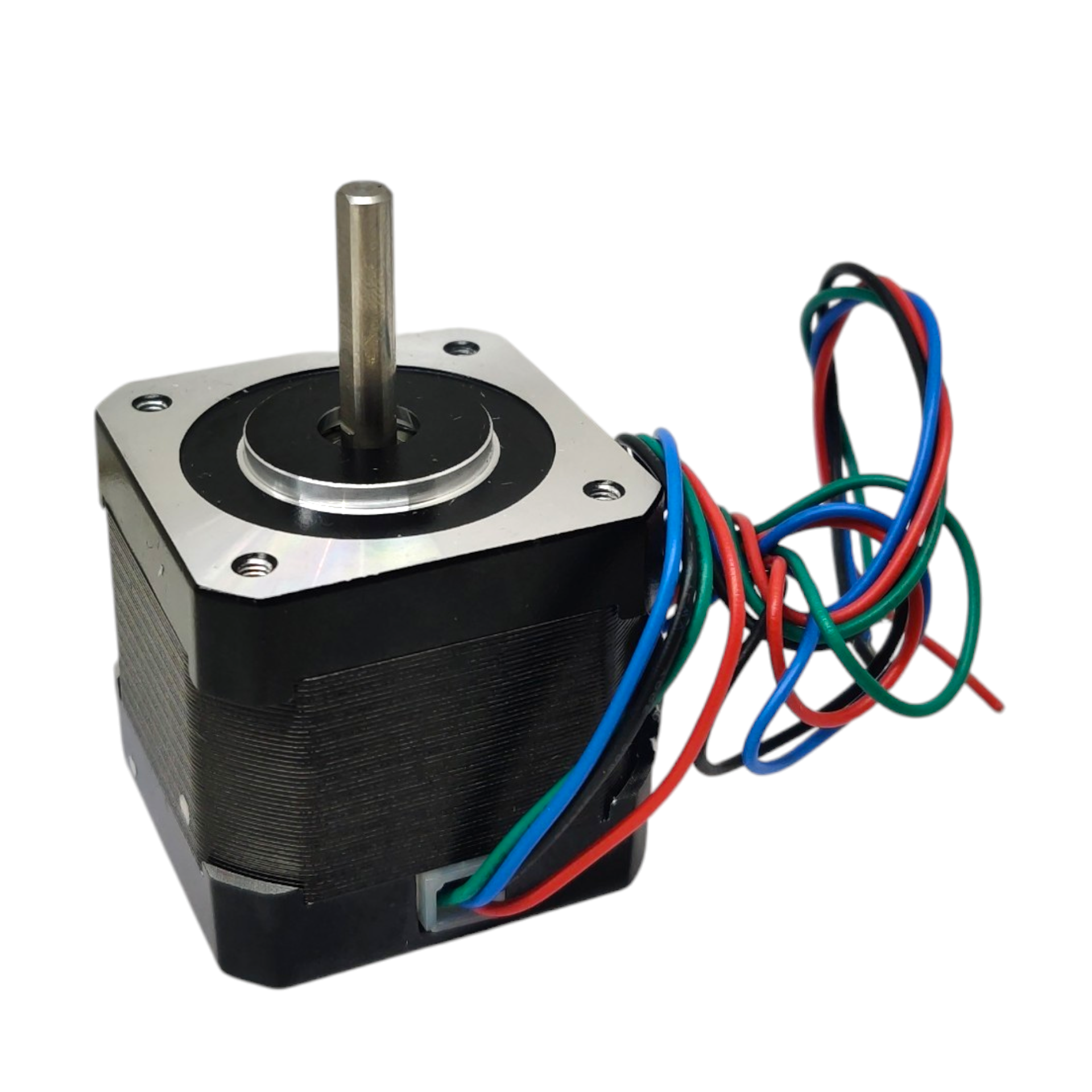

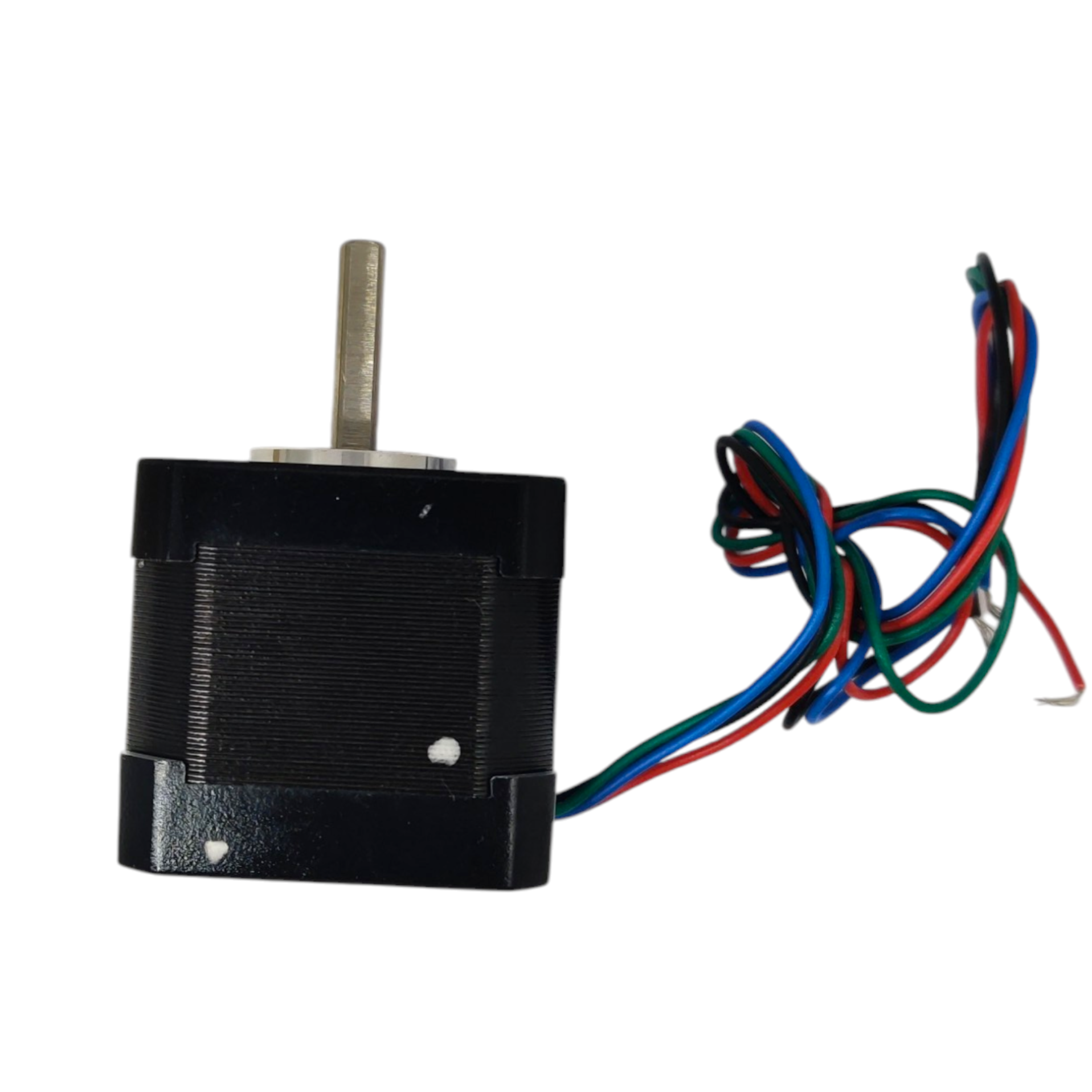

NEMA 17 Stepper Motor NEMA17 4.2Kgcm Torque With D Shaft
NEMA 17 Stepper Motor NEMA17 4.2Kgcm Torque With D Shaft
Regular price
Rs. 799.00
Regular price
Sale price
Rs. 799.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
- Step Angle : 1.8 Degree
- Number of Phase: 2
- Rated Voltage: 3.2V
- Rated Current: 1.4A
- Resistance per phase: 2E
- Inductance per phase: 2.8mH
- Holding Torque: 4.2kgcm
- Weight:300 grams
- Length without shaft: 40mm
- Shaft Length: 24mm
- Shaft Type : D-shaft
- Width: 42.3mm
Wiring Details:
- A+ = Blue
- A- = Red
- B+ = Black
- B- = Green
