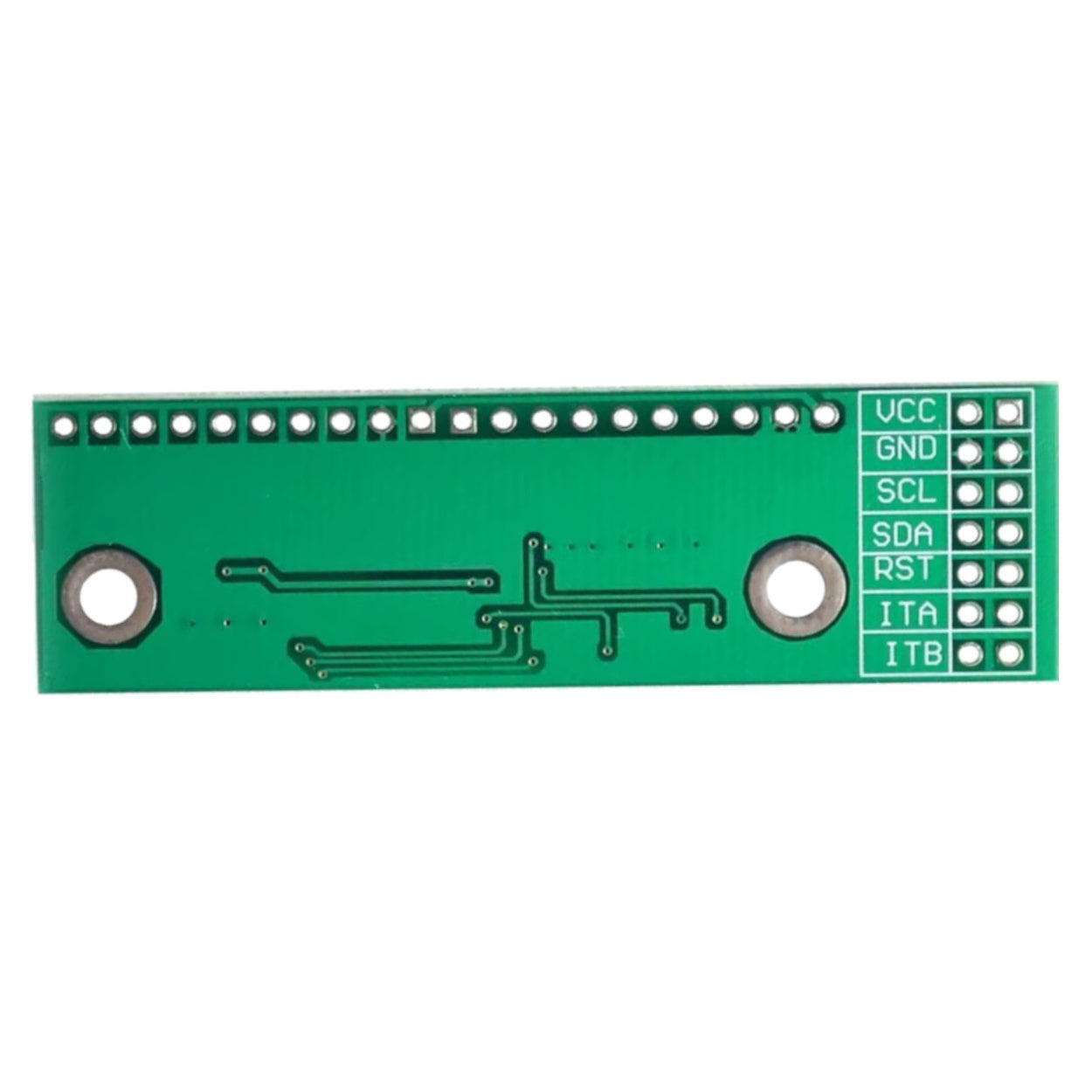

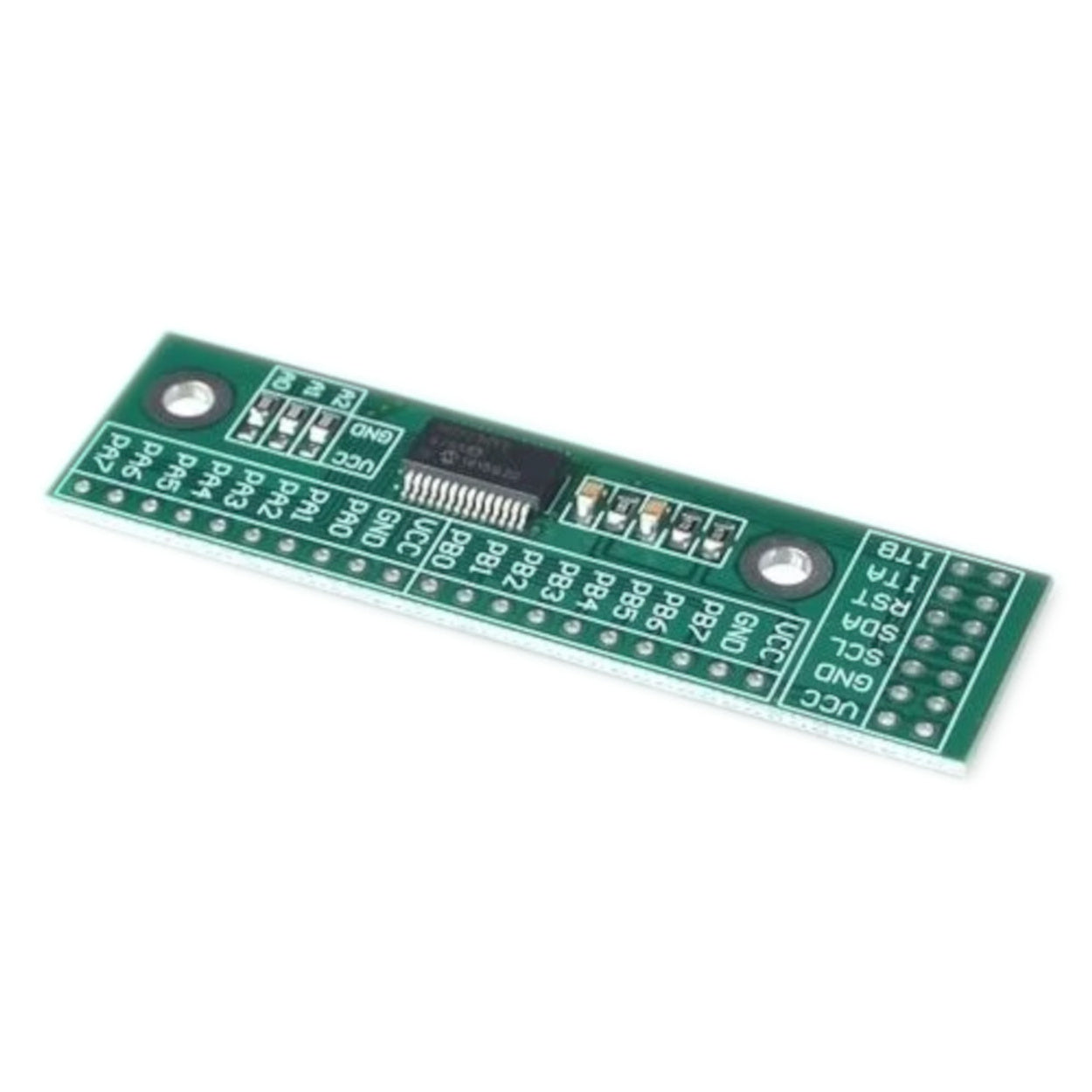

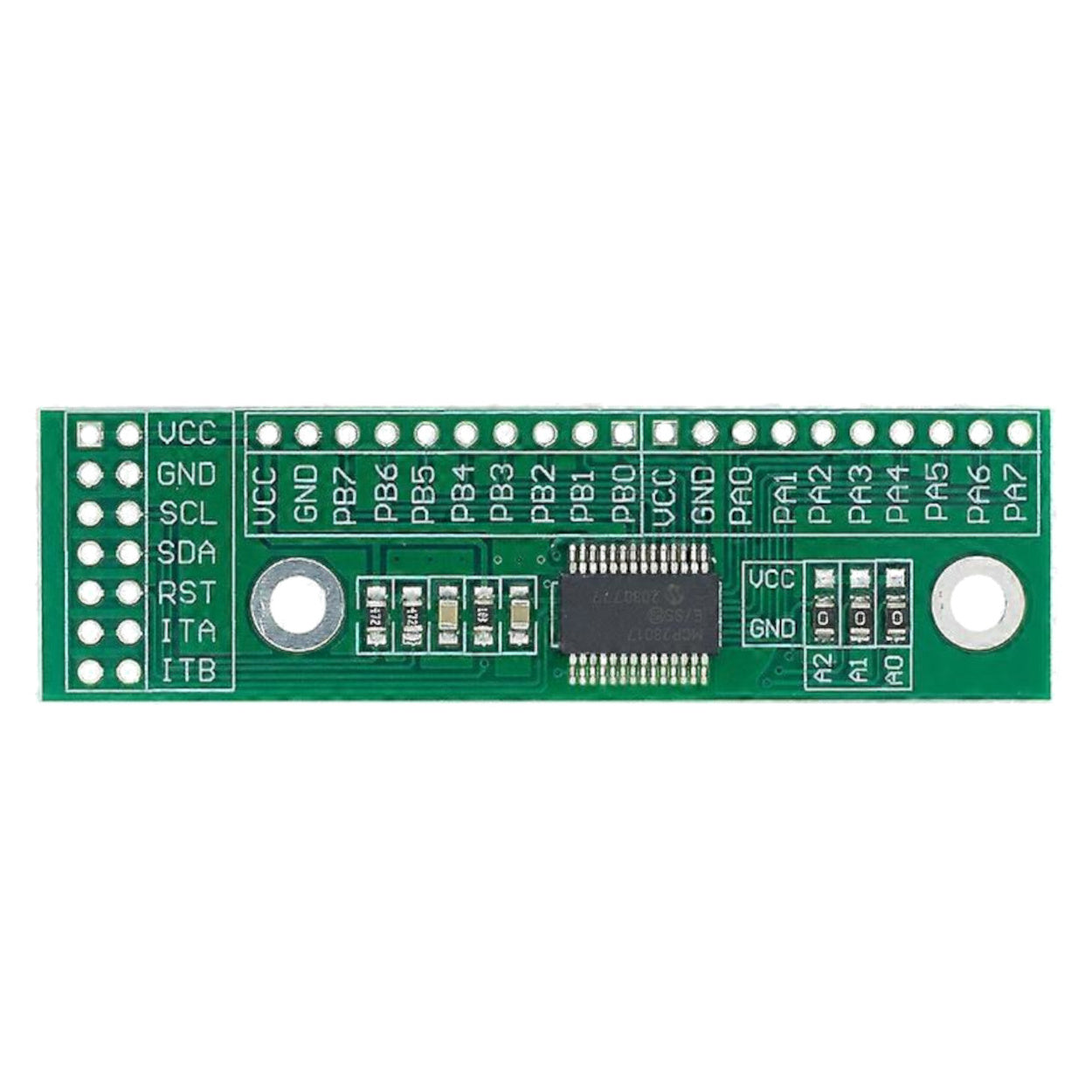

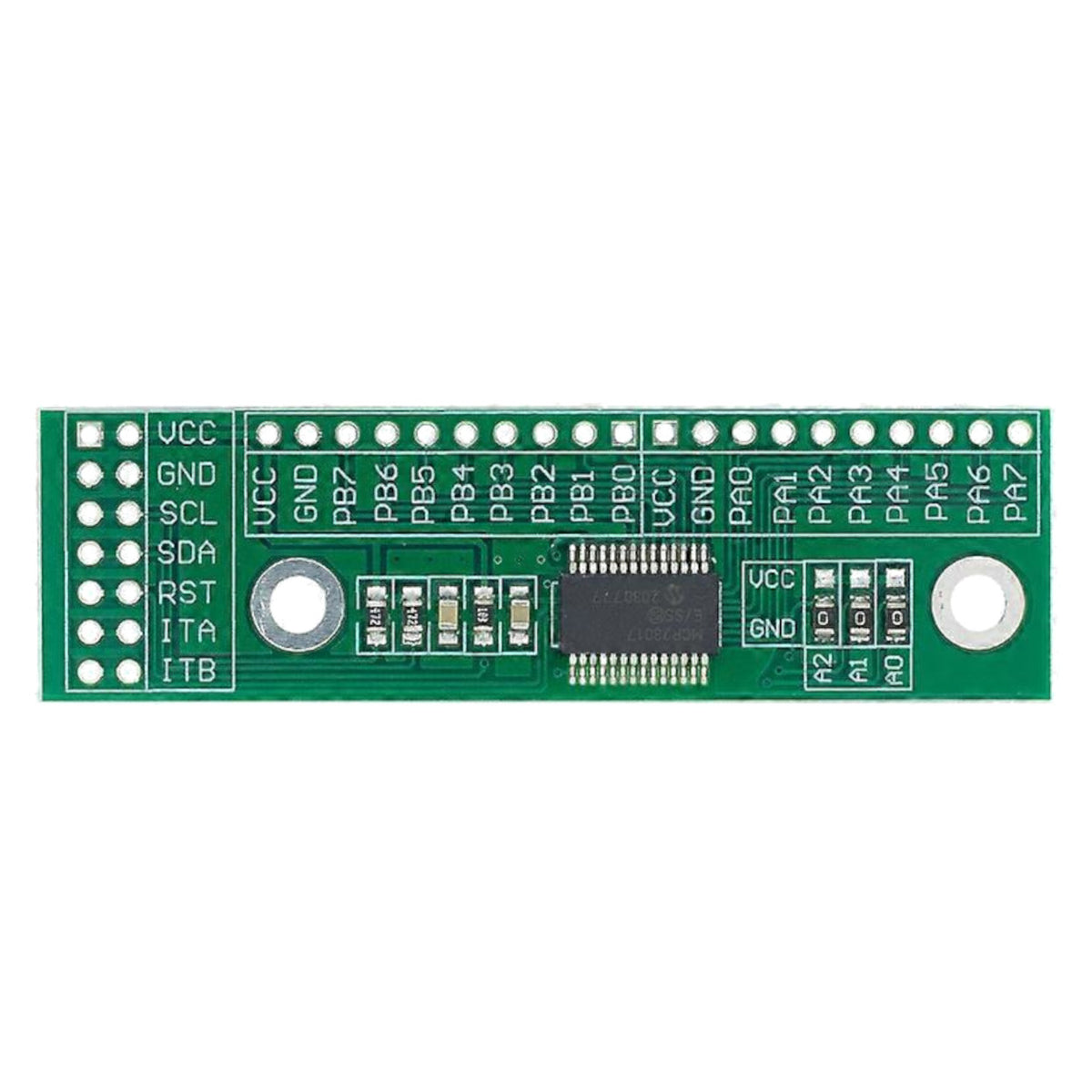

MCP23017 I2C Serial Interface Bidirectional 16 bit I/O Expander Serial Module

MCP23017 Serial Interface Module provides a 16-bit general-purpose parallel I/O expansion for the I2C bus. The MCP23017 consists of multiple 8-bit configuration registers for input, output, and polarity selection. The system master can enable the I/O as either inputs or outputs by writing I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the input port register can be inverted with the polarity inversion register. Add another 16 pins to your microcontroller using an MCP23017 port expander. The MCP23017 uses two i2c pins (these can be shared with other i2c devices), and in exchange gives you 16 general-purpose pins.

Features:

• 16-Bit I/O Expansion-Offers 16 additional GPIO pins.
• Compatible with both I²C and SPI communication protocols.
• Configurable interrupt pins for edge or level-triggered inputs.
• Supports I2C speeds up to 1.7 MHz and SPI speeds up to 10 MHz.
• Each pin can be individually configured as input or output.

Specifications

• Product: I/O Expansion Module
• Model: MCP23017
• Operating Voltage: 1.8V to 5.5V
• Standby current: 1 µA
• Communication Interface:
• I2C: up to 1.7 MHz
• SPI: up to 10 MHz
• Number of I/O Pins: 16
• Interrupt Pins: 2
• Operating Temperature: -40°C to +125°C

Applications:

• Ideal for expanding I/O in prototypes and development boards.
• Increasing GPIO availability for complex embedded systems.
• Control multiple actuators and sensors in robotic projects
• Additional I/O for industrial automation systems.

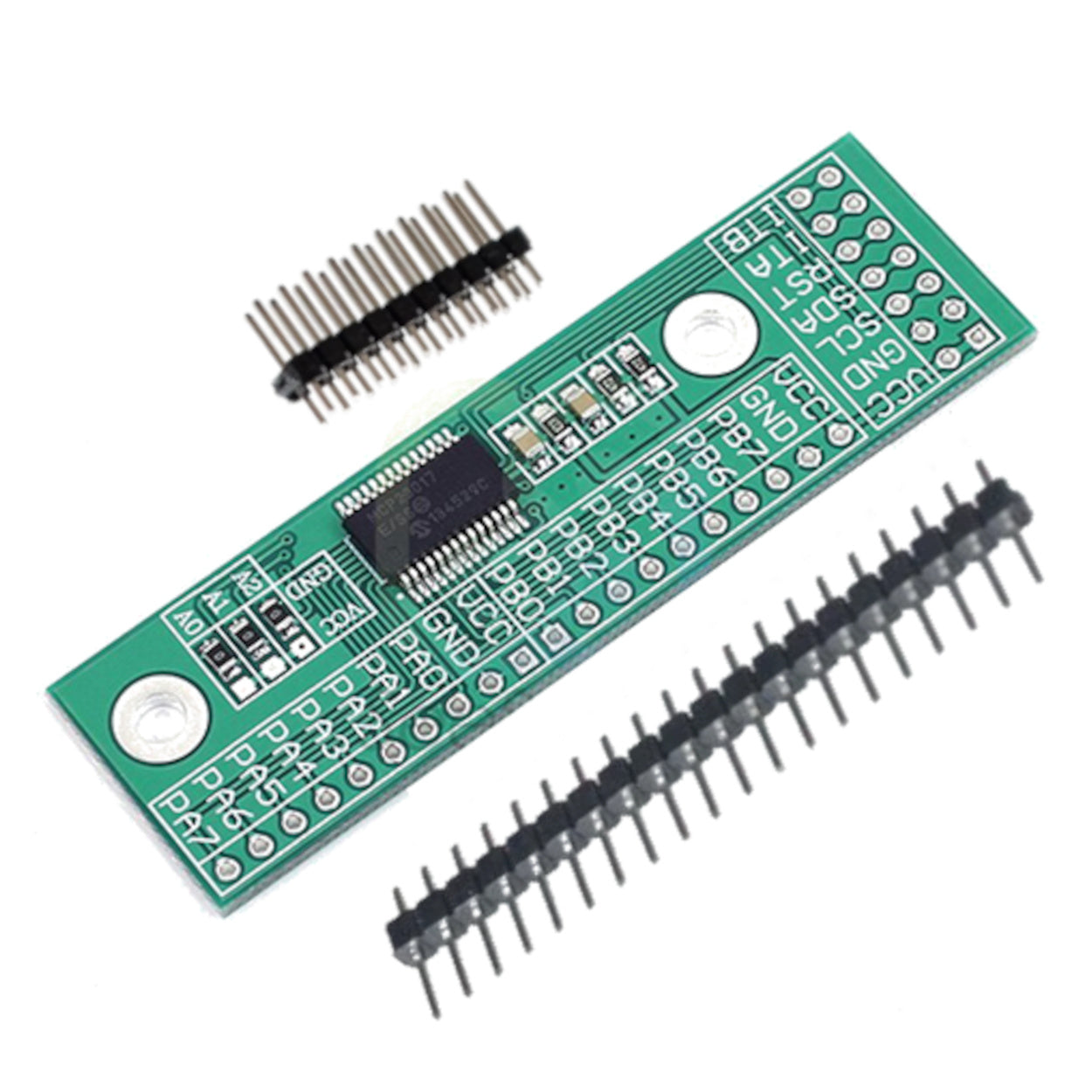

Package Includes:

• 1 x MCP23017 IO Expander Serial Module With I2C Serial Interface
• 1 x 20 Pin Header
• 1 x 2*7 Pin Header
