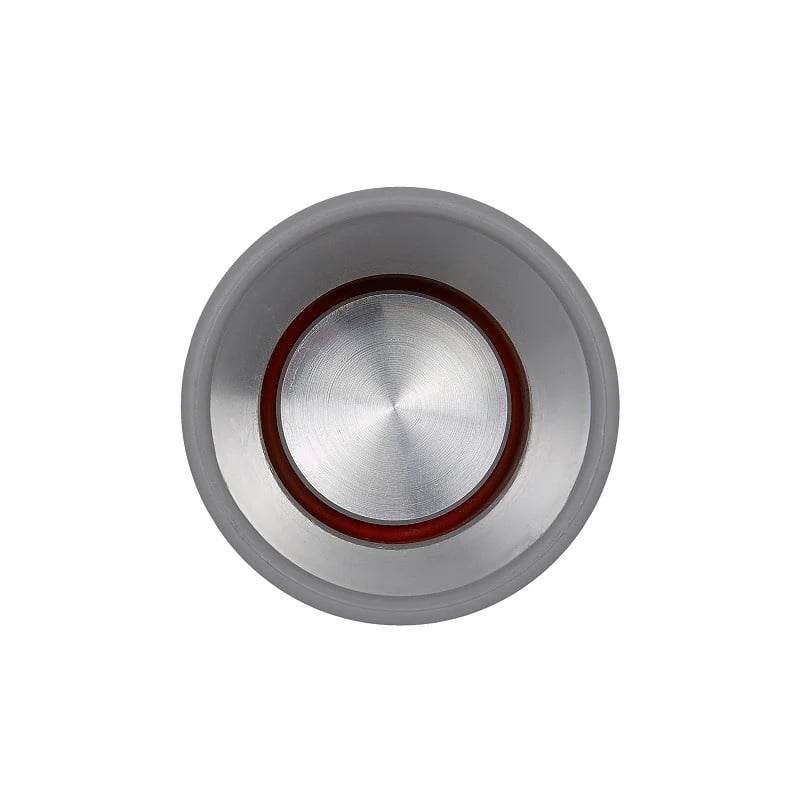

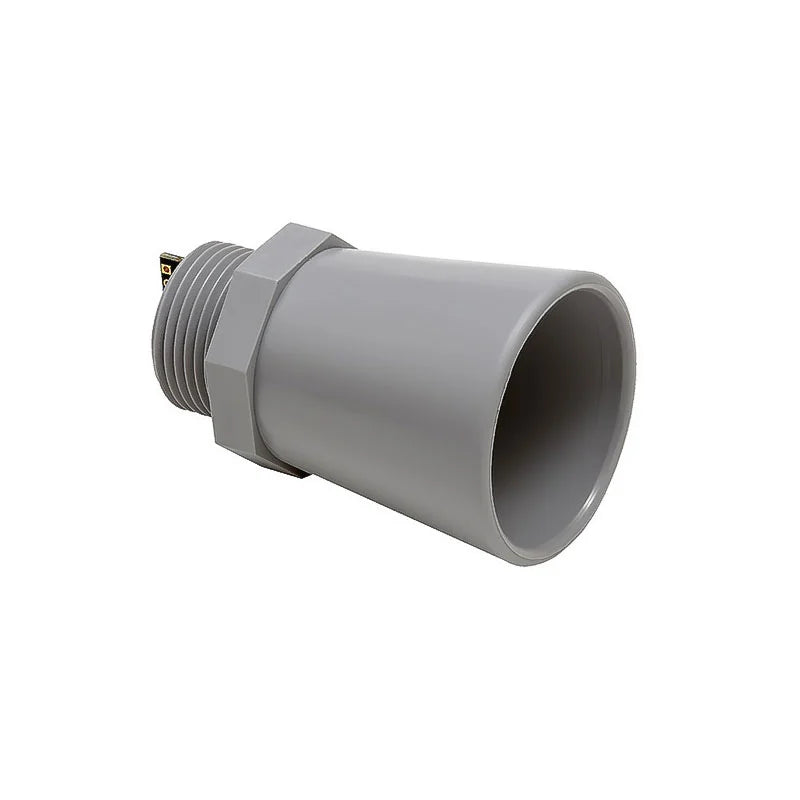

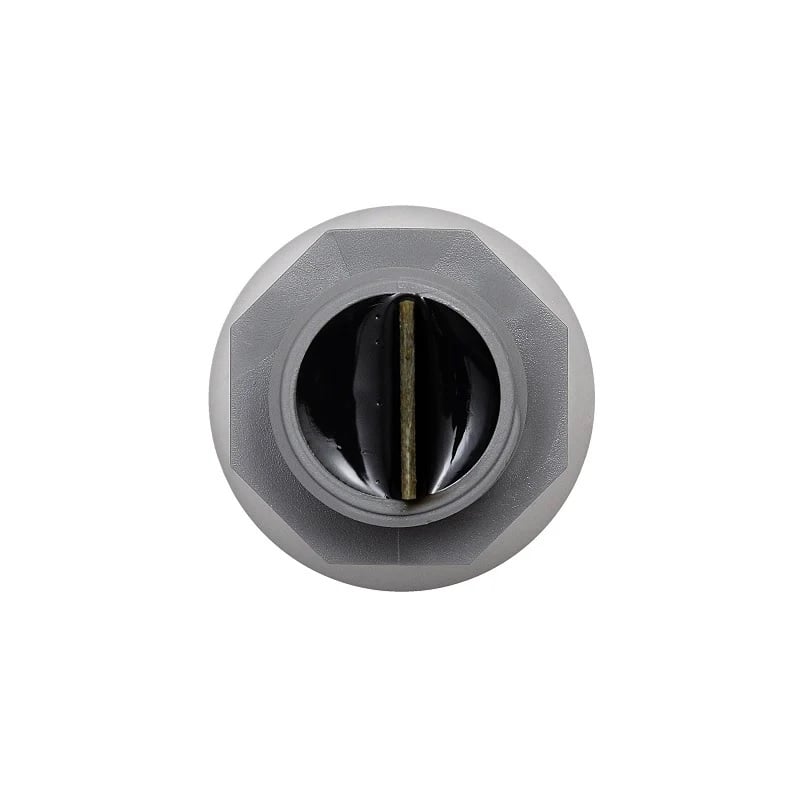

MB7366 HRXL Max Sonar WRL Ultrasonic Sensor High Performance Maxbotix

1. Operating Voltage: 2.7-5 V
2. Sonar Sensing Range: 50-1000 cm
3. Max. Sensing Range: 1000 cm
4. Read Rate: 6 Hz
5. Frequency: 42 kHz
6. Weight:50 gm
7. Internal temperature compensation
8. Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
9. Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
10. Small, lightweight module
11. Designed for easy integration into your project or product
12. Real-time automatic calibration (voltage, humidity, and ambient noise)
13. Firmware filtering for excellent noise tolerance and clutter rejection
14. Weather-resistant (IP67)
15. Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
16. The long, narrow detection zone
17. RS232 Serial Output
18. Our longest range, high-resolution outdoor, weather-resistant, ultrasonic sensor
19. The maximum range of 10 meters (394 inches)

Note:

• 1. This sensor is not made to work for underwater/submerged operations.
• 2. We would not initiate the return/refund against properly working Sensor Module, once it’s been soldered.

Features :

1. Internal temperature compensation
2. Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
3. Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
4. Small, lightweight module
5. Designed for easy integration into your project or product
6. Real-time automatic calibration (voltage, humidity, and ambient noise)
7. Firmware filtering for excellent noise tolerance and clutter rejection
8. Weather-resistant (IP67)
9. Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
10. The long, narrow detection zone
11. RS232 Serial Output
12. Our longest range, high-resolution outdoor, weather-resistant, ultrasonic sensor
13. The maximum range of 10 meters (394 inches)
