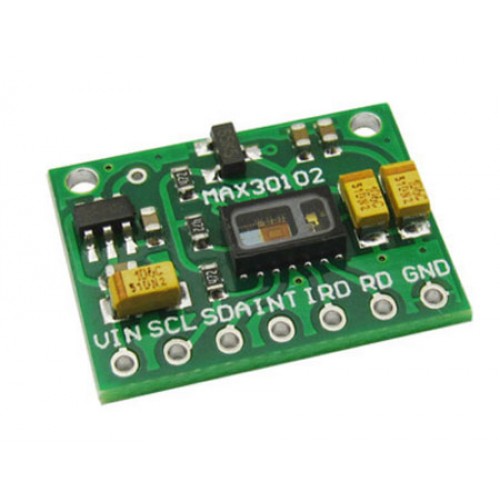

MAX30102 Pulse Oximeter Heart Rate Sensor Module

• Optical sensor: IR and red LED combined with a photodetector

• Measures absorbance of pulsing blood

• I2C interface plus INT pin

• 3.3V power supply complete pulse oximeter and heart rate sensor solution, simplifies design, integrated LEDs, photo sensor, and

• high-performance analog front

• Ultra low power operation increases battery life for wearable devices

The MAX30102 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

The MAX30102 has an on-chip temperature sensor for calibrating the temperature dependence of the SpO2 subsystem. The temperature sensor has an inherent resolution of 0.0625°C.

Applications

Wearable Devices
Fitness Assistant Devices
Smartphones
Tablets
Benefits and Features

• Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution

• Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module

• Integrated Cover Glass for Optimal, Robust Performance

• Ultra-Low Power Operation for Mobile Devices

• Programmable Sample Rate and LED Current for Power Savings

• Low-Power Heart-Rate Monitor (< 1mW)

• Ultra-Low Shutdown Current (0.7µA, typ)

• Fast Data Output Capability

• High Sample Rates

• Robust Motion Artifact Resilience

• High SNR

• -40°C to +85°C Operating Temperature Range
