LSM6DS3 LSM6DS3 Accelerometer Gyro Embedded Digital Temperature Sensor Module SPI IIC I2C Interface Module 8kb FIFO Buffer 5V
LSM6DS3 LSM6DS3 Accelerometer Gyro Embedded Digital Temperature Sensor Module SPI IIC I2C Interface Module 8kb FIFO Buffer 5V
Regular price
Rs. 199.00
Regular price
Sale price
Rs. 199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Feature:
- Power consumption: 0.9 mA combination of normal mode and 1.25 mA combination of high performance mode up to 1.6 kHz.
- Accelerometer and gyroscope low power experience
- Maximum supply voltage 3.3 Volts
- Measurement accuracy ±125 DPS
- Measuring range 2 - 16 g, ±125 - ±2000 DPS
- Smart FIFO up to 8 bytes based on feature set
- Analog supply voltage: 1.71 V to 5 V
- SPI serial interface with main processor data synchronization
- Embedded temperature sensor

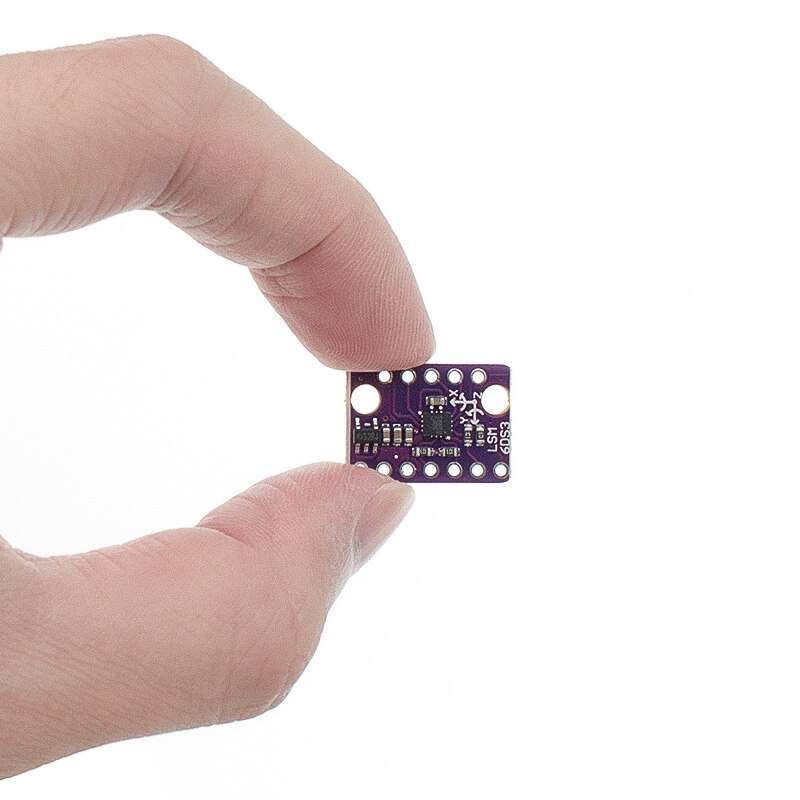

- Module size 13 mm * 18mm

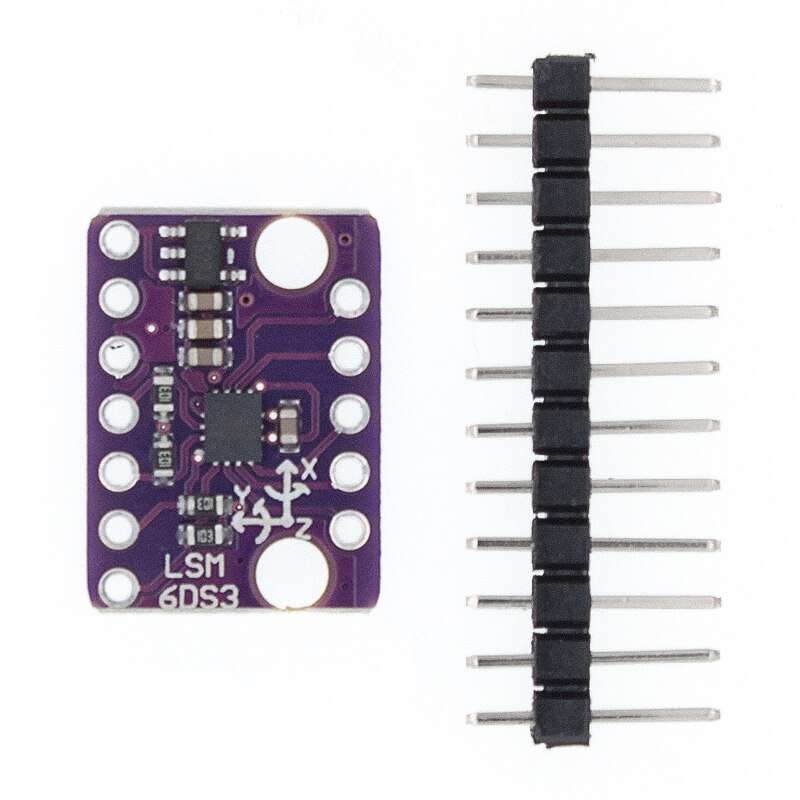

The lsm6ds3 is an accelerometer and a huge 8kb FIFO buffer and an embedded processing interrupt function for the gyro sensor, specifically for the mobile phone market. Due to the ability and we have just created this small breakthrough board lsm6ds3 low cost! Each lsm6ds3 breakthrough design becomes super flexible and configurable specifically for many applications. With lsm6ds3 breakout, you will be able to detect the impact, tilt, movement, faucet, step, and even read the temperature!
lsm6ds3 can read 6.7ks / s gyro accelerometer data and data on 1.7ks / s more accurate motion detection. As mentioned above, the break also has a buffering capability of up to 8KB between the data read, the host of the other sensors, the drive interrupt pin thanks to the lsm6ds3 built-in FIFO.

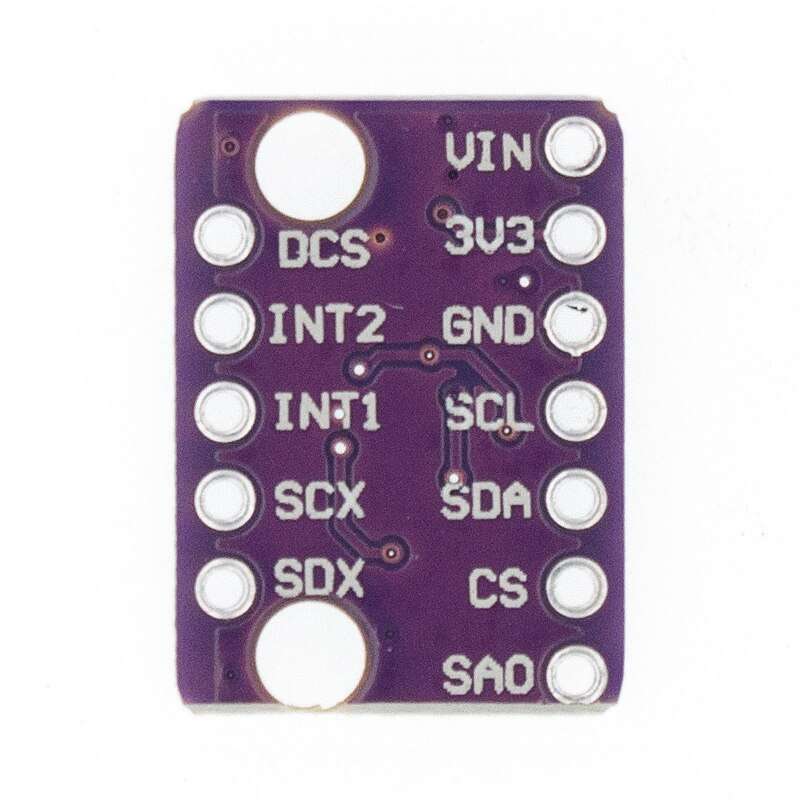

Each pin has been broken in the lsm6ds3, side of the board, power and I2C functions while the other side of the motion pin controls the SPI function and interrupt the output. Keep in mind that lsm6ds3 is a 3.3V device that provides a voltage greater than ~ 3.6v to permanently damage the IC. Any 5V operating platform requires a logic level shifter.
