LM75 Temperature Sensor
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
The device can be used as a stand-alone temperature controller at power-up;
Separate Open-Drain OS Output Operates as Interrupt or Comparator/Thermostat Input
Register Readback Capability
Power-Up Defaults Permit Stand-Alone Operation as a Thermostat
Low Operating Supply Current 250µA (typ), 1mA (max)
4µA (typ) Shutdown Mode Minimizes Power Consumption
--

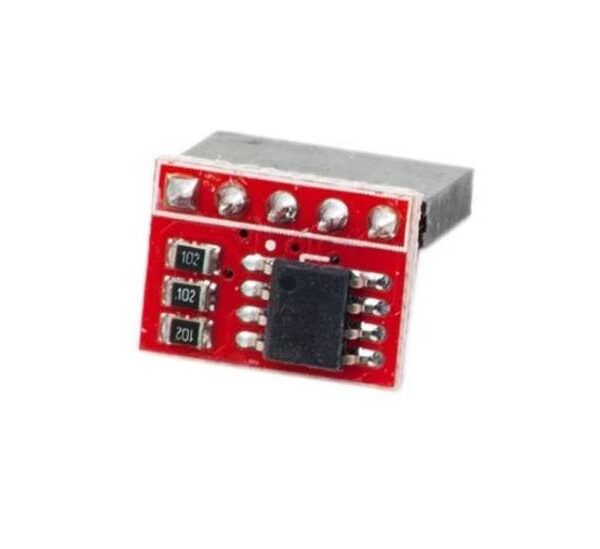

The LM75A or B is a high-speed I2C interface temperature sensor that converts temperature directly to digital signals from -55°C to +125°C and achieves an accuracy of 0.125°C. The MCU can read directly from the I2C bus.
The data in the internal registers and the four data registers can be operated by I2C to set different operating modes.
The LM75A has three optional logical address pins, so that 8 devices can be connected simultaneously on the same bus without An address conflict has occurred.
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
